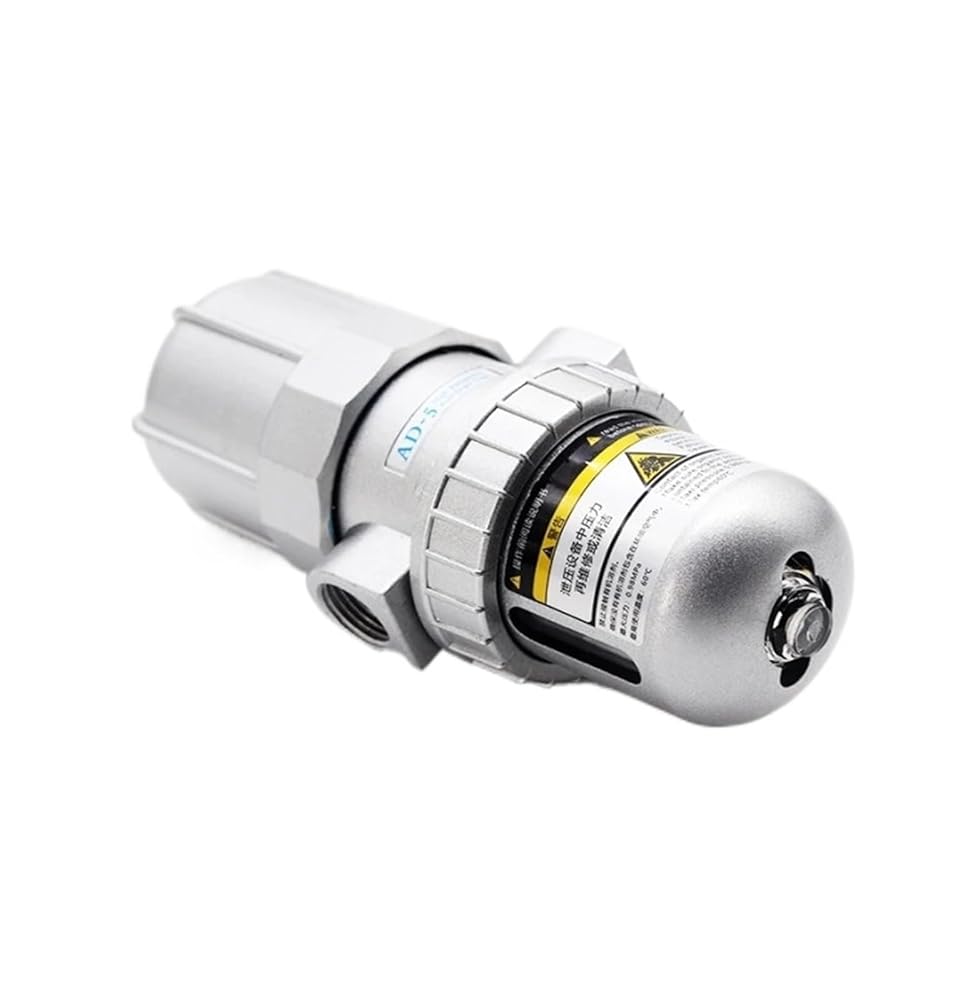

Filter, Regulator & Lubricator Combos
Installation Instructions:
1. During installation, press the arrow to confirm the direction of the water inlet and outlet. The drainage must be kept in a vertical direction (the letter on the valve body is positive). After installation, it can be used without electricity.
2. If the water volume is particularly large, loosen the regulating valve counterclockwise to increase the water volume, and then tighten the nut after the adjustment is completed.
3. If there is no drainage, loosen the regulating valve counterclockwise to allow the air pressure to flush away the dirt, and then tighten the regulating valve.
4. If the environment is too dirty, the filter needs to be cleaned regularly. Steps for cleaning the filter:
1) First close the water inlet valve and make sure there is no pressure inside
2) Unscrew the top cover, take out the top cover filter for cleaning, and lock the top cover when putting it back
3) Unscrew the lower cover, take out the filter, clean it, and then put it back in order.
5. Connect 8 pipes from the drain outlet to the sewage pipe. You can also remove the drain outlet joint and use 1/2 pipe to enter the sewage system.
==========
Type: Actuator
Model: DN40-300
Origin: Mainland China
