Product Description
1. Loosen the self-venting drain and drain the water from the bowl into a container.
2. Tighten the drain hose.
3. Use the filler ball to fill the filter with fuel.
4. Start the engine and check to make sure there are no leaks.

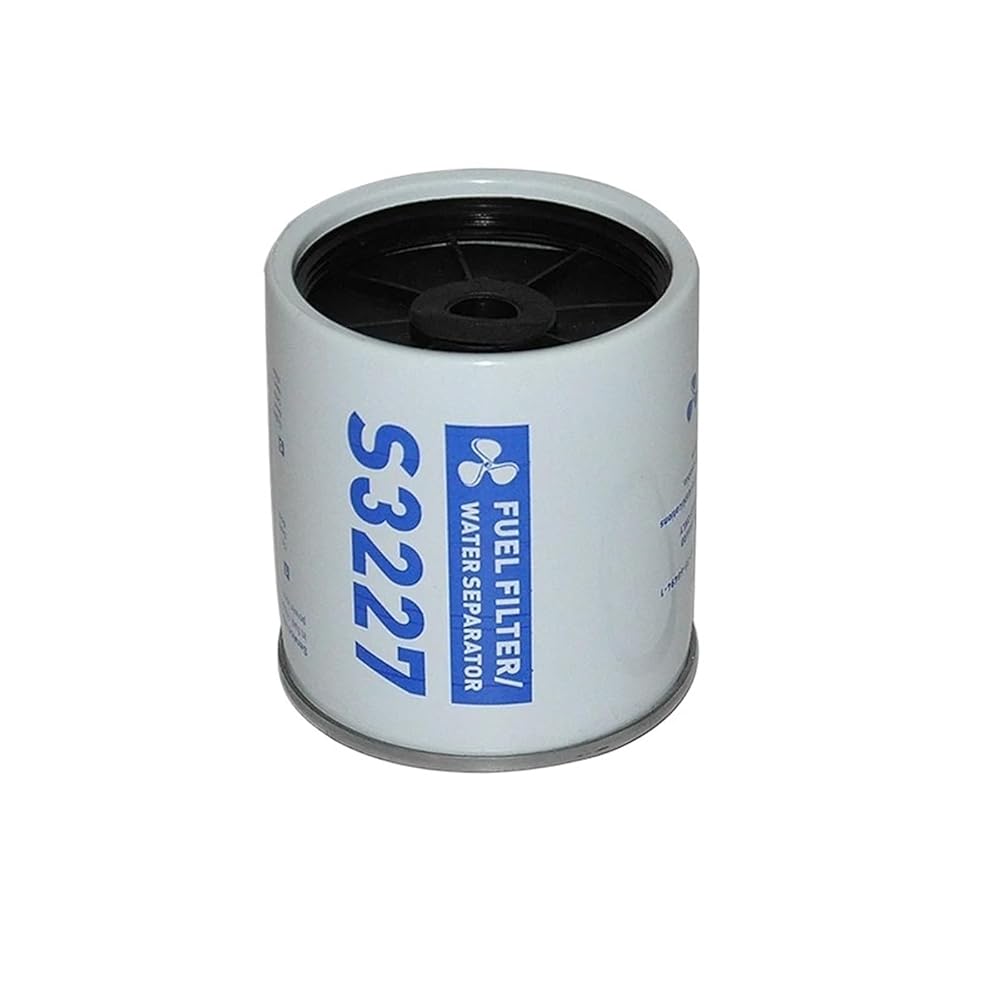

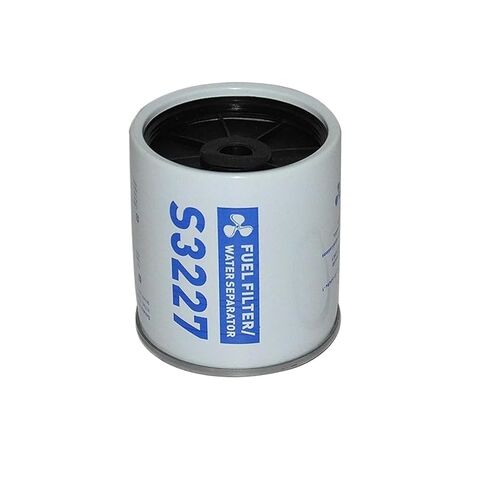

Model: S3227
replace
1. Loosen the self-venting drain and drain the waste liquid into a container.
2. Remove the filter with the bowl attached from the mounting bracket.
3. Remove the filter bowl from the strainer and clean the O-ring seal on the filter bowl. The filter bowl is reusable* Do not discard.
4. Lubricate the O-ring with oil or grease and install on the bowl.
5. Install the bowl onto the one and tighten it finger tight.
6. Lubricate the filter top seal with oil or grease.
7. Fill the filter/cup assembly with clean fuel and install it onto the mounting bracket, finger tight.
8. Start the engine and check to make sure there are no leaks.
Package Contents:
Type 1: 1Pc* filter element
Type 2: 1 piece* Filter element with bowl
Type 3: 1*oil-water separator, 2*screws
Note: Shooting light and different monitors may cause the color of the item in the picture slightly different from the actual item.
The measurement error is +/- 1-3cm.

Other Part Number: S3227
Country/Region of Manufacture: China
Interchange Part Number: S3227
Material Type: Aluminum
Product weight: 1.2KG
Product height: 100mm
Item width: 101mm
Product length: 235mm
Manufacturer Part Number: S3227
