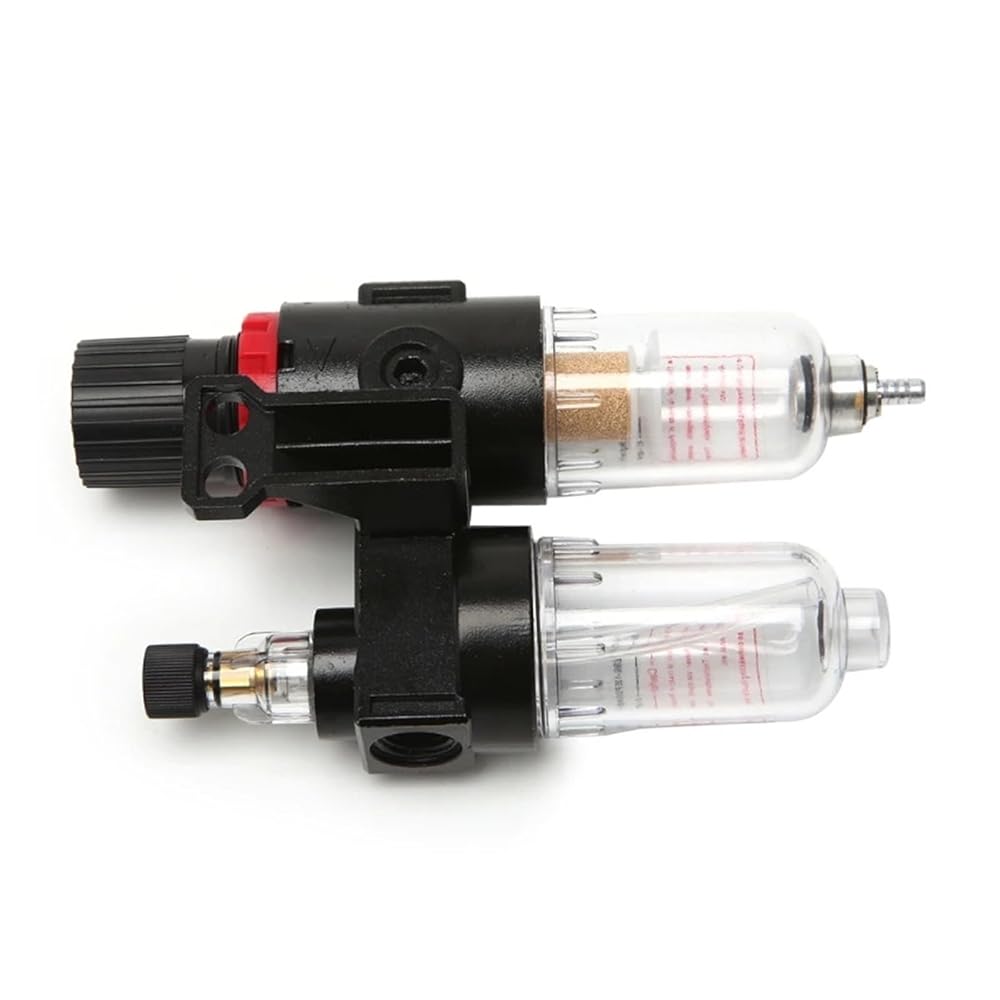

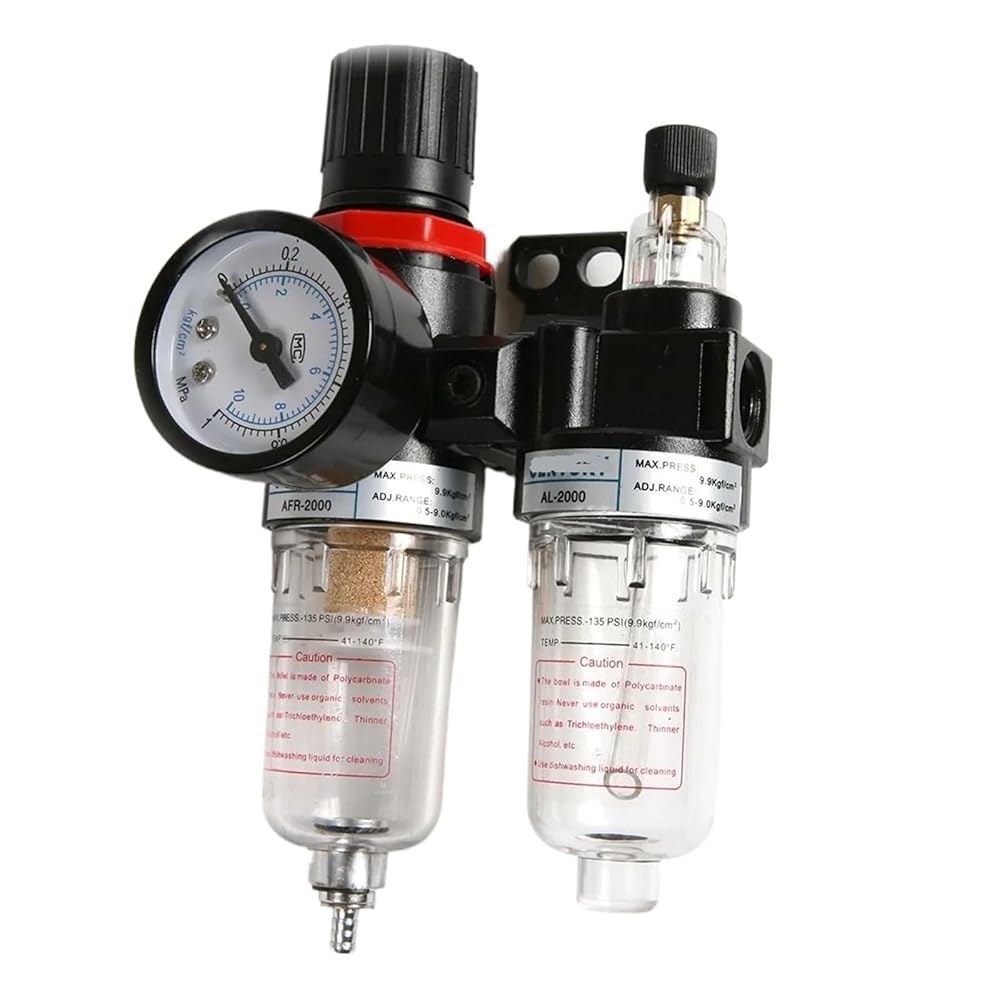

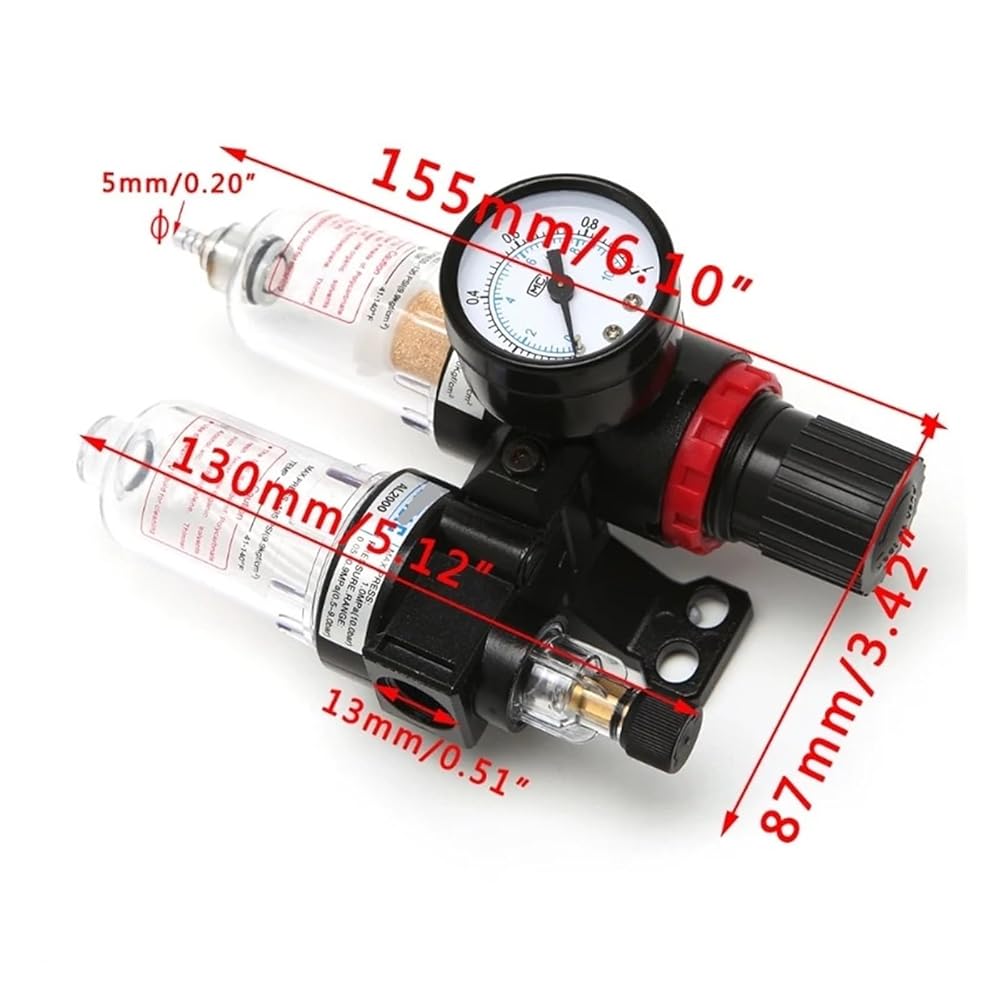

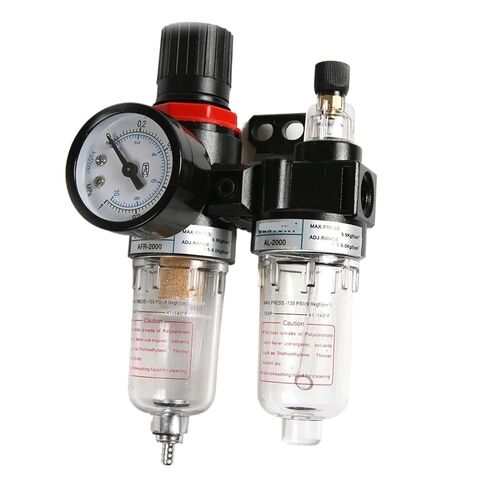

Filter, Regulator & Lubricator Combos
feature:
Application scenarios: air compressors, pneumatic tools, air line connection installation, effectively filtering moisture in the air.
For controlling pressure elements and pressure buildup.
It utilizes the pressure of the intake throttle valve through force balance and overflow regulation.
To change the air line pressure, first pull out the handwheel, then adjust the plastic handwheel to obtain any pressure within the specified range.
Turn clockwise to increase pressure, counterclockwise to decrease pressure.
Specification:
Material: Metal, Plastic
Working fluid: Air
Connecting pipe inner diameter: 1/4"
Filter accuracy: 40m
Adjustable pressure range: 0.5-8.5Kgf/cm2
Maximum adjustable pressure: 9.9kgf/cm2
Pressure range: 0~1.0MPa (manual drainage: 0-9.5kgf/cm2, differential pressure drainage: 1.5-9.5kgf/cm2)
Working temperature range: 5-60 degrees
Pressure gauge caliber: G1/8
Water Filter Capacity: 15cc
Oil supply cup capacity: 25cc
Package Included:
1x Air Filter Regulator Moisture Trap Compressor
==========
Type: Filter
Origin: Mainland China
