مميزات خاصة

【High precision measurement】:With micrometer level resolution, small measurement errors, and the ability to accurately capture small displacement changes, it meets the stringent requirements of precision machining and high-precision positioning
【Wide range adaptation】:The range covers from a few millimeters to several meters, and can be flexibly selected according to different application scenarios, balancing the needs of short stroke precision measurement and long stroke displacement detection
【Multi scenario universality】:Widely used in fields such as CNC machine tools, automated production lines, 3C electronic manufacturing, automotive parts testing, surveying instruments, etc., it is the core component for achieving intelligent manufacturing and precise control
【Diversified signal output】:Supports multiple output modes and seamlessly integrates with mainstream industrial control equipment such as PLC, CNC systems, servo drives, etc
【Industrial grade durability】:Adopting a metal shell and sealed structure, it has the ability to resist vibration, impact, and electromagnetic interference

وصف

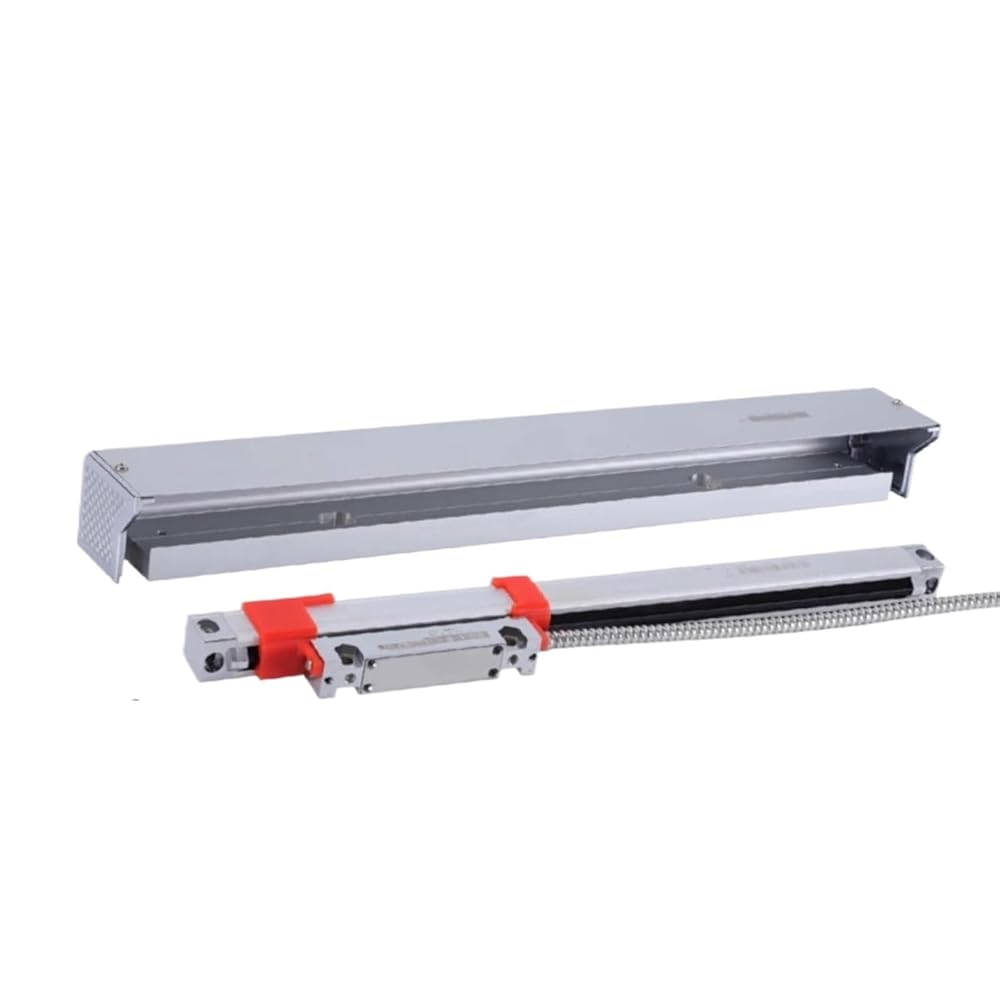

5μm Linear Sensors, 16*16mm 0.005mm 30/110mm Optical Grating Ruler Optical Encoder Ruler, 1pc
Available Measrus Length: 30mm-360mm
Cross Section: 16mm X 16mm
Accuracy: +/- 3, 5, 10 (20 degree, 680 F 1000mm)
Reference Point: one unit per 50mm
Max of Measuring speed: 60m/min
Protection level: IP55
Resolution: 1um(0.001mm)
Output signal: TTL
Cable standard: 2 meters
Bar Pitch: 0.02mm
Power: +5V±5%, 80mA
Operating temperature:0-45 egree centigrade
Connetor: 9 Pins
Battery Included : No
High-concerned chemical : None
Model Number : KA-200 Mini
Item name : linear scale linear ruler linear encoder
Input voltage : 5VDC
Output signal : TTL/ABZ
Resolution : 1m/0.001mm
Scale travel : 30 40 50 60 70 80 90 100 110
Scale total length : travel + 103mm
Dimension : 16mm*16mm
Match model : Sino, Easson, Rational, HXX etc.
If include accessories : Yes(with scale cover, screws and accessories)
