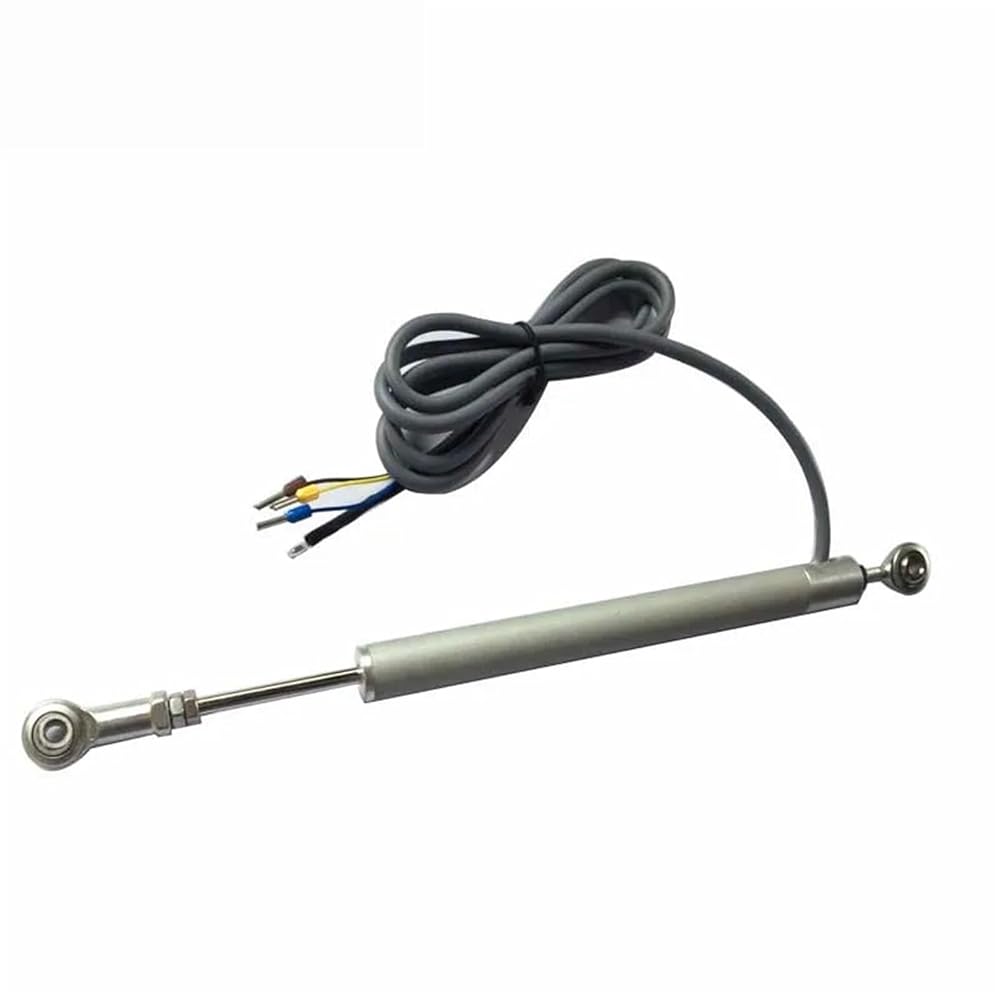

KPM12J 15-300mm Linear Potentiometer, Displacement Transducer Travel Sensor With Two Sides Ball Joint, 1pc
Specification
Standard Specifications:
10mm
15mm
25mm
50~75mm
100~300mm
Linear Precision(±%FS)
±0.1%~0.3%
±0.1%~±0.05%
Resistance(±10%)
2
5
Mechanical stroke
range+3mm
Resolution
Infinite
Repeatability Precision
0.01mm
Max. Speed
5m/S
Recommended Temperature
0-80;-20~+100
Output signal
standard: 0~100%×input voltage (change with the movement of the rod)
optional: 0-5V/ 0-10V/ 4-20mA/RS485 output need an extra module
Sensitivity
1
Temperature Drift
infinitesimal
Material for transducer case
Anodised aluminium
Material for pull shaft
Stainless steel
Protection level
IP65
Mounting
Fixed by the heims joint at both ends
Life
>10*1000000cycles,>25*100000m
Useful electrical stroke (mm)
10 15 25 50 75 100 125 150 175 200 225 250 275 300
Applications
KPM12J products areminiature articulated sensor, small size sensor with two ball joint at both ends. which is suitable for swinging position detection with a not very long range(from 10-300mm).The installation advantage is the it's has no requirement of the neutral.such like: mechanical arm,robots, brick machines, ceramic machines, sluice gate, shoes machinery ,3D seat ,Prestress jack and so on.
Theory : Resistance Sensor
Model Number : KPM12J
Material : Metal
Type : vibration sensor
Output : Analog Sensor
Use : Position Sensor
Effective Stroke Length : 15-300mm
Resistance : 2Kohm/5Kohm
Power Supply : 12-24VDC
Temperature : -40~+80
Precision : ±0.1%
Current : 1mA
Max Motion Speed : 5m/s
Resolution : Infinite
Movement : 2 sides ball joint
Diameter : 12mm
