Special Features

【High precision measurement】:With micrometer level resolution, small measurement errors, and the ability to accurately capture small displacement changes, it meets the stringent requirements of precision machining and high-precision positioning
【Wide range adaptation】:The range covers from a few millimeters to several meters, and can be flexibly selected according to different application scenarios, balancing the needs of short stroke precision measurement and long stroke displacement detection
【Multi scenario universality】:Widely used in fields such as CNC machine tools, automated production lines, 3C electronic manufacturing, automotive parts testing, surveying instruments, etc., it is the core component for achieving intelligent manufacturing and precise control
【Diversified signal output】:Supports multiple output modes and seamlessly integrates with mainstream industrial control equipment such as PLC, CNC systems, servo drives, etc
【Industrial grade durability】:Adopting a metal shell and sealed structure, it has the ability to resist vibration, impact, and electromagnetic interference

Description

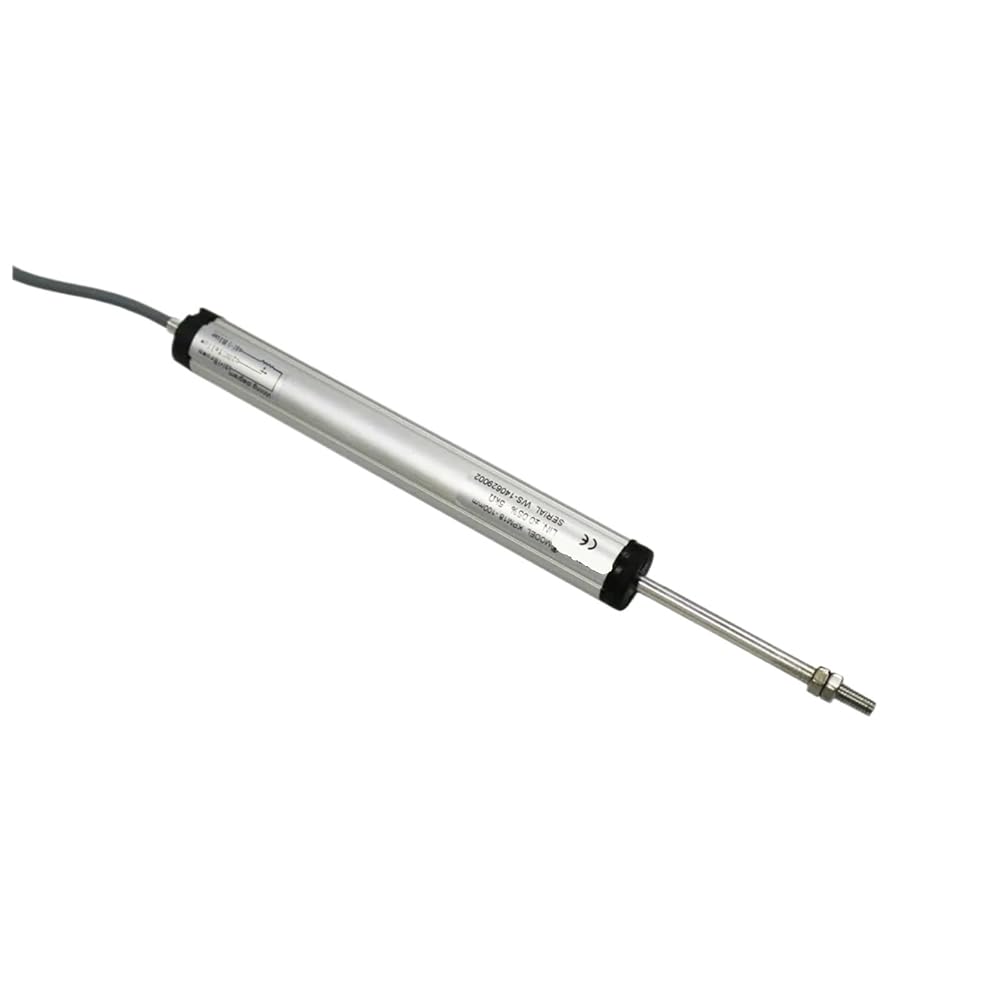

KPM18 25-300mm Linear Sensors, Rod Linear Displacement Transducer, Resistance Potentiometer, 1pc
KPM18D Rod Type Sensor
10mm
15mm
25mm
50~75mm
100~300mm
Linear Precision(±%FS)
±0.1%~0.3%FS
±0.1%~±0.05%
Resistance(±10%)
2
5
Mechanical stroke
range+3mm
Resolution
Infinite
Repeatability Precision
0.01mm
Max. Speed
5m/S
Recommended Temperature
0-80;-20~+100
Output signal
standard:0~100%×input voltage(change with the movement of the rod)
optional:0-5V/0-10V/4-20mA/RS485output need an extra module
Sensitivity
1
Temperature Drift
infinitesimal
Material for transducer case
Anodised aluminium
Materia for pull shaft
Stainless steel
Protection level
IP65
Mounting
Fixed by the heims joint at the both ends or metal mounting brackets
Life
>100*1000000cycles,>25*1000000m
Useful electrical stroke(mm)
1015255075100125150175200225250275300
Dimensions
Applications
KPM18D is a rod type, Suitable for short range and swinging moments, such like: robots, brick machines, ceramic machines, sluice gate, footwear machines and so on.
High-concerned chemical : None
Theory : Resistance Sensor
Model Number : KPM18D
Material : Metal
Type : vibration sensor
Output : Analog Sensor
Use : Position Sensor
Effective Stroke Length : 25-300mm
Resistance : 5Kohm
Power Supply : 12-24VDC
Temperature : -40~+120
Precision : ±0.1%
Current : 1mA
Max Motion Speed : 5m/s
Resolution : Infinite
Diameter : 18mm
