مميزات خاصة

【High precision measurement】:With micrometer level resolution, small measurement errors, and the ability to accurately capture small displacement changes, it meets the stringent requirements of precision machining and high-precision positioning
【Wide range adaptation】:The range covers from a few millimeters to several meters, and can be flexibly selected according to different application scenarios, balancing the needs of short stroke precision measurement and long stroke displacement detection
【Multi scenario universality】:Widely used in fields such as CNC machine tools, automated production lines, 3C electronic manufacturing, automotive parts testing, surveying instruments, etc., it is the core component for achieving intelligent manufacturing and precise control
【Diversified signal output】:Supports multiple output modes and seamlessly integrates with mainstream industrial control equipment such as PLC, CNC systems, servo drives, etc
【Industrial grade durability】:Adopting a metal shell and sealed structure, it has the ability to resist vibration, impact, and electromagnetic interference

وصف

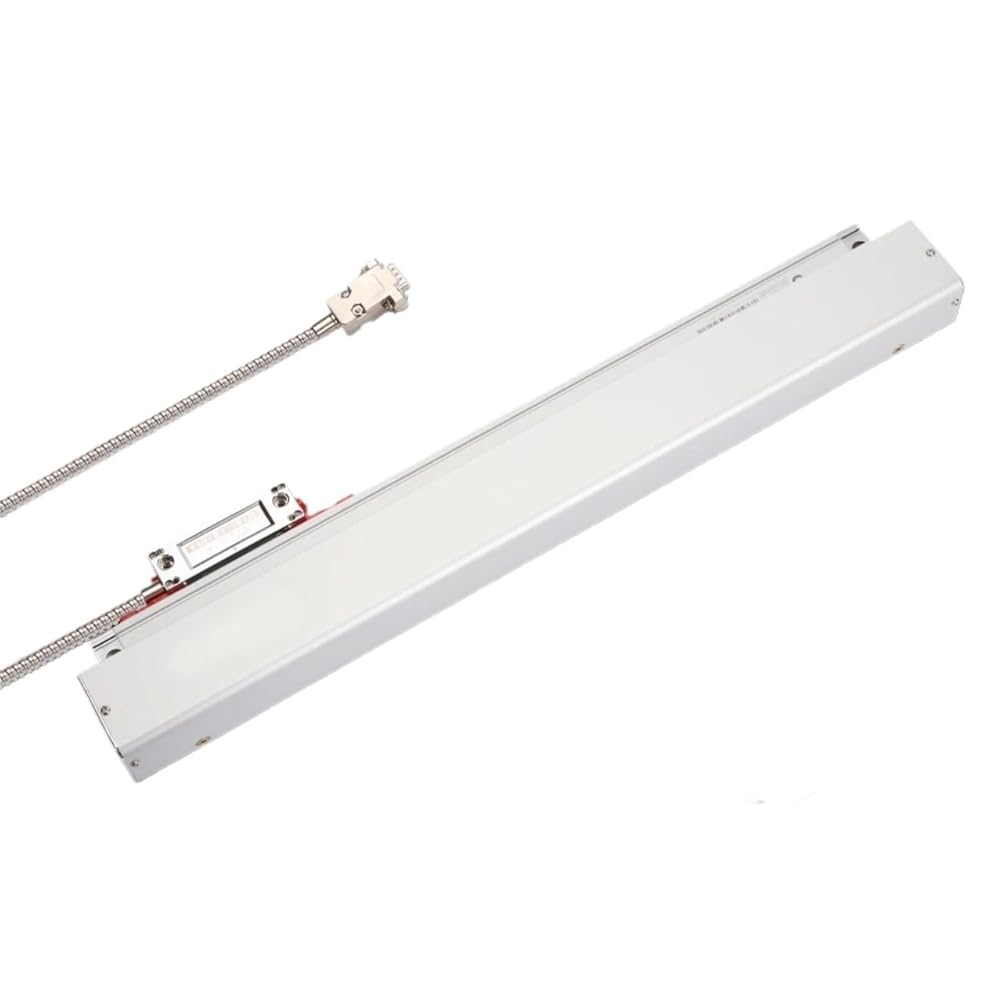

Linear Sensors, ABZ 5micron DRO Encoder 70/420mm Optical Grating Ruler, 1pc
KA300 Linear Scale/SINO KA300 Linear Encoder Parameter
1. Travel (measuring) length: 70-420mm
2. Total (overall) length: Travel length + 106mm
3. Plug: DB9
4. Resolution: 0.005mm (5m)
5. Output signal: TTL signal
6. Input voltage: 5V
7. Grating pitch: 0.02mm (50LP/min)
8. Cable length: 3 Meter / 118 inch
9. Scale width*height size: 21*34mm
10. KA-300 grating ruler is a kind of grating ruler which is widely used. It has reasonable structure,the shape design is beautiful, good rigidity, can meet the majority of general machine tool users use, use long Degree in 70~1020mm.
11. Moving speed: high speed ruler 120 m/min(customize), Ordinary ruler 60m/min
12. Power supply: +5V + 5%, 80mA
13. Working temperature: 0~45 degree
Battery Included : No
High-concerned chemical : None
Model Number : KA-300
Item name : linear scale linear ruler linear encoder
Input voltage : 5VDC
Output signal : TTL/ABZ
Resolution : 5um/0.005mm
Scale travel : 70 120 170 220 270 320 370 420mm
Scale total length : travel + 106mm
