【High precision measurement】:With micrometer level resolution, small measurement errors, and the ability to accurately capture small displacement changes, it meets the stringent requirements of precision machining and high-precision positioning
【Wide range adaptation】:The range covers from a few millimeters to several meters, and can be flexibly selected according to different application scenarios, balancing the needs of short stroke precision measurement and long stroke displacement detection
【Multi scenario universality】:Widely used in fields such as CNC machine tools, automated production lines, 3C electronic manufacturing, automotive parts testing, surveying instruments, etc., it is the core component for achieving intelligent manufacturing and precise control
【Diversified signal output】:Supports multiple output modes and seamlessly integrates with mainstream industrial control equipment such as PLC, CNC systems, servo drives, etc
【Industrial grade durability】:Adopting a metal shell and sealed structure, it has the ability to resist vibration, impact, and electromagnetic interference

وصف

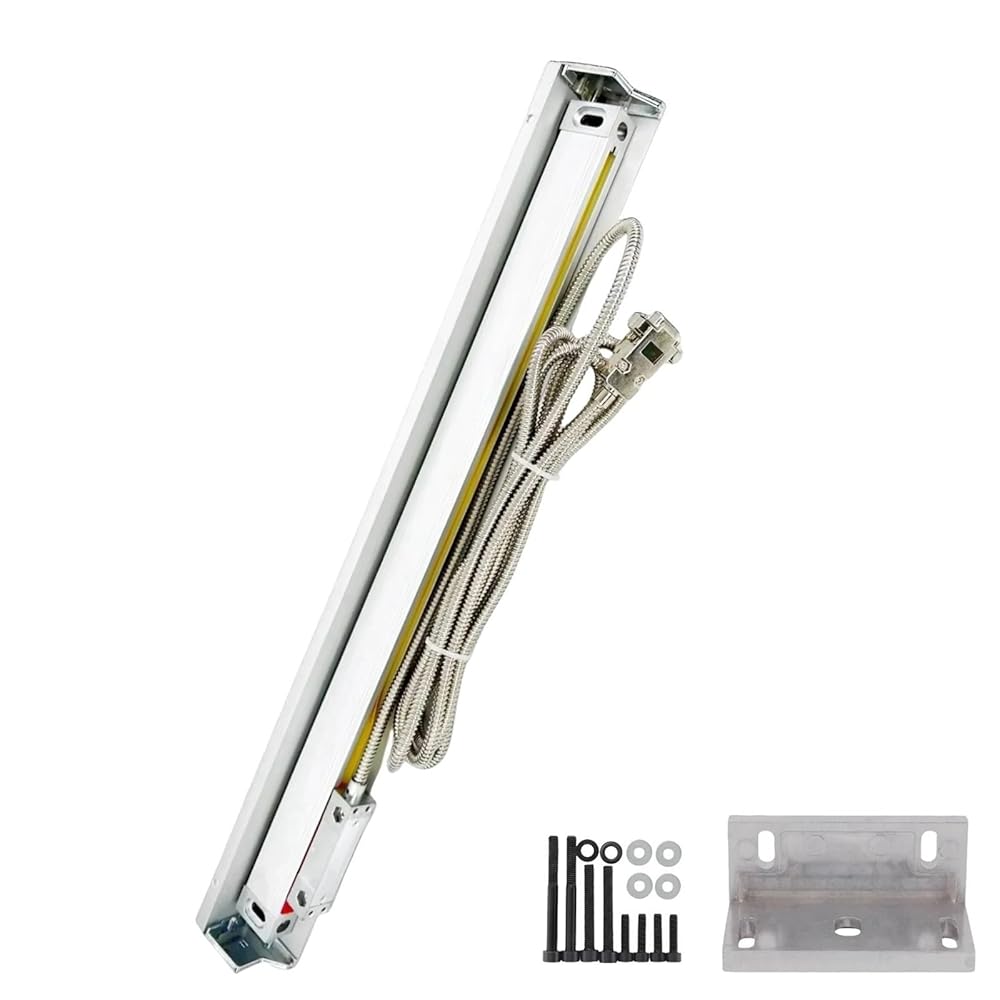

KA300 5um Linear Sensors, Glass Ruler Lathe Milling Machine Linear Scale 5micron for DRO Encoder Optical Grating, 1pc
Model: KA300
Available measurement: 470mm to 820mm
Total length: measurement +106mm
Dimensions Cross section dimensions: 25mmx34.5mm
Input voltage: 5VDC
Power supply: +5V±5%,80mA
Moving speed: 60m/min
Output signal: TTL
Connector: 9 pin socket
Resolution: 5um/0.005mm
Cable length: 3 meters
Battery Included : No
High-concerned chemical : None
Product name : linear scale
Travel length : 470-820mm
Input voltage : 5VDC
Output signal : TTL
Resolution : 0.005mm/5um
Cable length : 3 meters
Scale overall length : Travel+106mm
Installation holes distance : Travel+90mm
Cross section size : 25mmx34.5mm
Application : Mill, Lathe, Grinder, CNC Etc.
