مميزات خاصة

【High precision measurement】:With micrometer level resolution, small measurement errors, and the ability to accurately capture small displacement changes, it meets the stringent requirements of precision machining and high-precision positioning
【Wide range adaptation】:The range covers from a few millimeters to several meters, and can be flexibly selected according to different application scenarios, balancing the needs of short stroke precision measurement and long stroke displacement detection
【Multi scenario universality】:Widely used in fields such as CNC machine tools, automated production lines, 3C electronic manufacturing, automotive parts testing, surveying instruments, etc., it is the core component for achieving intelligent manufacturing and precise control
【Diversified signal output】:Supports multiple output modes and seamlessly integrates with mainstream industrial control equipment such as PLC, CNC systems, servo drives, etc
【Industrial grade durability】:Adopting a metal shell and sealed structure, it has the ability to resist vibration, impact, and electromagnetic interference

وصف

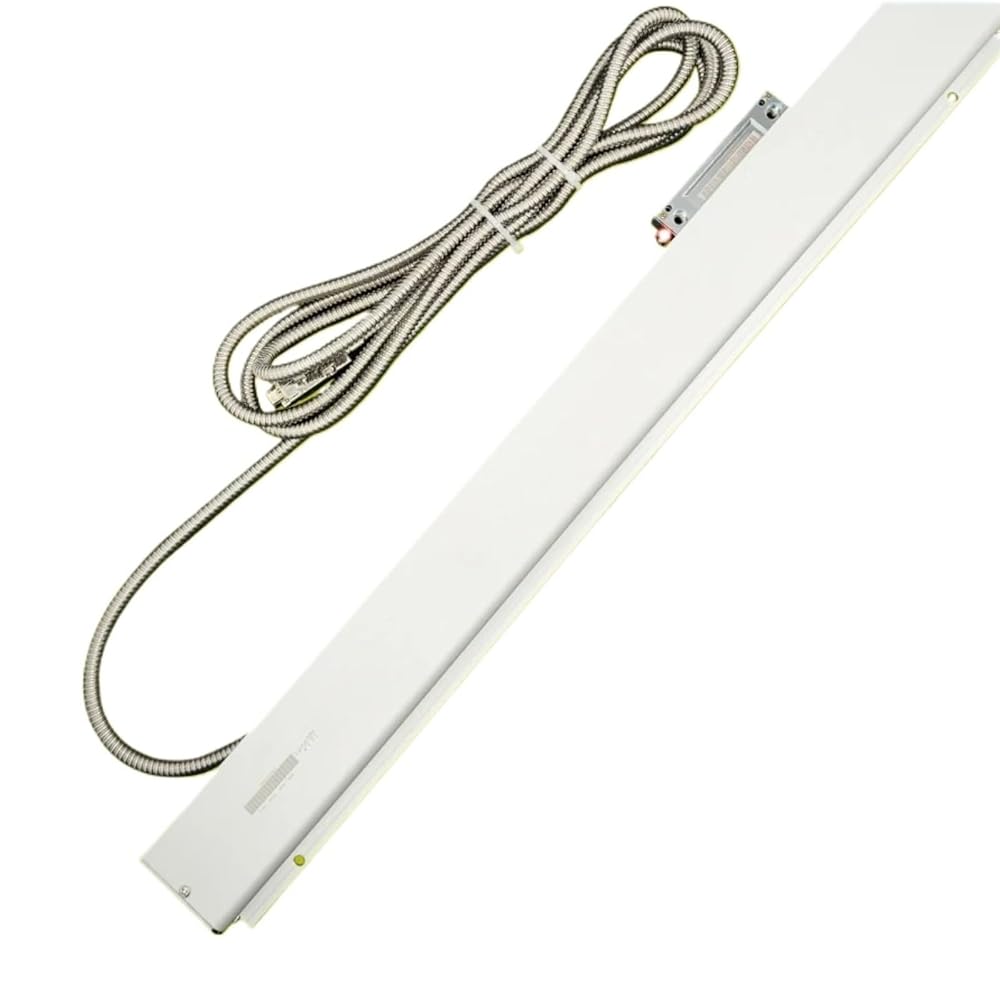

Optical Enencoder KA300 5um, TTL 5V 520/820 Linear Glass Scale, for Milling Lathe Machine, 1pc
Product name: KA-300 Linear scale
Available Measrus Length: 520 570 620 670 720 770 820 870 920mm
Cross Section: 25mm X 34mm
Accuracy: +/- 3, 5, 10 (20 degree, 680 F 1000mm)
Max of Measuring speed: 60m/min
Protection level: IP55
Resolution: 1um/ 5um(0.001mm/0.005mm)
Output signal: TTL / EIA-422-A
Cable standard: 3 meters
Bar Pitch: 0.02mm
Power: +5V±5%, 80mA
Operating temperature:0-45 degree centigrade
Connetor: 9 Pins
Battery Included : No
High-concerned chemical : None
Model Number : KA-300 5m 5V
Accuracy : 5um/0.005mm
Output mode : TTL
Input voltage : DC 5V
Interface Typ : DB9
Max of Measuring speed : 60m/min
Installation holes distance : Travel+90mm
Scale overall length : Travel+106mm
Cable length : 3 meters
