مميزات خاصة

【High precision measurement】:With micrometer level resolution, small measurement errors, and the ability to accurately capture small displacement changes, it meets the stringent requirements of precision machining and high-precision positioning
【Wide range adaptation】:The range covers from a few millimeters to several meters, and can be flexibly selected according to different application scenarios, balancing the needs of short stroke precision measurement and long stroke displacement detection
【Multi scenario universality】:Widely used in fields such as CNC machine tools, automated production lines, 3C electronic manufacturing, automotive parts testing, surveying instruments, etc., it is the core component for achieving intelligent manufacturing and precise control
【Diversified signal output】:Supports multiple output modes and seamlessly integrates with mainstream industrial control equipment such as PLC, CNC systems, servo drives, etc
【Industrial grade durability】:Adopting a metal shell and sealed structure, it has the ability to resist vibration, impact, and electromagnetic interference

وصف

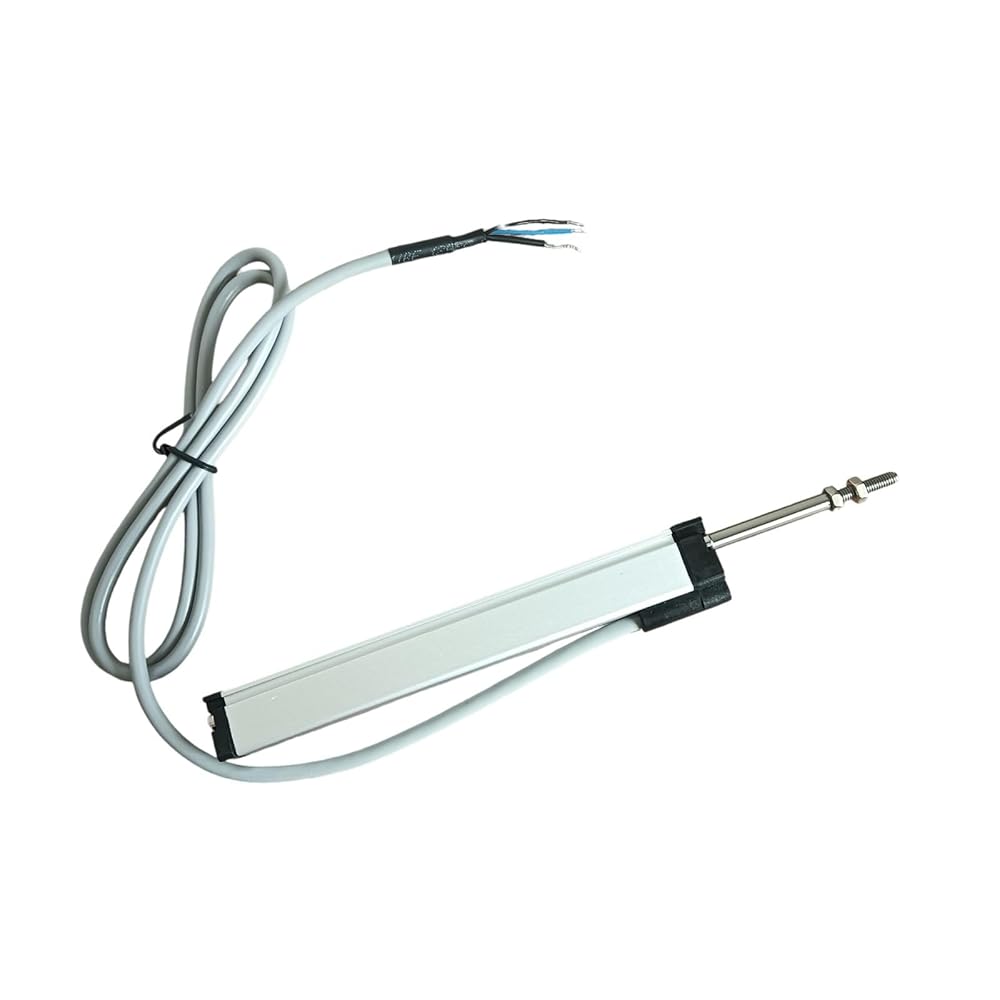

25-150mm Linear Position Sensor, Micro Pull Rod Displacement Sensor Ruler, 1pc
Range: 25mm~300mm for option
Mechanical life:>30×10
Rod diameter:5mm
Feature:
1. Spherical Hinge Could Avoid Lateral Force
2. Usage Life Is Longer, Times Could Reach Thirt y Million
3. Suitable For S mall Space Applications
4. Resolution Rate Is Higher Than 0.01mm
5. High Speed
6. Din43650 Standard Plug And Socket
7. Protection Grade Is Ip65 (install Down Is Ip57)
8. Could Equip With Voltage And Current (2line,3line) Module
Application
1. Injection molding machines (for monitoring mold opening/closing position)
2. Printing presses (to control paper feeding and printing roller displacement)
3. Robotics (measuring arm or joint linear movement)
4. Hydraulic cylinders (tracking piston stroke)
5. Medical equipment (e.g., precise positioning in infusion pumps)
High-concerned chemical : None
Electronic : No
Size : 25mm-150mm
DIY Supplies : Electrical
Output Voltage : 28V
Linearity : ±0.3-±0.05
Resolution : infinite
resistance : 5K
Resistance tolerance : ±%20
Load Resistance : 100K
Shell size : 18mX18mm
IP degree : IP65
Operating temperature : -40/+80
Shell material : Anodized Aluminum
Rod material : Stainless steel
Electrical connections : Straight out
Mechanical fixation : Adjustable stand
