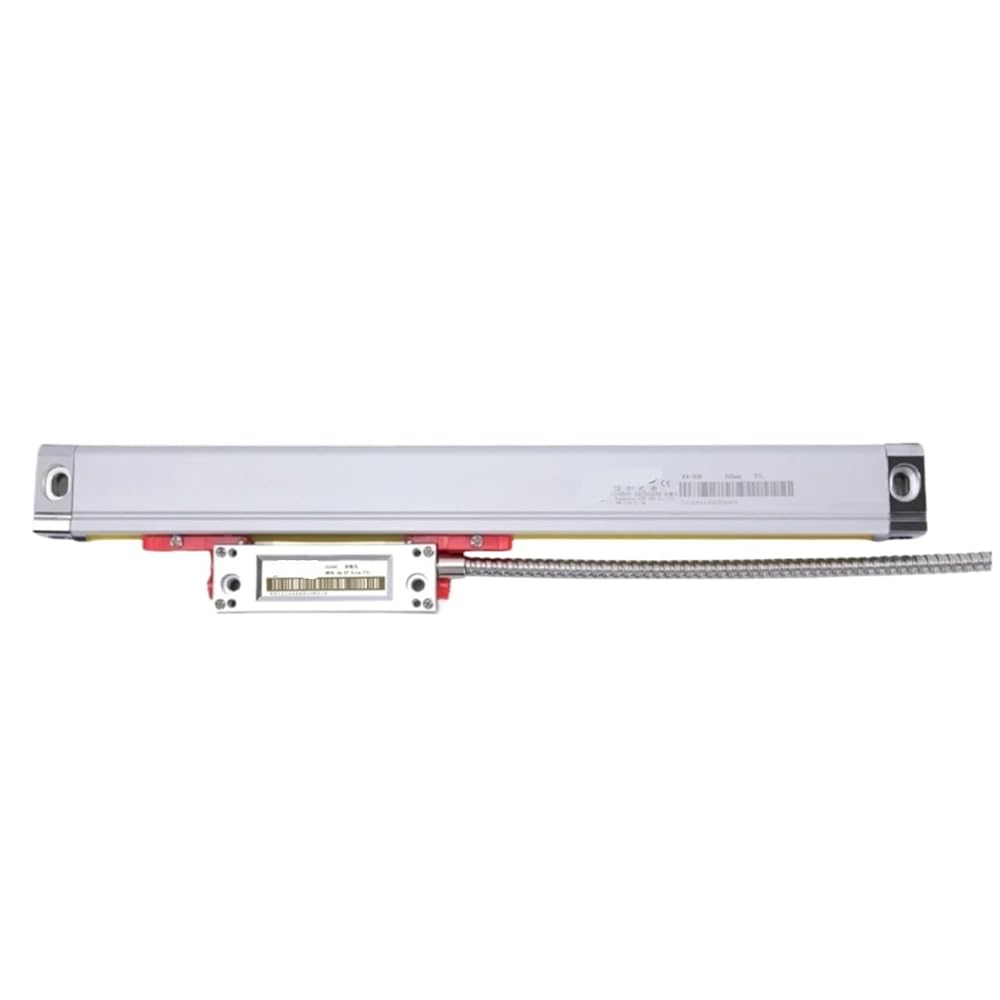

DRO Linear Glass Scale Sensors, 470mm-820mm TTL 1um 5VDC Grating Ruler Encoder Sensor Displacement, 1pc(770mm Travel) in Saudi Arabia

DRO Linear Glass Scale Sensors, 470mm-820mm TTL 1um 5VDC Grating Ruler Encoder Sensor Displacement, 1pc(470mm Travel)

SAR 1,446
Brand
LOXNVUY
Category
Sensors
Weight
0.6 kg
Color470mm Travel
– 1 +

Special Features

  • 【High precision measurement】:With micrometer level resolution, small measurement errors, and the ability to accurately capture small displacement changes, it meets the stringent requirements of precision machining and high-precision positioning
  • 【Wide range adaptation】:The range covers from a few millimeters to several meters, and can be flexibly selected according to different application scenarios, balancing the needs of short stroke precision measurement and long stroke displacement detection
  • 【Multi scenario universality】:Widely used in fields such as CNC machine tools, automated production lines, 3C electronic manufacturing, automotive parts testing, surveying instruments, etc., it is the core component for achieving intelligent manufacturing and precise control
  • 【Diversified signal output】:Supports multiple output modes and seamlessly integrates with mainstream industrial control equipment such as PLC, CNC systems, servo drives, etc
  • 【Industrial grade durability】:Adopting a metal shell and sealed structure, it has the ability to resist vibration, impact, and electromagnetic interference

Description

DRO Linear Glass Scale Sensors, 470mm-820mm TTL 1um 5VDC Grating Ruler Encoder Sensor Displacement, 1pc
Model: KA300
Available measurement: 470mm to 820mm
Total length: measurement+106mm
Size cross section size: 25mmx34.5mm
Input voltage: 5VDC
Output signal: TTL
Resolution: 1um/0.001mm
Cable length: 3meters
Specifications:
Model: KA300
Scale cable: 3 meters
Resolution: 1um
Scale available travel length: 470mm-820mm
Total Length: Measurement + 106mm
Output Signal: TTL
Features:
Precision and Versatility
The High Precision Milling Lathe Grinder DRO Linear Glass Scale is a state-of-the-art tool designed for professionals who demand the highest level of accuracy in their machining processes. With a resolution of 1um/0.001mm, this scale ensures precise measurements, making it ideal for a wide range of applications, from turning lathes to milling machines and grinders. The scale's overall length, including the travel and mounting bracket, is 106mm longer than the measurement range, providing ample space for installation and adjustment.
Battery Included : No
High-concerned chemical : None
Model Number : KA300
Product name : linear scale
Travel length : 470mm-820mm
Input voltage : 5VDC
Output signal : TTL
Resolution : 0.001mm/1um
Cable length : 3 meters
Scale overall length : Travel+106mm
Installation holes distance : Travel+90mm
Cross section size : 25mm*34.5mm
Application : Mill, Lathe, Grinder, CNC Etc.
