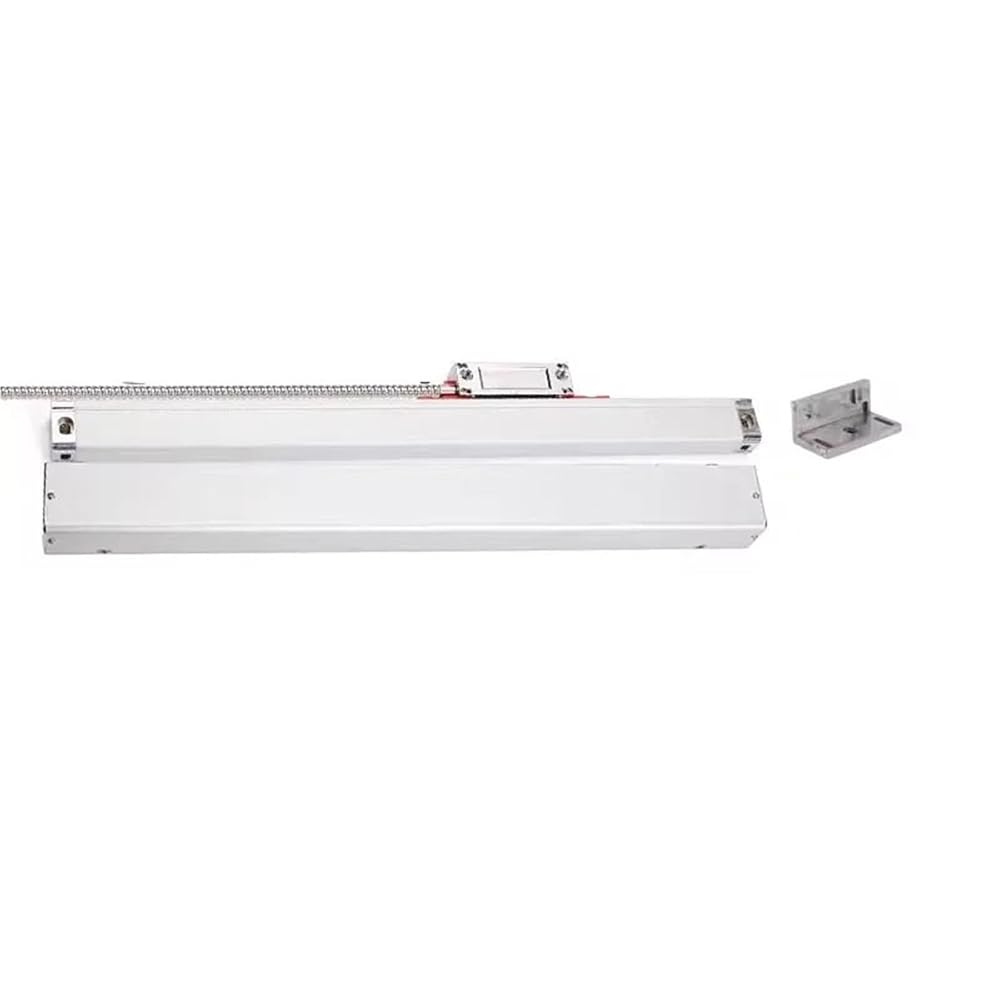

KA300 Linear Encoder, 70/420mm Stroke Length 1um RS422 Optical Ruler Glass Scale Resolution, 1pc(KA300-270mm 0.001mm) in Saudi Arabia

KA300-170mm 0.001mm

SAR 1,629
Brand
LOXNVUY
Category
Sensors
Weight
0.6 kg
ColorKA300-170mm 0.001mm
– 1 +

Special Features

  • 【High precision measurement】:With micrometer level resolution, small measurement errors, and the ability to accurately capture small displacement changes, it meets the stringent requirements of precision machining and high-precision positioning
  • 【Wide range adaptation】:The range covers from a few millimeters to several meters, and can be flexibly selected according to different application scenarios, balancing the needs of short stroke precision measurement and long stroke displacement detection
  • 【Multi scenario universality】:Widely used in fields such as CNC machine tools, automated production lines, 3C electronic manufacturing, automotive parts testing, surveying instruments, etc., it is the core component for achieving intelligent manufacturing and precise control
  • 【Diversified signal output】:Supports multiple output modes and seamlessly integrates with mainstream industrial control equipment such as PLC, CNC systems, servo drives, etc
  • 【Industrial grade durability】:Adopting a metal shell and sealed structure, it has the ability to resist vibration, impact, and electromagnetic interference

Description

KA300 Linear Encoder, 70/420mm Stroke Length 1um RS422 Optical Ruler Glass Scale Resolution, 1pc
1. Travel (measuring) length: 70-420mm
2. Total (overall) length: Travel length + 106mm
3. Plug: DB9
4. Resolution: 0.001mm (1um/1micron)
5. Output signal: RS422 signal / EIA-422-A signal
6. Input voltage: 5V
7. Grating pitch: 0.004mm
8. Cable length: 3 Meter / 118 inch
9. Scale width*height size: 21*34mm
10. KA-300 grating ruler is a kind of grating ruler which is widely used. It has reasonable structure,the shape design is beautiful, good rigidity, can meet the majority of general machine tool users use, use longDegree in 70~1020mm.
11. Moving speed: high speed ruler 120 m/min(customize), Ordinary ruler 60m/min
12. Power supply: +5V + 5%, 80mA
13. Working temperature: 0~45 degree
Battery Included : No
High-concerned chemical : None
Model Number : KA300
Resolution : 0.005mm
Output signal : RS422 signal
Travel length : 70/120/170/220/270/320/370/420mm
Accuracy : +/- 3, 5, 10 (20 degree, 680 F 1000mm)
Rubber : Double rubber
Connetor : 9DB PIN
Cable length : 3 meter
Applications : Milling Machine Lathe Grinder etc
