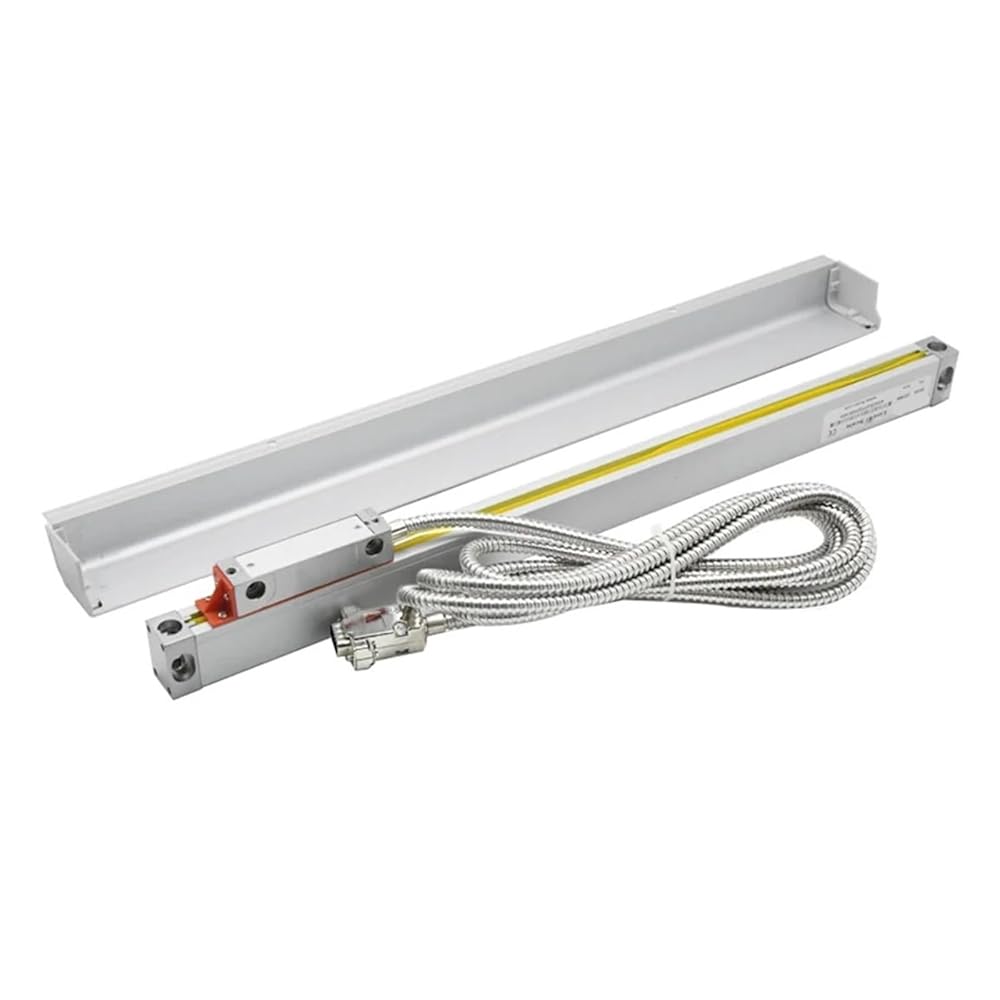

Linear Glass Sensors, IP55 5um Standard 50-1000mm Optical Grating Ruler Encoder Sensor, 1pc(1000mm Travel) in Saudi Arabia

800mm travel

SAR 888
Brand
LOXNVUY
Category
Sensors
Weight
0.6 kg
Color800mm Travel
– 1 +

Special Features

  • 【High precision measurement】:With micrometer level resolution, small measurement errors, and the ability to accurately capture small displacement changes, it meets the stringent requirements of precision machining and high-precision positioning
  • 【Wide range adaptation】:The range covers from a few millimeters to several meters, and can be flexibly selected according to different application scenarios, balancing the needs of short stroke precision measurement and long stroke displacement detection
  • 【Multi scenario universality】:Widely used in fields such as CNC machine tools, automated production lines, 3C electronic manufacturing, automotive parts testing, surveying instruments, etc., it is the core component for achieving intelligent manufacturing and precise control
  • 【Diversified signal output】:Supports multiple output modes and seamlessly integrates with mainstream industrial control equipment such as PLC, CNC systems, servo drives, etc
  • 【Industrial grade durability】:Adopting a metal shell and sealed structure, it has the ability to resist vibration, impact, and electromagnetic interference

Description

Linear Glass Sensors, IP55 5um Standard 50-1000mm Optical Grating Ruler Linear Encoder Sensor, 1pc
Technical Parameters:
1)Measuring Length: 50-1000m
2)Resolution:5um
3)Output Signal: 5VTTL
4)Cross Section:20.5*31mm
5Accuracy: ±5u, ±10um/M
6)Sealing Protection: IP55
7)Max. Moving Speed': 60M/Min
8)Reference Point: Every 50mm
Advantages:
1.45° Vertical five bearings silding system,smooth and accurate movement.
2.Calibrated by laserinterferometer,accuracy guaranteed.
3.IP55 Protection, waterproof,oil-proof and dust proof.
4.Full sealing structure,swarf and coolant proof.
Battery Included : No
High-concerned chemical : None
Model Number : DC10
Usage : Measuring
Application : Lathe Milling Machine
Accuracy : ±5u,±10μm/M
Reference Point : Every 50mm
Output Signal : 5V TTL/RS422
Max.Moving Speed : 60M/Min
Keyword : Linear Position Sensor
Sealing Protection : IP55
Cross Section : 20.5*31mm
