مميزات خاصة

【High precision measurement】:With micrometer level resolution, small measurement errors, and the ability to accurately capture small displacement changes, it meets the stringent requirements of precision machining and high-precision positioning
【Wide range adaptation】:The range covers from a few millimeters to several meters, and can be flexibly selected according to different application scenarios, balancing the needs of short stroke precision measurement and long stroke displacement detection
【Multi scenario universality】:Widely used in fields such as CNC machine tools, automated production lines, 3C electronic manufacturing, automotive parts testing, surveying instruments, etc., it is the core component for achieving intelligent manufacturing and precise control
【Diversified signal output】:Supports multiple output modes and seamlessly integrates with mainstream industrial control equipment such as PLC, CNC systems, servo drives, etc
【Industrial grade durability】:Adopting a metal shell and sealed structure, it has the ability to resist vibration, impact, and electromagnetic interference

وصف

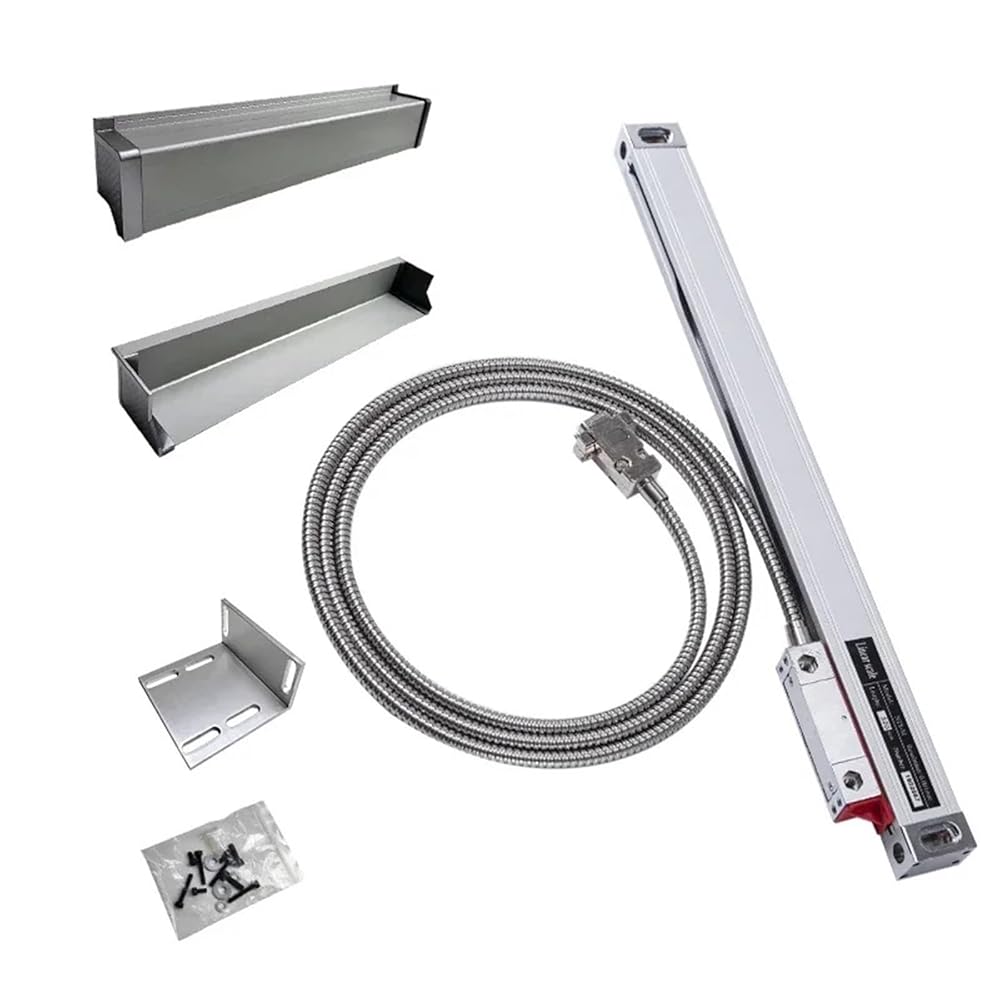

NT-M 1um DRO Linear Glass Scale, 450mm-1000mm TTL 5VDC Grating Ruler Displacement Sensor, 1pc
Parameter
Model: NT-M
Available measurement: 450mm to 1000mm
Total length: measurement+142mm
Size cross section size: 20mmx27mm
Input voltage: 5VDC
Output signal: TTL
Resolution: 1um/0.001mm
Cable length: 3meters
Battery Included : No
High-concerned chemical : None
Model Number : NT-M
Procut name : 0.001mm linear scale
Scale travel : 500 550 600 650 700 750 800 850 900 950 1000mm
Cross section size : 20mmx27mm
RESOLUTION : 0.001mm, 1micron
ACCURACY : ±3/±5/±10
Installation holes distance : Travel+124mm
Resolution : 0.001mm/1um
Cable length : 3 meters
VELOCITY : 60m-120m/min
Protection grade : IP54
If include accessories : Yes(with scale cover, screws and accessories)
Application : Mill, Lathe, Grinder, CNC Etc.
OUIPUT SIGNALS : TTL (R is a pulse signal, no reference point)/EIA-422
