Special Features

【High precision measurement】:With micrometer level resolution, small measurement errors, and the ability to accurately capture small displacement changes, it meets the stringent requirements of precision machining and high-precision positioning
【Wide range adaptation】:The range covers from a few millimeters to several meters, and can be flexibly selected according to different application scenarios, balancing the needs of short stroke precision measurement and long stroke displacement detection
【Multi scenario universality】:Widely used in fields such as CNC machine tools, automated production lines, 3C electronic manufacturing, automotive parts testing, surveying instruments, etc., it is the core component for achieving intelligent manufacturing and precise control
【Diversified signal output】:Supports multiple output modes and seamlessly integrates with mainstream industrial control equipment such as PLC, CNC systems, servo drives, etc
【Industrial grade durability】:Adopting a metal shell and sealed structure, it has the ability to resist vibration, impact, and electromagnetic interference

Description

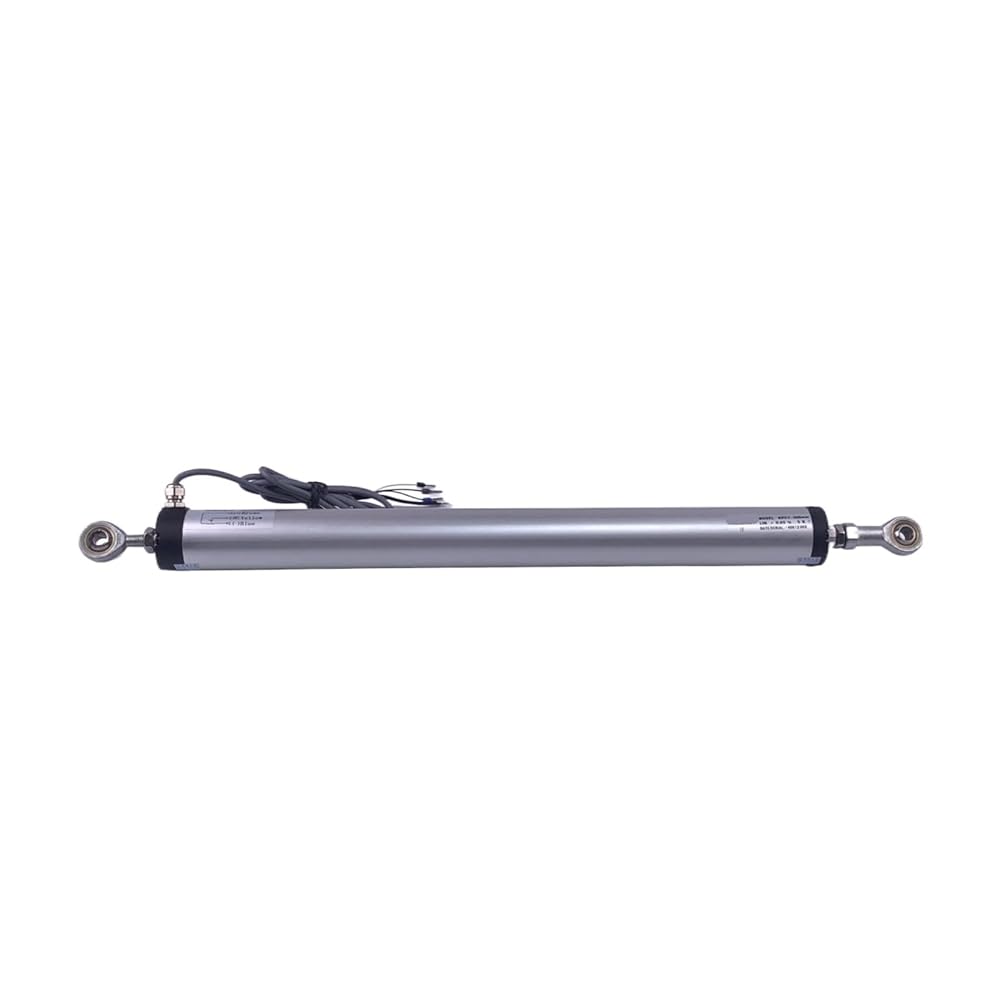

KPC1 50-300mm Linear Displacement Transducer Travel Sensor, With Two Sides Ball Joint, 1pc
Applications
KPC1 is a twisted type, Ball joint at the 2 ends. Suitable for long range and swinging moments, such like: robots, brick machines, ceramic machines, sluice gate, woodworker machines, hydraulic machines and so on.
High-concerned chemical : None
Theory : Resistance Sensor
Material : Metal
Type : Optical-Electronics Sensor
Output : Analog Sensor
Use : Position Sensor
Effective Stroke Length : 50-300mm
Resistance : 5Kohm
Power Supply : 12-24VDC
Temperature : -40~+85
Precision : ±0.1%
Current : 1mA
Max Motion Speed : 10m/s
Resolution : Infinite
Movement : 2 sides ball joint
