【High precision measurement】:With micrometer level resolution, small measurement errors, and the ability to accurately capture small displacement changes, it meets the stringent requirements of precision machining and high-precision positioning
【Wide range adaptation】:The range covers from a few millimeters to several meters, and can be flexibly selected according to different application scenarios, balancing the needs of short stroke precision measurement and long stroke displacement detection
【Multi scenario universality】:Widely used in fields such as CNC machine tools, automated production lines, 3C electronic manufacturing, automotive parts testing, surveying instruments, etc., it is the core component for achieving intelligent manufacturing and precise control
【Diversified signal output】:Supports multiple output modes and seamlessly integrates with mainstream industrial control equipment such as PLC, CNC systems, servo drives, etc
【Industrial grade durability】:Adopting a metal shell and sealed structure, it has the ability to resist vibration, impact, and electromagnetic interference

وصف

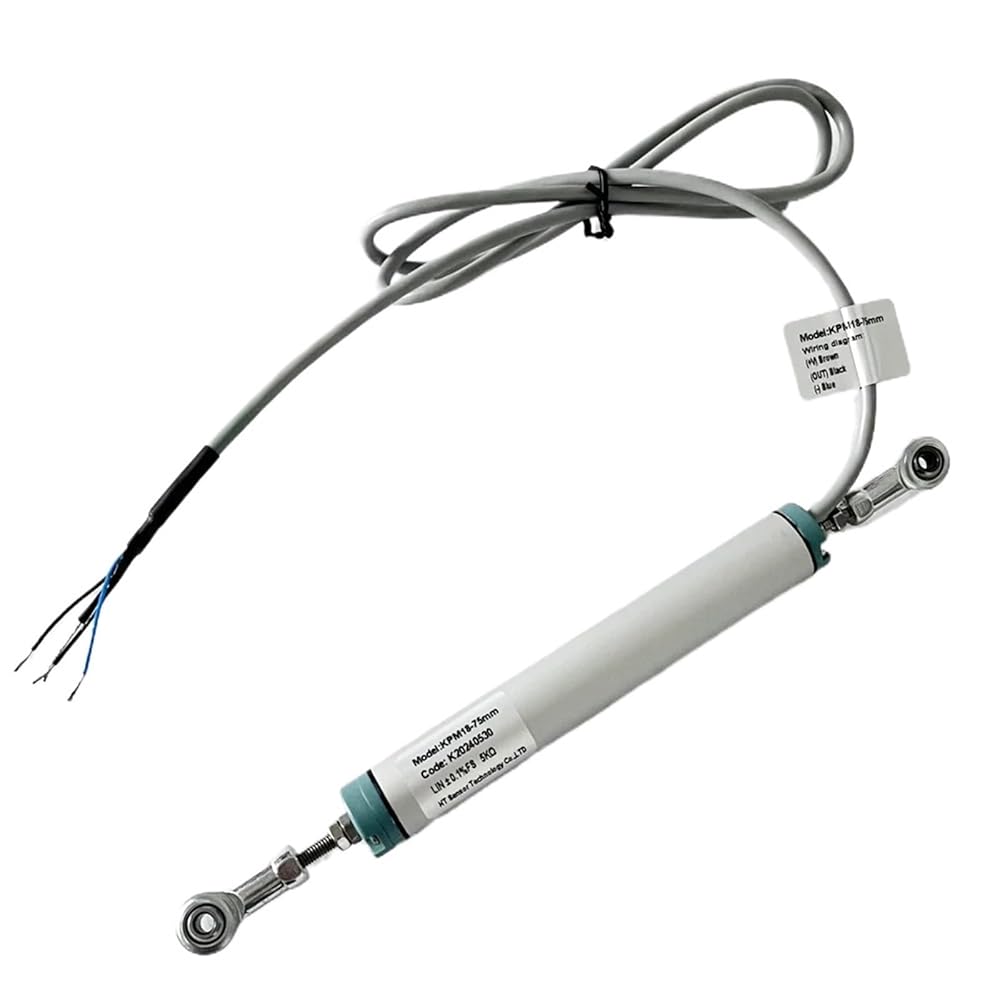

RS485 175mm/300mm KPM18 Dual-Joint Linear Sensor, Linear Position Travel Sensor With Eye Rod, 1pc
Introduction:
KPM18 diameter is 18mm
Rod diameter:5mm
Range: 10mm~600mm for option
Rod Eye End Linear Actuated Position Travel Sensor
Application for short range and swinging moments, such like: robots, brick machines, ceramic machines, sluice gate, footwear machines and so on.
The sensor can monitor the size of the crack, fix the two joints on the wall, when the crack in the wall increases,the sensor bar will move accordingly, and the size of the crack can be measured sideways.
High-concerned chemical : None
Electronic : No
Size : 18mm
Type : Linear Position Travel sensor
Model Number : KPM18
DIY Supplies : Electrical
Style : Green
Diameter : 18mm
Electrical connections : 1M Cable
Protection Level : IP65
Shell material : Anodized Aluminum
Rod material : Stainless steel
Mechanical fixation : Fisheye ball joints at both ends
Operating temperature : -40/ +80
Allow power supply voltage : 28V
Resolution : Infinite
Repeatability Precision : 0.01mm
Max Speed : 5m/S
