Drive Switch Wrench
MPa, kpa, Psi, mmH20
inH20, mmHg, inHg
kgf/cm², mbar, bar
Current key
Current Measurement
Peak Wrench
Backlight on after
pressing the button
On/Key
On/Off Function
Return key
Return to Primary
Push Unit Key
(Reuse menu calibration key)
Backlight Key
Press the button to
turn on the backlight
Zero Calibration
Under Non-Pressure Conditions
No current condition
Menu key.
Full Pressure
Range Calibration
Current Sample Rate
Display Switch Key
Select 5 digits
and 6-digit display
Snap
exit door
Connection
standard table
Pressure Relief
Valve
Close during suppression
At the end of the
Measurements
Release Gas
Snap Rod
Grab firmly and relax
Repeatedly perform
Generating pressure
Slim Fit
Increase within a small
reach or reduce pressure
Pressure Outlet
Door
Connect to
checkered table
Connecting threads:
M20X1.5

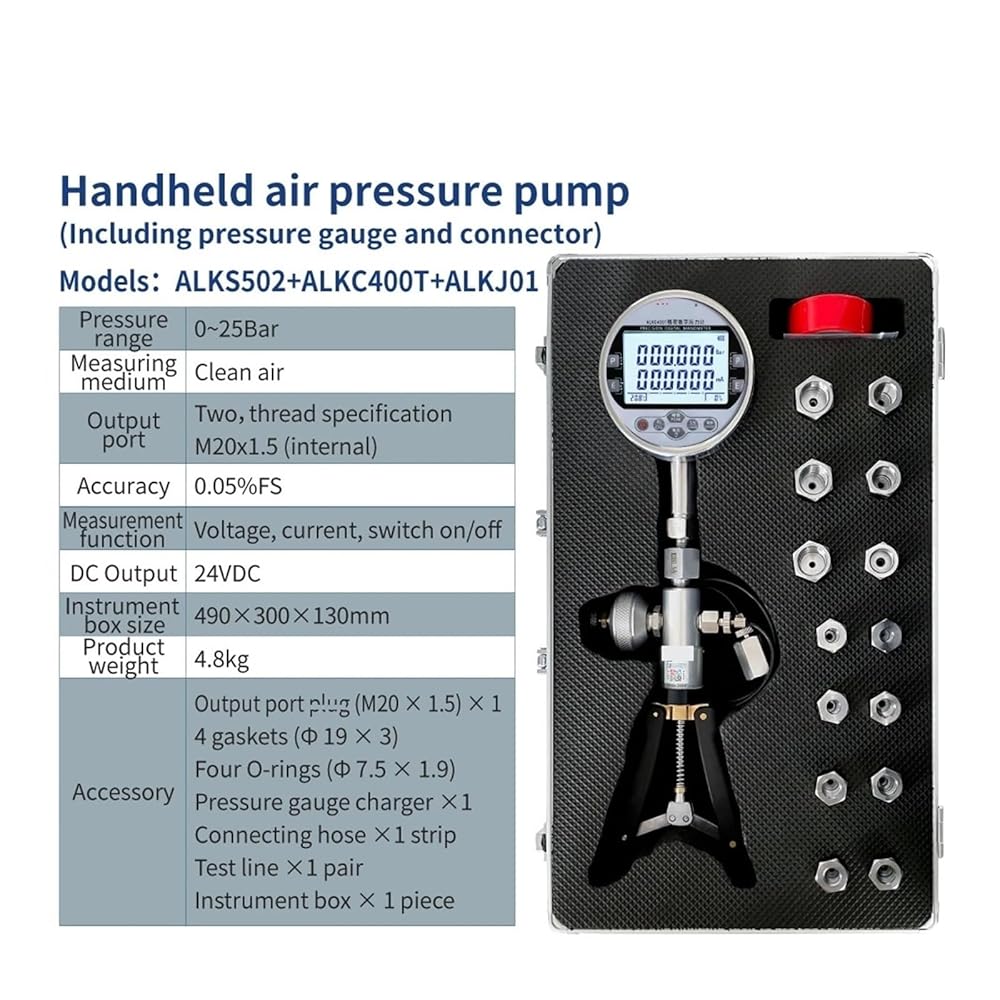

Product Name

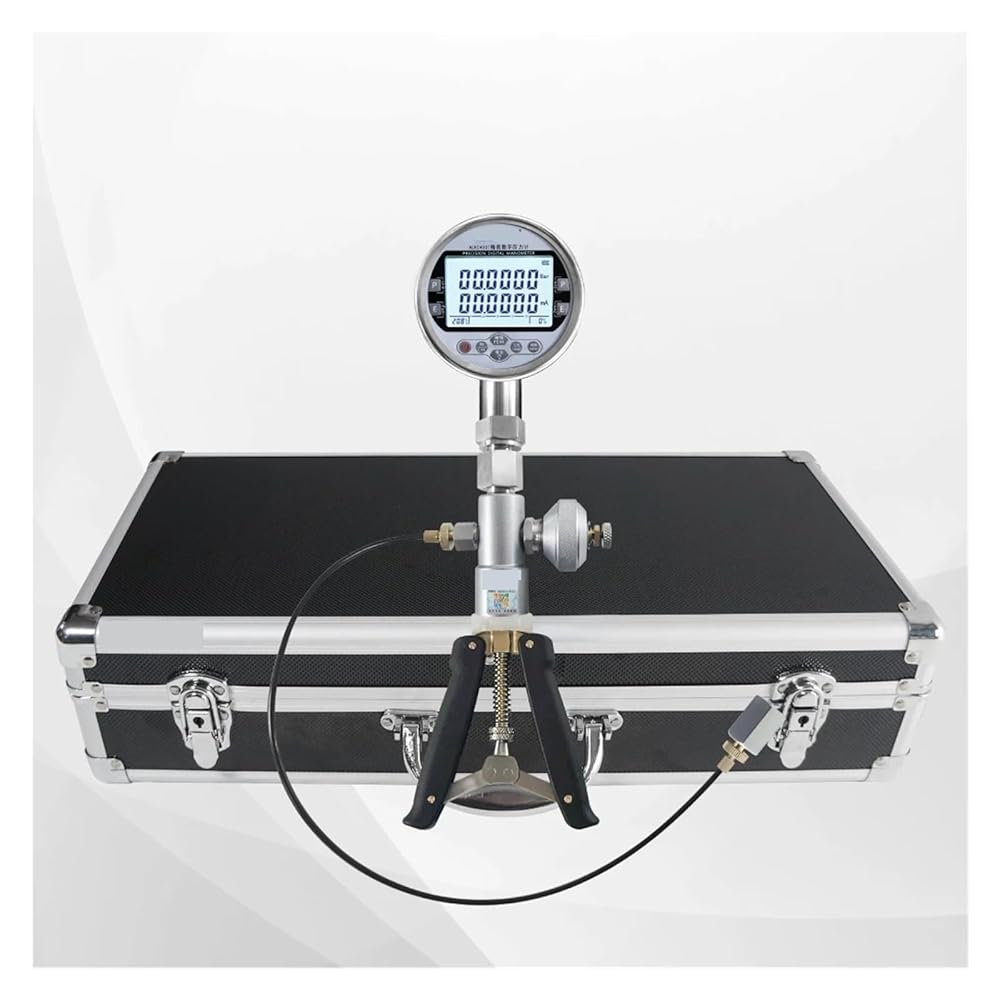

Portable air pressure pump (including pressure gauge and connector)
Style
ALKS502+ALKC400T+ALKJ01
Measuring Range
0~25bar (optional within range)
Precision
0.05% FS
Operating Temperature
0-50
Pressure Shape
Hand movement
Thread Joint.
M20×1.5
Average Measurement
Clean Air
Display
Press the button to select 5 or 6 digits for display
DC Working Time
Voltage, Current, On/Off
DC Output
24VDC
Overload Capacity
1.2 times the upper range limit
Power Supply
220VAC 50Hz 3VA External Charger
Net Weight
Approximately 10.7kg
Size:
430×110×60mm
Instrument Box Weight
Approximately 15 Pounds
Instrument Case Size
490×300×130mm
Product Weight
Approximately 7.8kg (Package material is cardboard box)
Product Packaging Size
530 × 350 × 160 mm
Product Standard Configuration
Output port plugs (M20×1.
