Special Features

This handheld hydraulic test pump delivers pressure that is suitable for testing hydraulic systems, ensuring that the sealing and pressure of equipment can be accurately checked.
Compact and portable, the pump is made from high strength steel to ensure long term durability in a variety of on-site testing environments.
Suitable for hydraulic piping, hydraulic pumps, valves and other equipment pressure testing. Ideal for testing the sealing of hydraulic equipment or for commissioning and maintenance of equipment.
The pressure gauge monitors the hydraulic pressure in real time to ensure accurate and reliable data during the testing process.

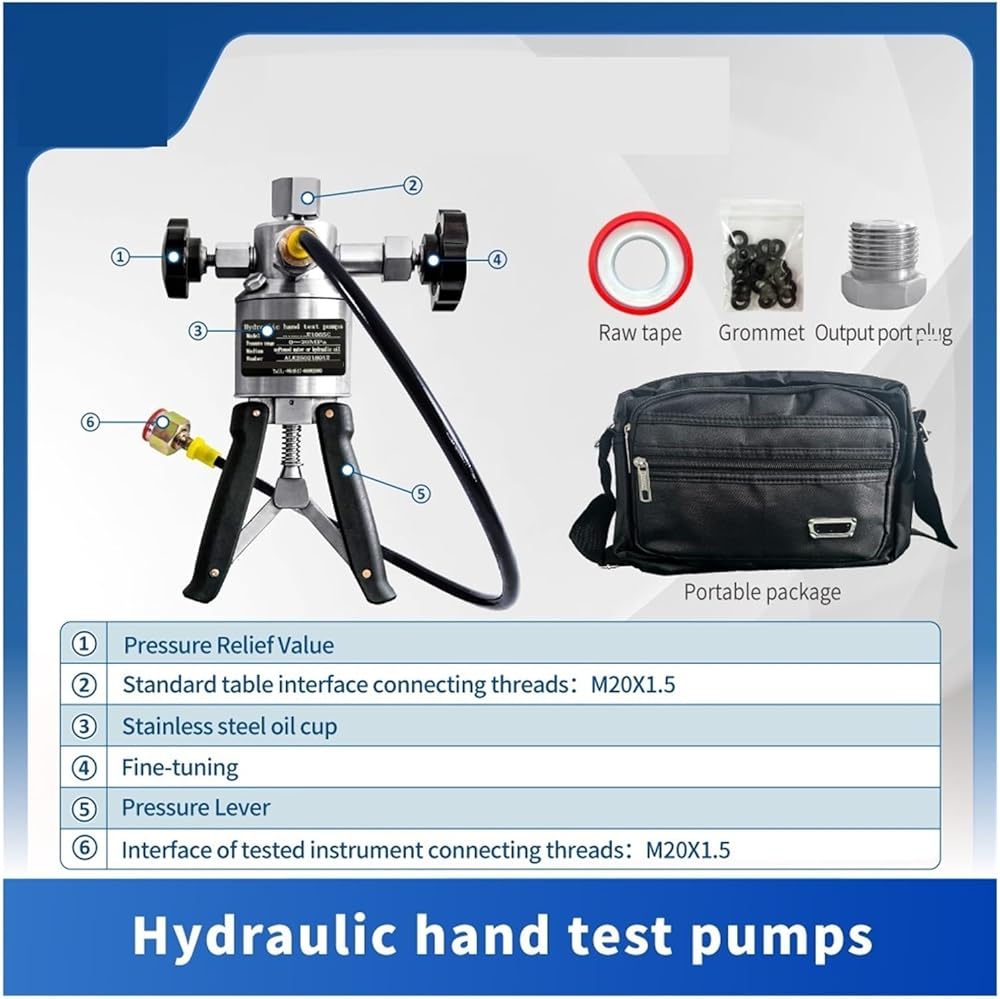

Description

Pressure Relief Value
Standard table interface
Connecting threads:
M20X1.5
Stainless steeloil cup
Fine-tuning
Pressure Lever
Interface of
tested instrument
Connecting threads:
M20X1.5

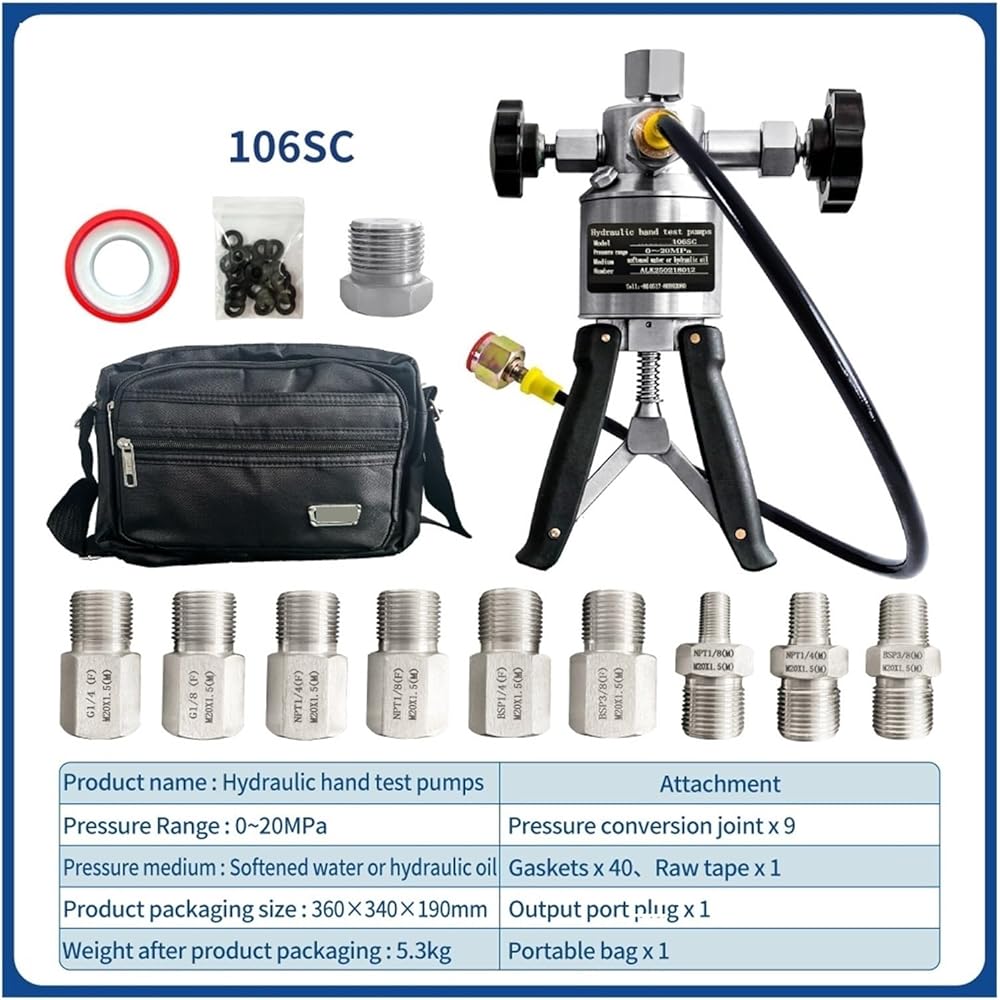

Product name

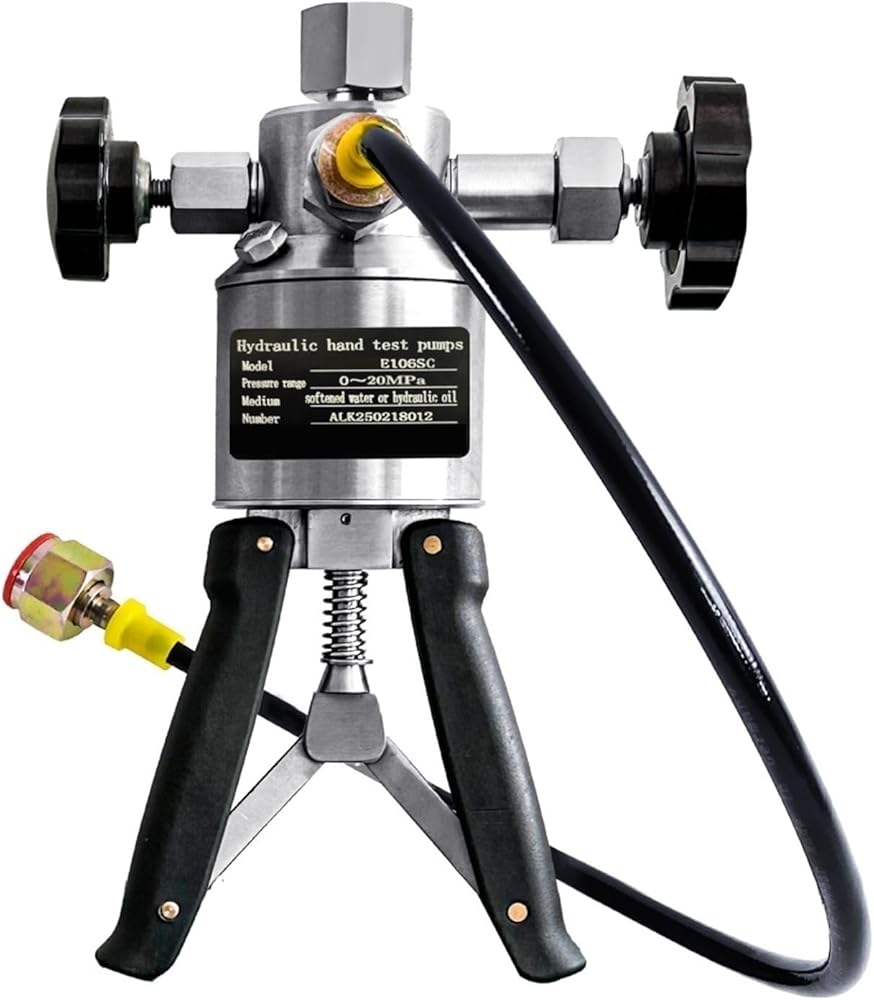

Handheld hydraulic pump
Model
106SC
Measuring range
0~20MPa
Environmental conditions
Laboratory or field
Way of Pressure
Hand movement
Basic thread
M20×1.5
Applicable medium
Softened water or hydraulic oil
Net weight
Approximately 2.3Kg

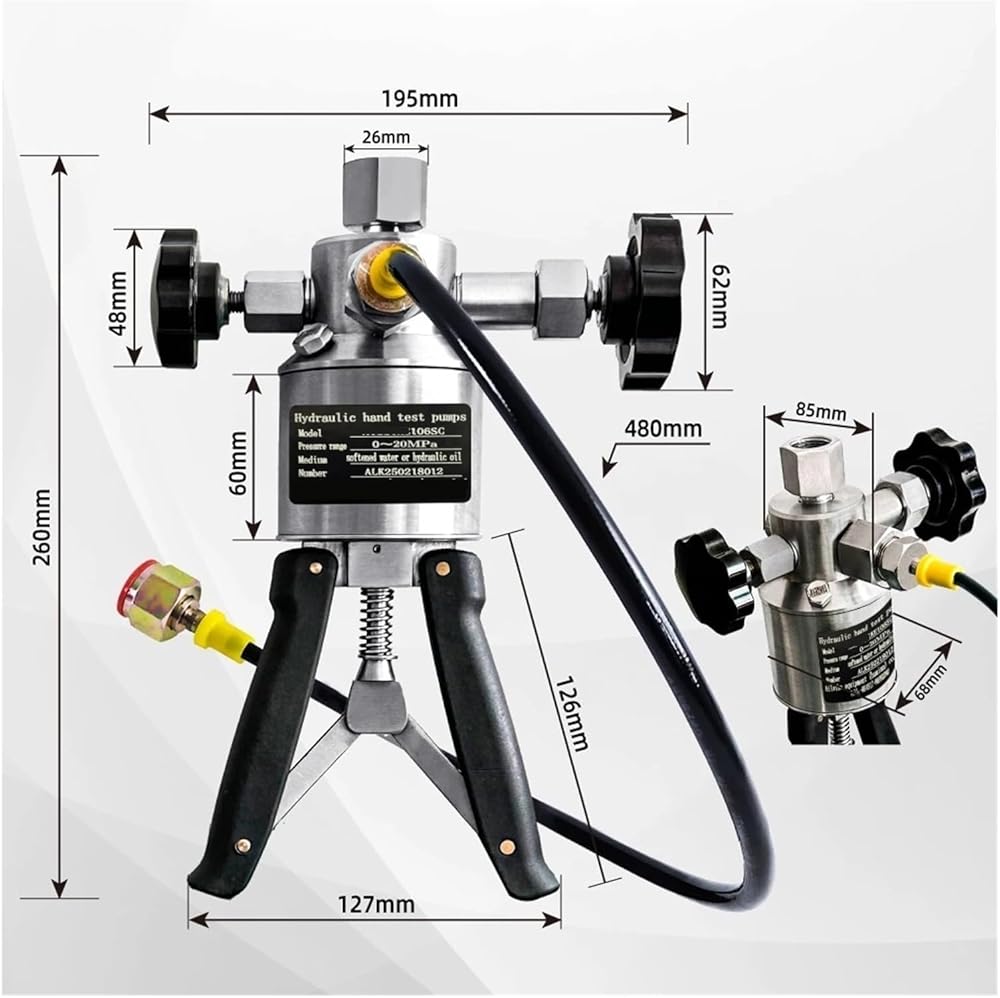

Size
260×195×85mm
Weight after product packaging
Approximately 5.3Kg
Product packaging size
360×340×190mm
Product standard

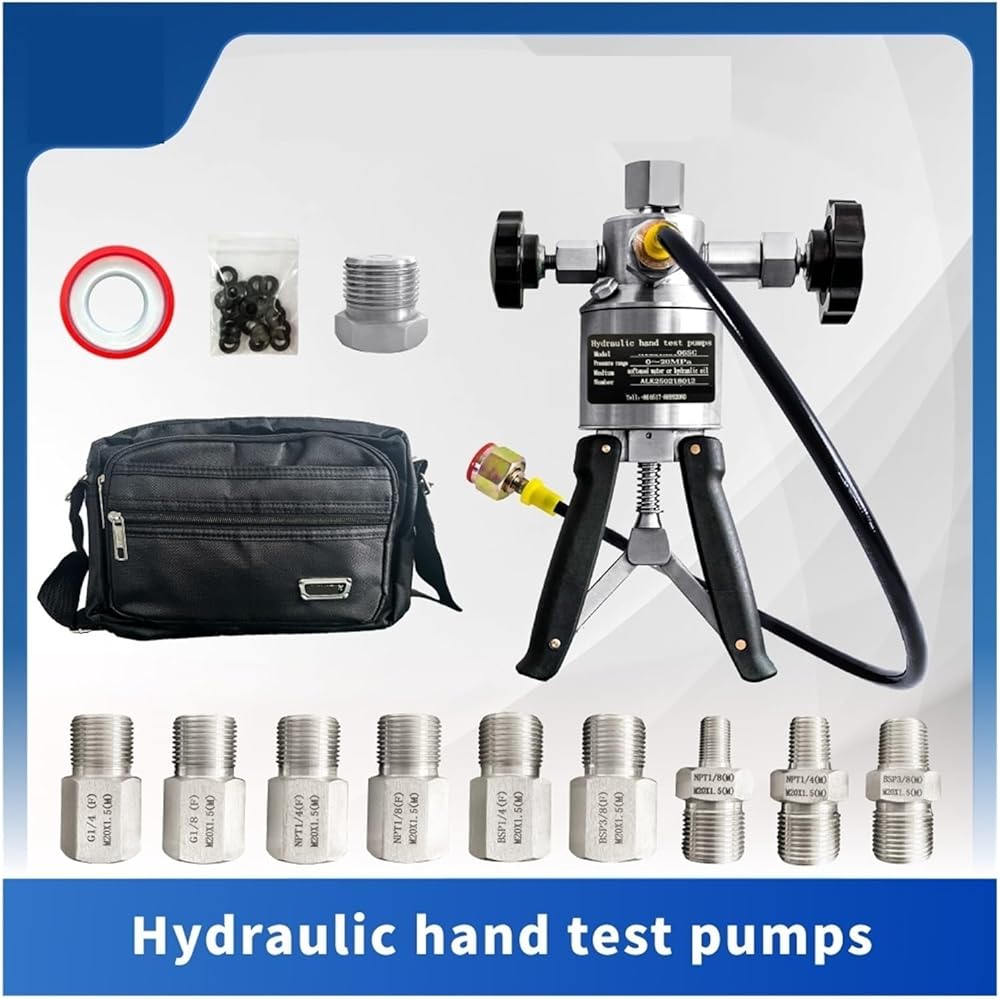

configuration
Output portplug x 1 piece
Portable bag x 1 piece
Gaskets x 40 piece
PTFE sealing tape x 1 piece
Pressure conversion joint x 9 piece

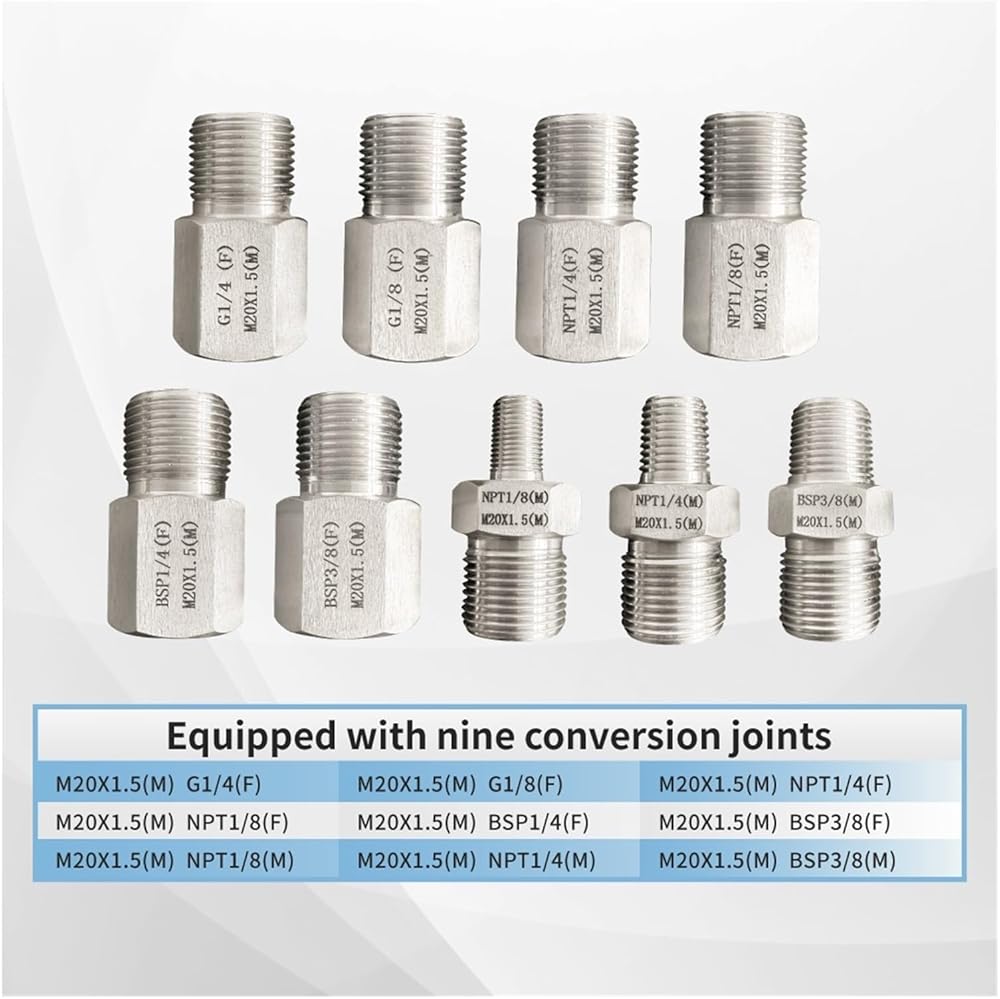

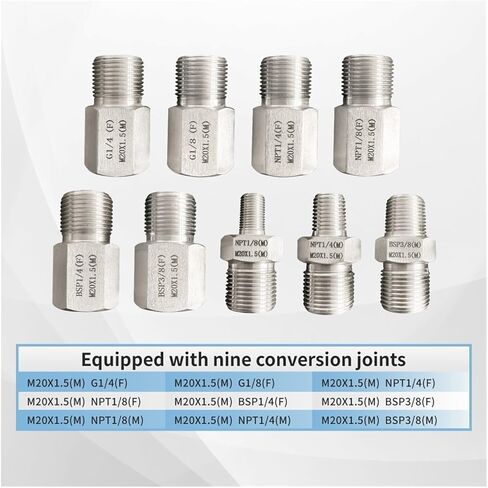

Equipped with nine conversion joints
M20X1.5(M) G1/4(F)
1 piece
M20X1.5(M) G1/8(F)
1 piece
M20X1.5(M) NPT1/4(F)
1 piece
M20X1.5(M) NPT1/8(F)
1 piece
M20X1.5(M) BSP1/4(F)
1 piece
M20X1.5(M) BSP3/8(F)
1 piece
M20X1.5(M) NPT1/8(M)
1 piece
M20X1.5(M) NPT1/4(M)
1 piece
M20X1.5(M) BSP3/8(M)
1 piece
==========
Model Number : 106SC
Origin : Mainland China
