Connecting threads:
M20X1.5
Fine tuning
Increase within a small
range or reduce pressure
Product name

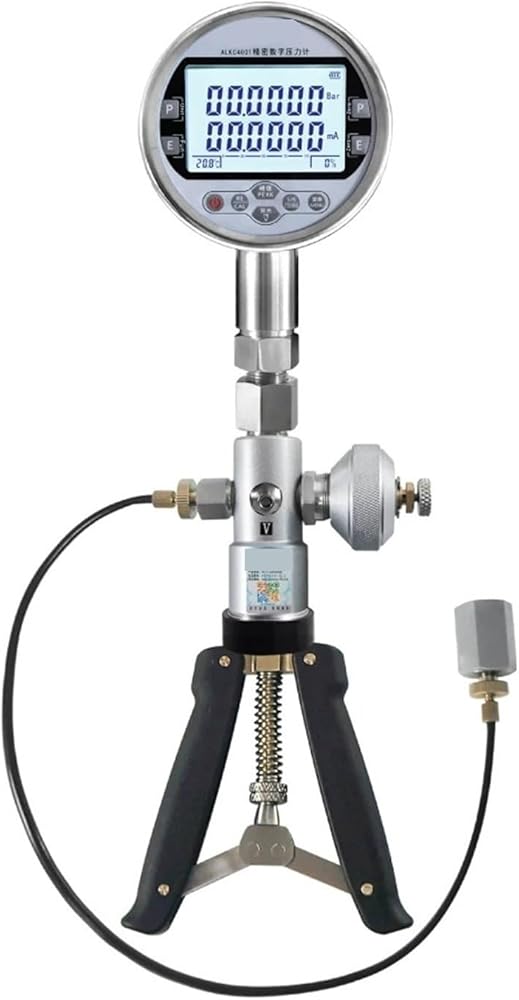

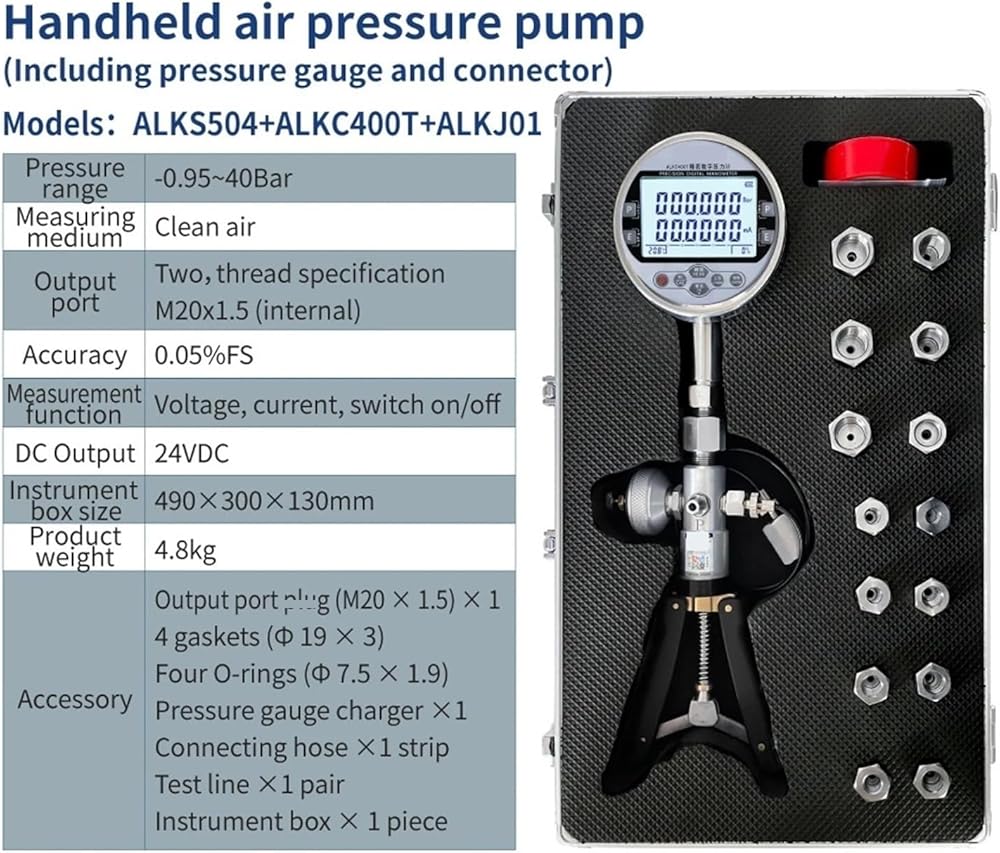

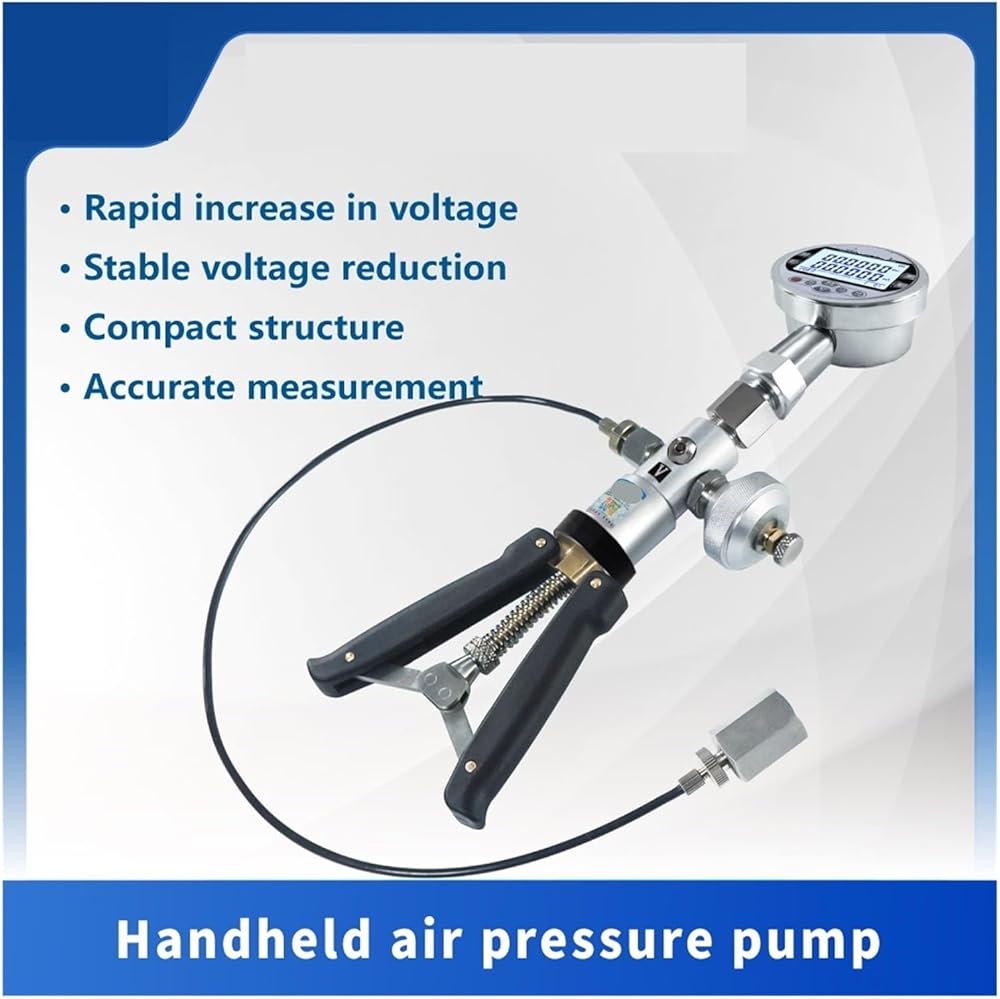

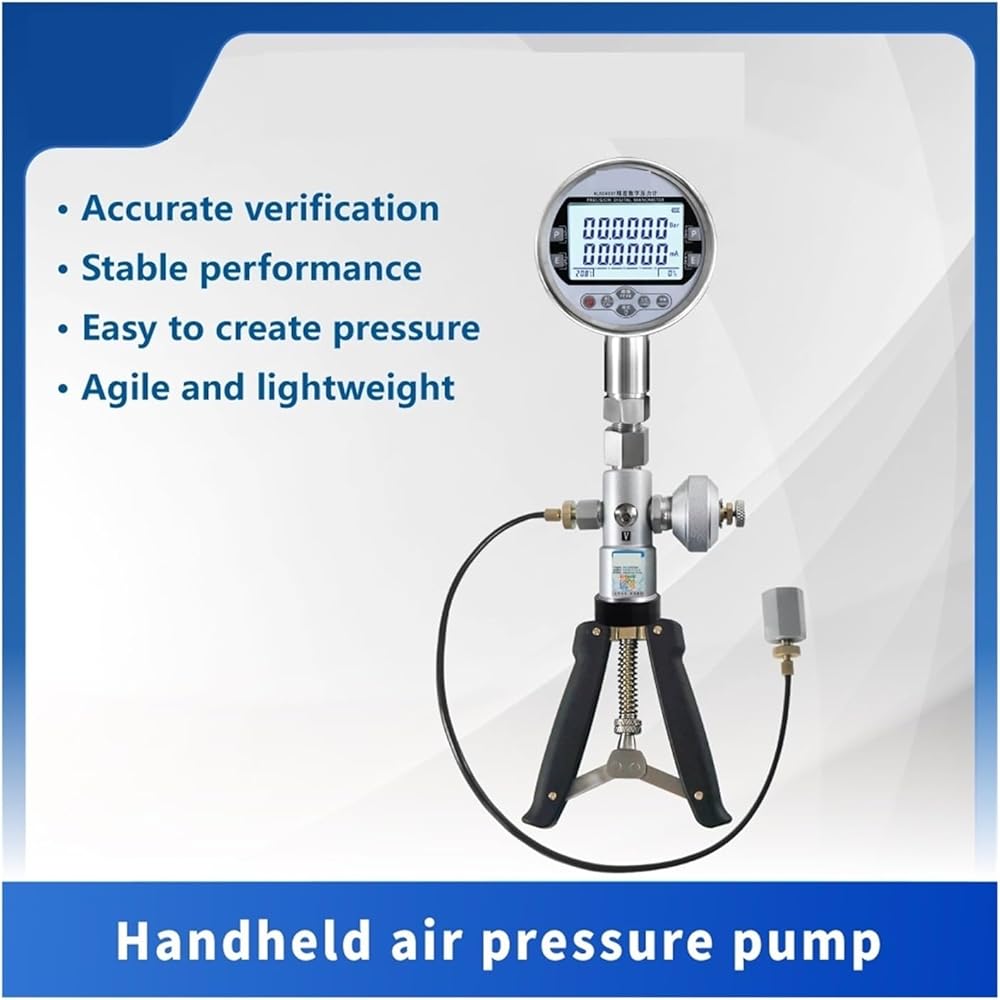

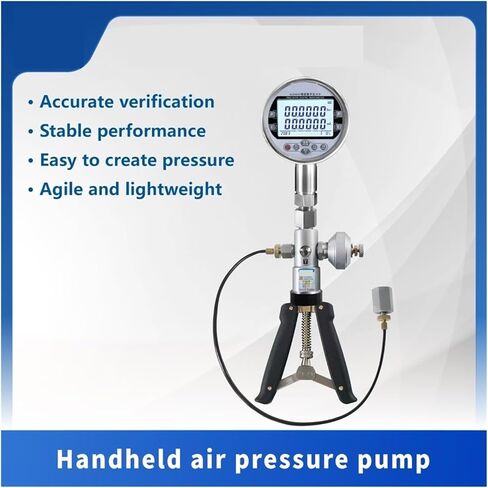

Handheld air pressure pump (Including pressure gauge and connector)
Model
ALKS504+ALKC400T+ALKJ01
Measuring range
-0.95~40bar (Optional within the range)
Accuracy
0.05%FS
Operationtemperature
0-50
Way of Pressure
Hand movement
Thread Joint
M20×1.5
Measurementmedium
Clean air
Display
Press the button to select 5 or 6 digits for display
DC working time
Voltage, current, switch on/off
DC Output
24VDC
Overload capacity
1.2 times the upper range limit
Power supply
External charger 220VAC 50Hz 3VA
Net weight
Approximately 4.8Kg
Size
430×110×60mm
Weight of instrumentbox
Approximately 6.8Kg
Instrument box size
490×300×130mm
Product weight
Approximately 7.8kg (packaging material is cardboard box)
Product packagingsize
530×350×160mm
Product standardconfiguration
Output port plugs (M20×1.5) ×1
Gaskets ( 19×3) ×4 pieces
O-ring ( 7.5×1.9) ×4 pieces
Pressure gauge charger ×1
Connecting hose ×1
Test line ×1 pair

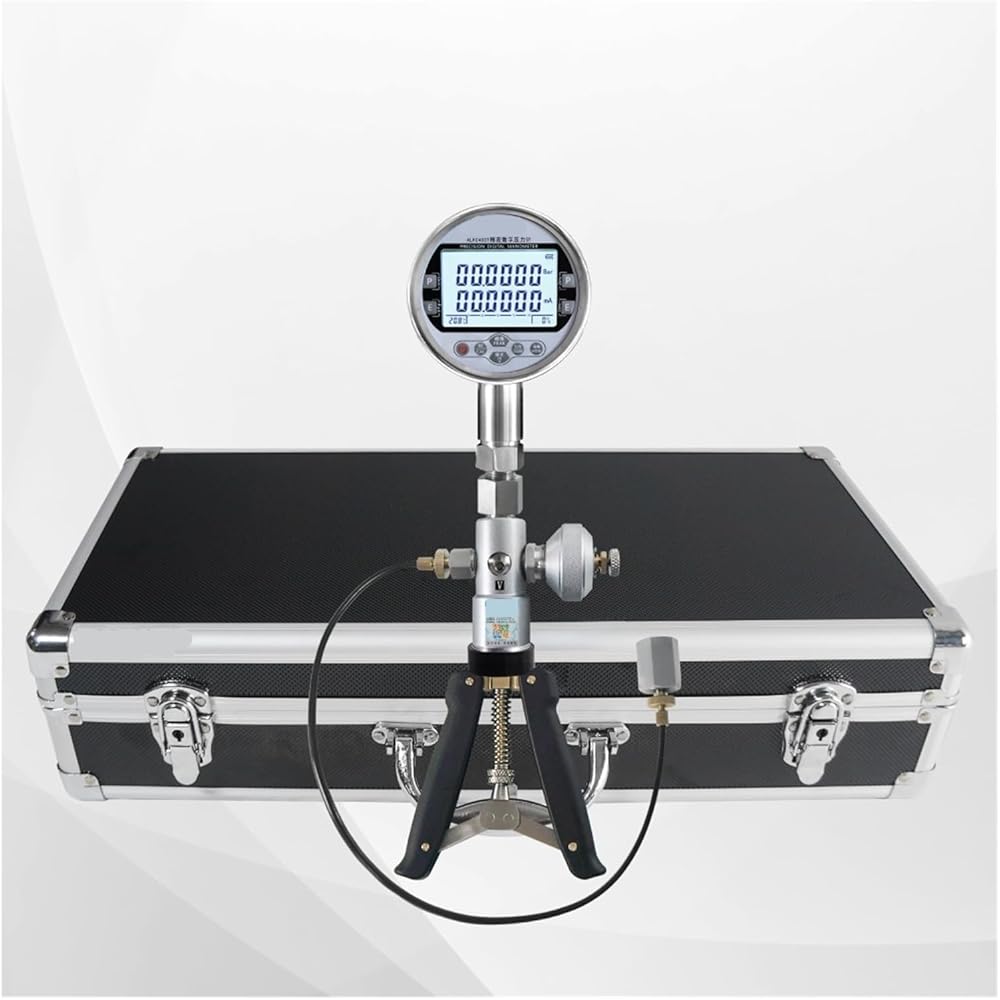

Instrument box × 1 piece
Matching Conversion Connector
The threads are as follows
G1/4(F)M20x1.5(M)
1 piece
NPT1/4(F)M20x1.5(M)
1 piece
BSP1/4(F)M20x1.5(M)
1 piece
G1/8(F)M20x1.5(M)
1 piece
BSP1/8(F)M20x1.5(M)
1 piece
M12x1.5(F)M20x1.5(M)
1 piece
NPT1/8(F)M20x1.5(M)
1 piece
M14x1.5(F)M20x1.5(M)
1 piece
BSP3/8(F)M20x1.5(M)
1 piece
NPT3/8(F)M20x1.5(M)
1 piece
G3/8(F)M20x1.5(M)
1 piece
NPT1/2(F)M20x1.5(M)
1 piece
BSP1/2(F)M20x1.5(M)
1 piece
G1/2(F)M20x1.5(M)
1 piece
==========
Model Number : ALKS504+ALKC400T+ALKJ01
Display Type : Digital
Origin : Mainland China
