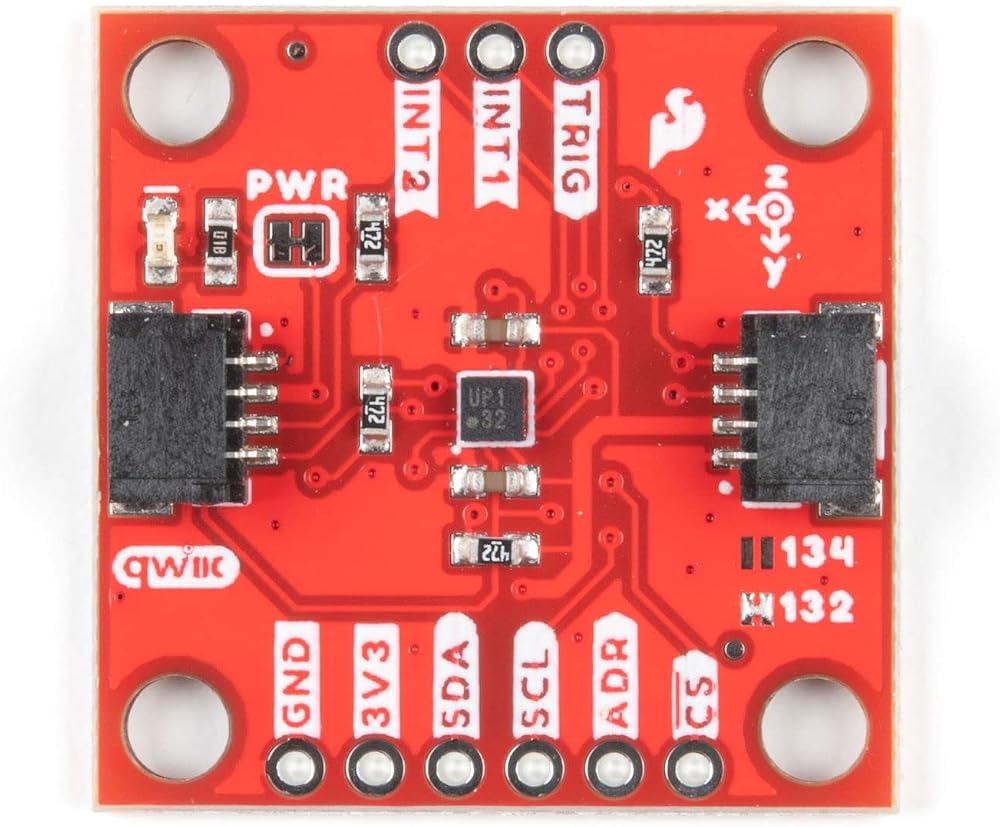

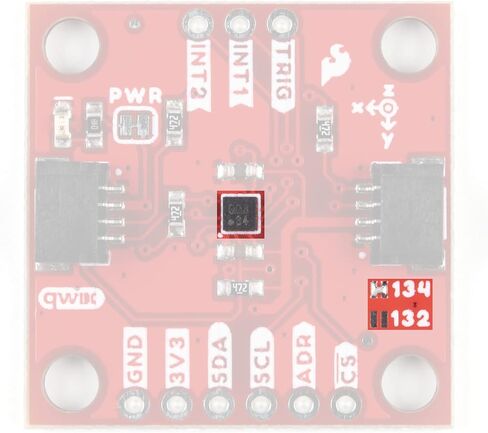

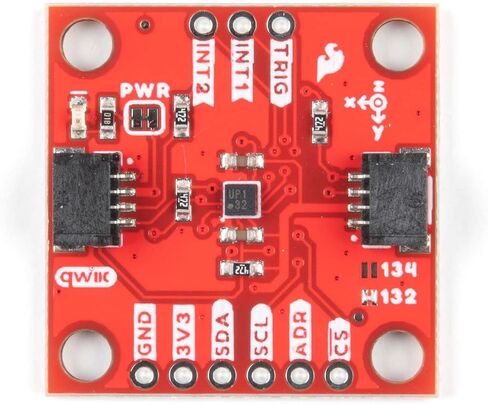

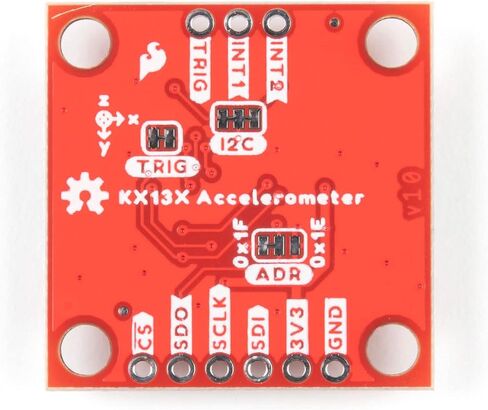

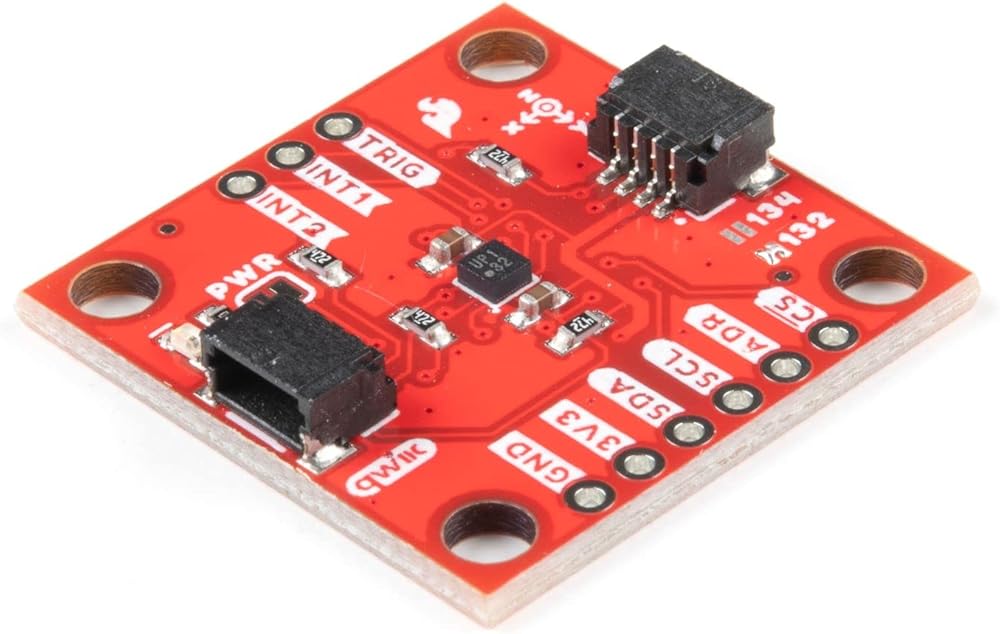

SparkFun Triple-Axis Accelerometer Breakout is a simple Qwiic breakout for the KX132 digital accelerometer from Kionix. KX132 is a low-power, 16-bit resolution three-axis accelerometer w/ 4 user-selectable acceleration measurement ranges of ±2g/4g/8g/16g & has up to a 10kHz(max) output data rate making it ideal for a wide range of acceleration measurements as well as high-speed applications such as vibration & tap sensing.

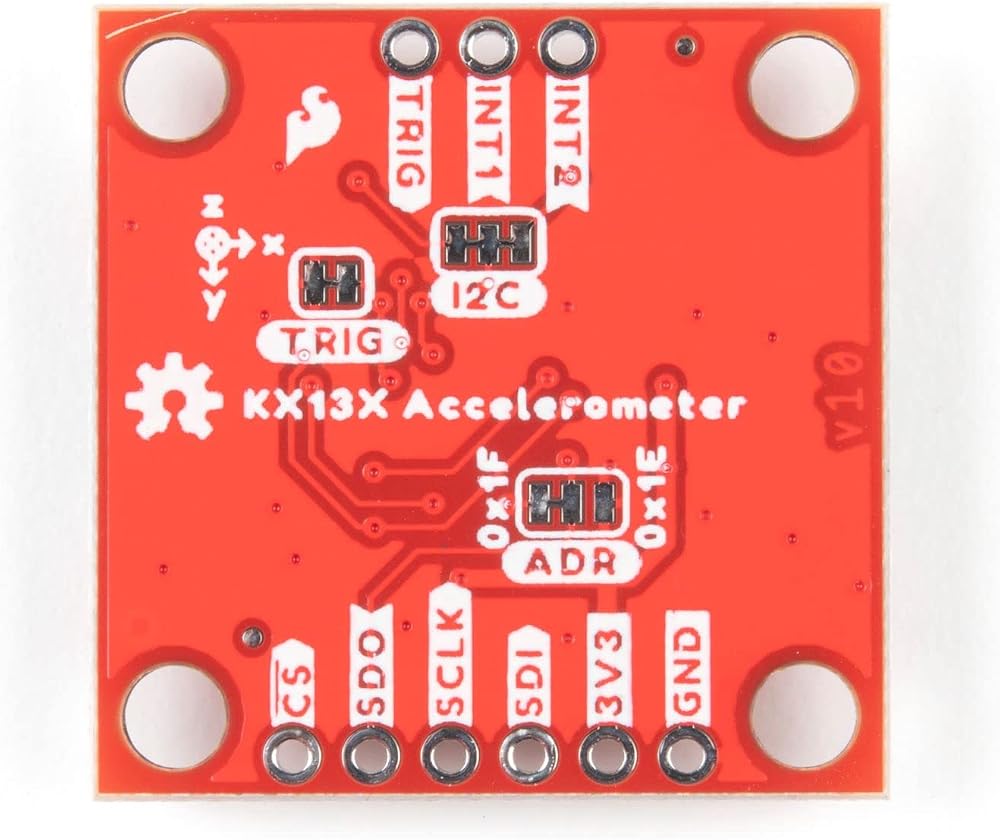

Includes host of features Freefall detection, Directional Tap & Double-Tap detection, tilt orientation detection & more. Qwiic KX132 can interface w/ controllers using both I2C & SPI at high speeds so you can use it in an existing Qwiic/I2C chain or on a SPI bus.
SparkFun Qwiic Connect System is an ecosystem of I2C sensors, actuators, shields & cables that make prototyping faster & less prone to error. All Qwiic-enabled boards use a common 1mm pitch, 4-pin JST connector. This reduces the amount of required PCB space, & polarized connections mean you can't hook it up wrong.
Measurement Range:±2g, ±4g, ±8g, ±16g(User Selectable)
High Resolution (8 or 16-bit)
User-Configurable Output Data Rate (ODR) up to 25600Hz
User-Configurable 3-stage Advanced Data Path featuring low-pass filter, low-pass/high-pass filter & RMS calculation engine
Wide range of built-in sensing functions:Free Fall, Directional-Tap/Double-Tap, Device Orientation & Activity Algorithms
Low Noise: 130µg/√Hz (varies based on ODR, power mode & other settings)
High Resolution Wake-Up & Back-to-Sleep Detection w/ configurable threshold as low as 3.9mg
512-byte FIFO buffer that continues recording data while being read
Selectable Low-Power or High-Performance operating modes
Low Power w/ Integrated Voltage Regulator
High Performance Operating Current Consumption (400Hz ODR + Wake-Up Detection):148µA: Low Power Operating Current Consumption(0.781Hz ODR + Wake-Up Detection):0.53µA, Standby Current Consumption:0.5µA
