Filter Valves
Specification

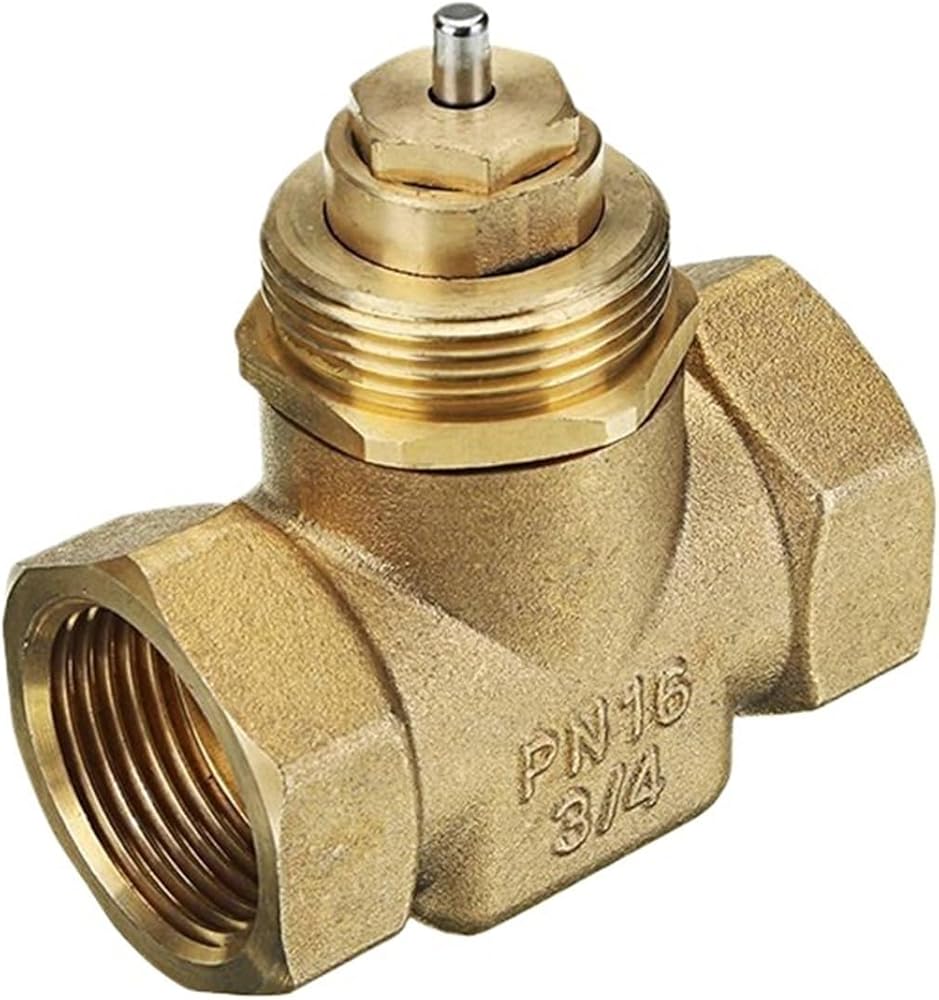

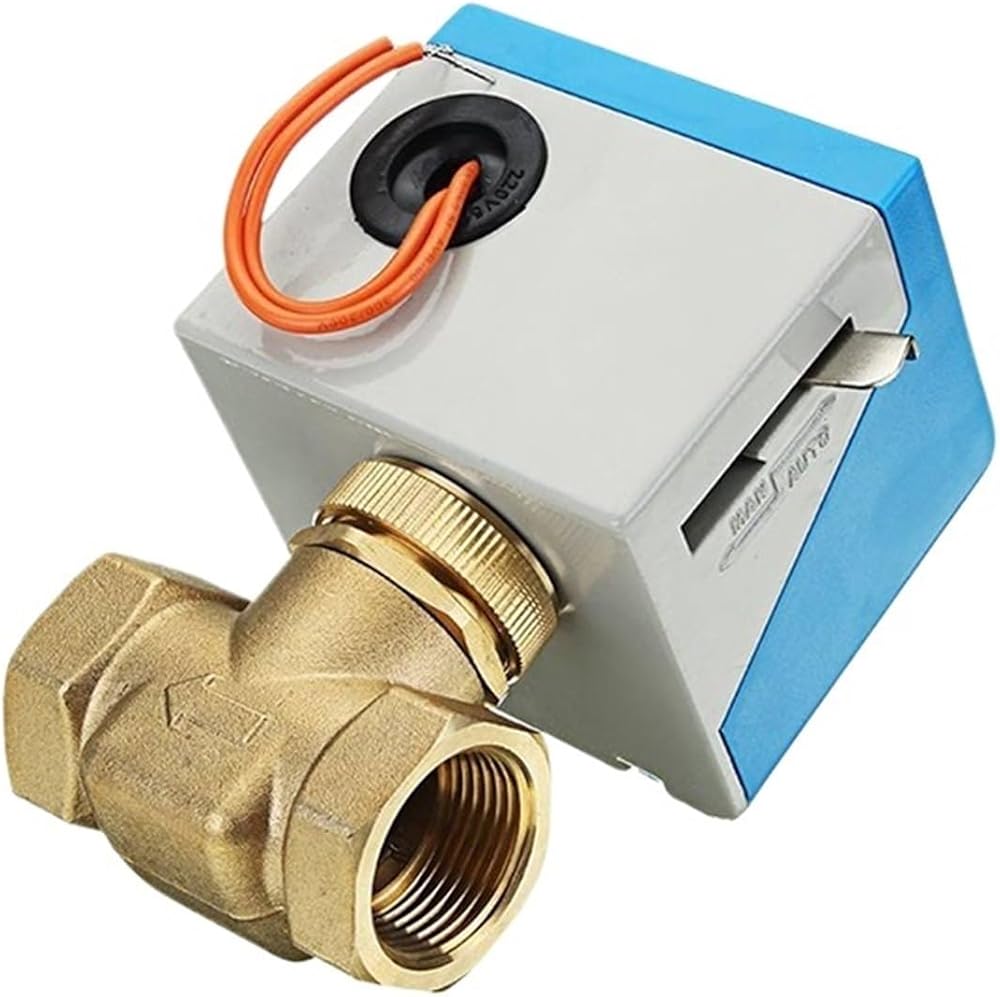

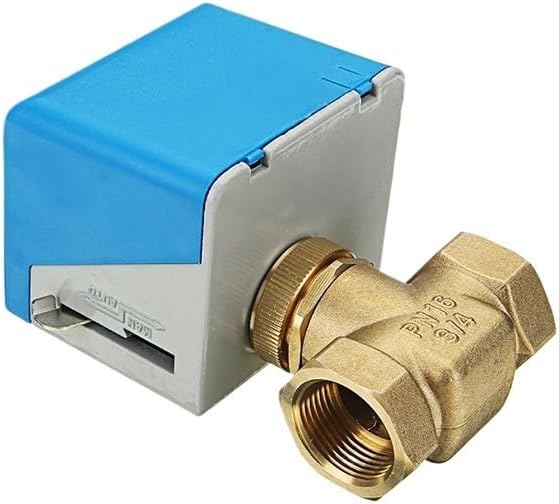

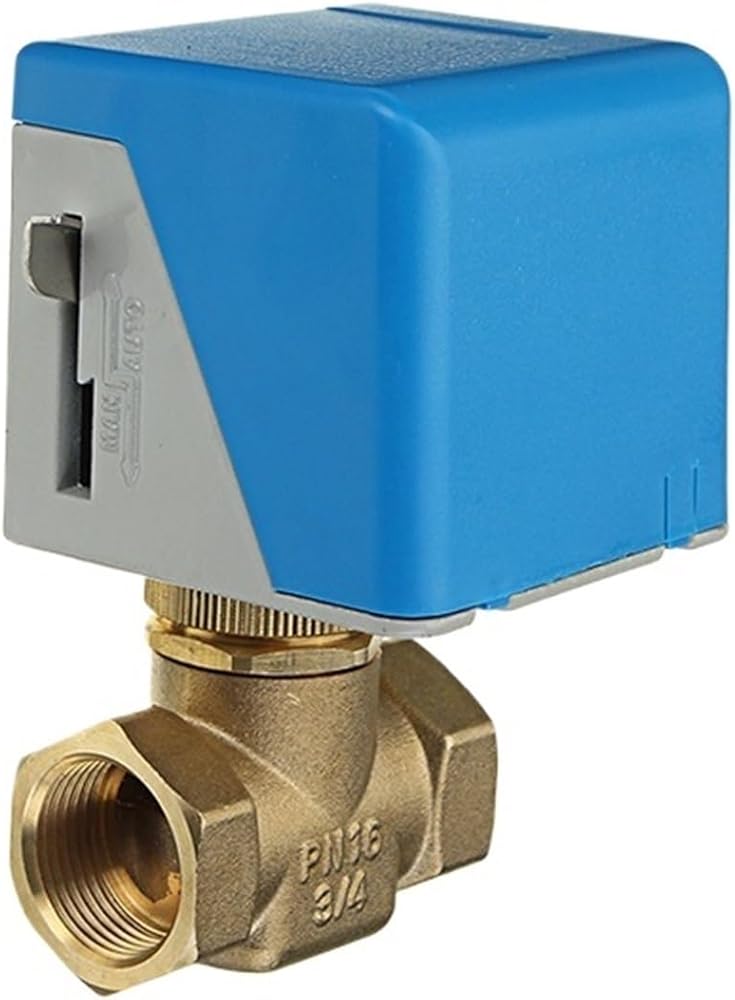

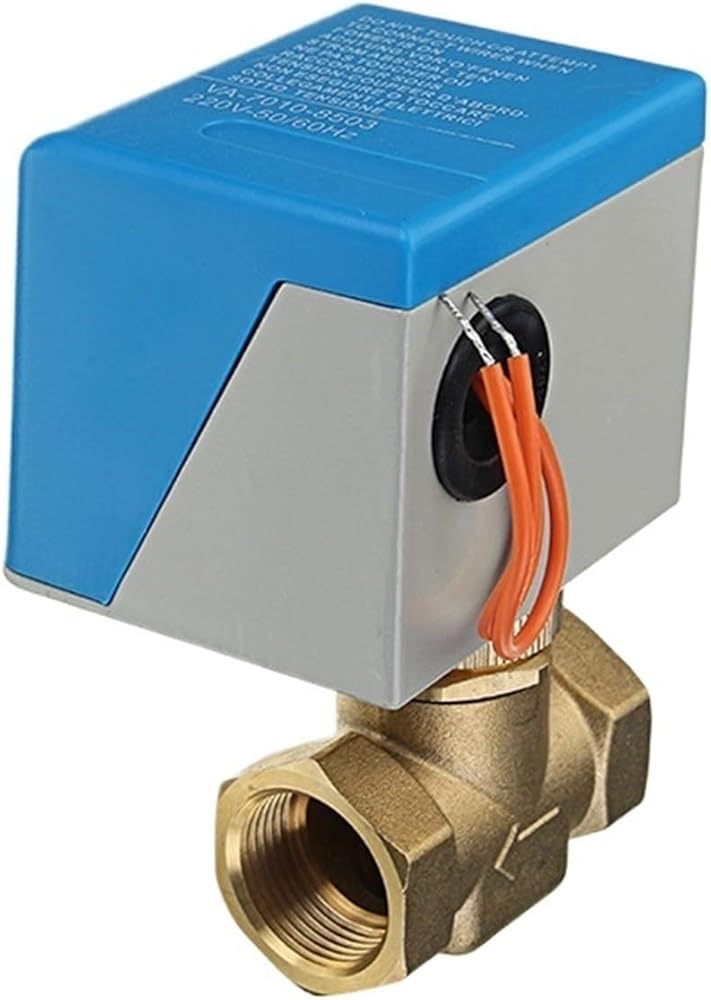

Valve Type: Globe Valve
Position Type: Normally Closed
Body Material: Brass
Sealing Disk Material: EPDM
Sealing Ring Material: FKM
Connector Type: G Thread Female
Nominal Pressure: 1.6MPa (PN16)
Environment Temperature: 0~60
KV (Flow Coefficient): 2.5
Shutoff Differential Pressure: 0.25Mpa
Voltage: AC 220V
Power Consumption: 2VA
Fully Open Time: 10s
Fully Close Time: 5s
Size: 3/4"(DN20)
NC or NO : Normally Closed
Structure : Shutoff
Port Size : 1/2" 3/4" 1" 1-1/4" 1-1/2" 2 inch
Media : Water
Material : BRASS
Temperature of Media : Normal Temperature
Pressure : Medium Pressure
Power Source : AC
