مميزات خاصة

【High precision measurement】:With micrometer level resolution, small measurement errors, and the ability to accurately capture small displacement changes, it meets the stringent requirements of precision machining and high-precision positioning
【Wide range adaptation】:The range covers from a few millimeters to several meters, and can be flexibly selected according to different application scenarios, balancing the needs of short stroke precision measurement and long stroke displacement detection
【Multi scenario universality】:Widely used in fields such as CNC machine tools, automated production lines, 3C electronic manufacturing, automotive parts testing, surveying instruments, etc., it is the core component for achieving intelligent manufacturing and precise control
【Diversified signal output】:Supports multiple output modes and seamlessly integrates with mainstream industrial control equipment such as PLC, CNC systems, servo drives, etc
【Industrial grade durability】:Adopting a metal shell and sealed structure, it has the ability to resist vibration, impact, and electromagnetic interference

وصف

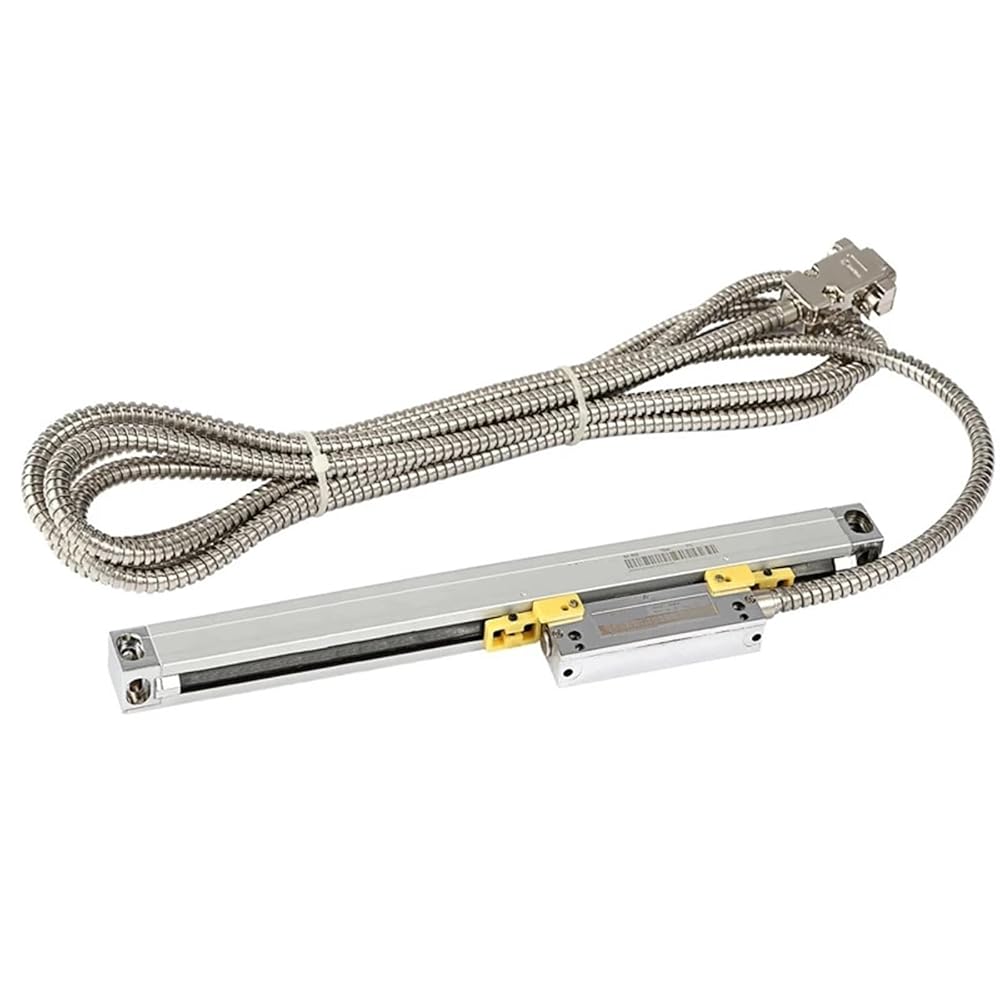

KA500 5um TTL Slim Linear Sensors, Thin Digital DRO Scale 70/520mm, 1pc
Linear Scale Parameter:
1. Travel (measuring) length: 70mm, 120mm, 170mm, 220mm, 270mm, 320mm, 370mm, 420mm, 470mm, 520mm
2. Plug: DB9
3. Resolution: 0.005mm
4. Input voltage: 5V
5. Grating pitch: 0.02mm
6. Cable length: 3 Meter
7. Slim size: 18*20 Slim Size
8. Output signal: TTL
9. Cross Section: 18mm X 20mm
Linear encoder/Linear scale pin wire
Pin 2 Black 0V
Pin 6 Green A
Pin 7 Red 5V
Pin 8 Orange B
Pin 9 Z signal
Battery Included : No
High-concerned chemical : None
Electronic : No
Capacity : 70-520MM
Model Number : KA500
Type : Linear Scale
Product name : Thin linear scale
Signal cable length : 3 meter
Dust cover type : H type full cover
Cross section size : 18mmx20mm
Travel length : 70mm to 520mm
Resolution : 0.005mm / 5um
Output signal : TTL signal
Voltage : 5VDC
Plug : DB9
