مميزات خاصة

【High precision measurement】:With micrometer level resolution, small measurement errors, and the ability to accurately capture small displacement changes, it meets the stringent requirements of precision machining and high-precision positioning
【Wide range adaptation】:The range covers from a few millimeters to several meters, and can be flexibly selected according to different application scenarios, balancing the needs of short stroke precision measurement and long stroke displacement detection
【Multi scenario universality】:Widely used in fields such as CNC machine tools, automated production lines, 3C electronic manufacturing, automotive parts testing, surveying instruments, etc., it is the core component for achieving intelligent manufacturing and precise control
【Diversified signal output】:Supports multiple output modes and seamlessly integrates with mainstream industrial control equipment such as PLC, CNC systems, servo drives, etc
【Industrial grade durability】:Adopting a metal shell and sealed structure, it has the ability to resist vibration, impact, and electromagnetic interference

وصف

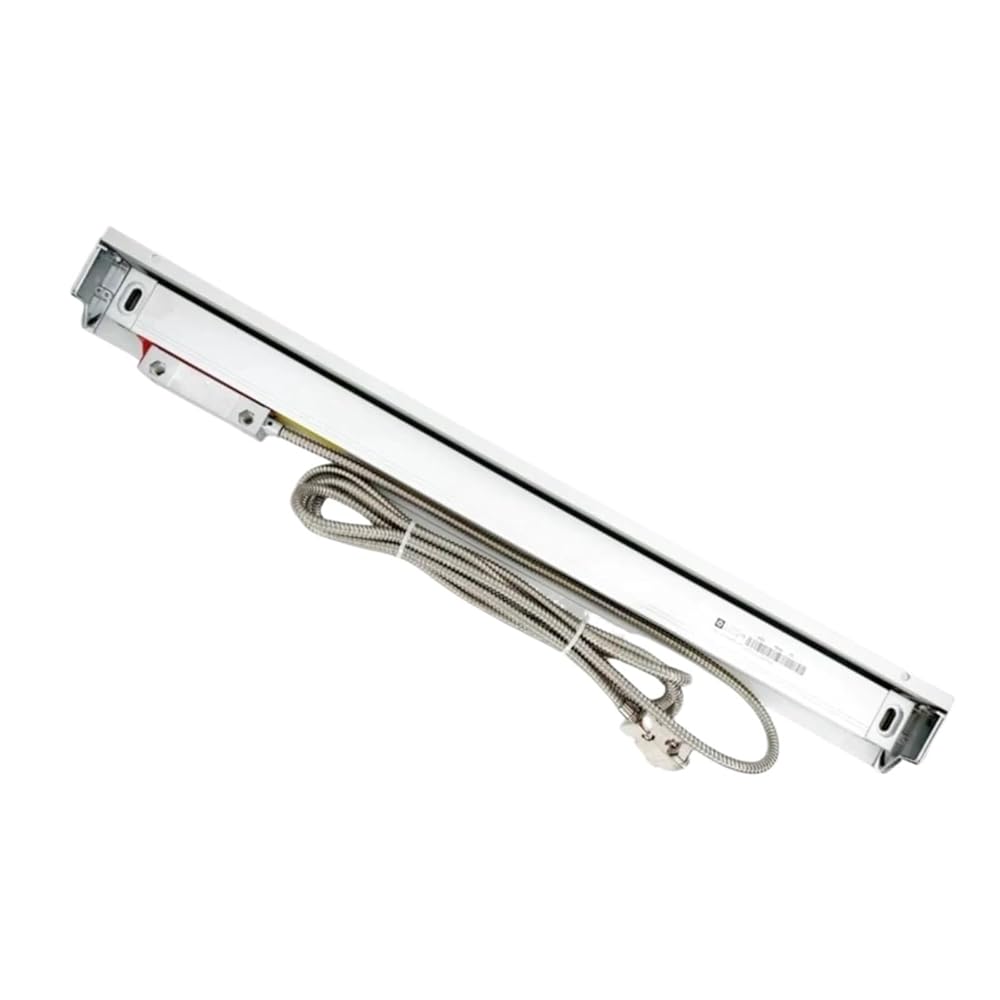

KA35 0.005mm TTL DRO 450-800mm Linear Sensors, Optical Encoder Optical Grating Ruler, 1pc
Model: KA35
Available measurement: 450mm to 800mm
Total length: measurement +140mm
Dimensions Cross section dimensions: 21.5mmx33.5mm
Input voltage: 5VDC
Power supply: +5V±5%,80mA
Moving speed:60m/min
Output signal: TTL
Connector: 9 pin socket
Resolution: 5um/0.005mm
Cable length: 3 meters
Battery Included : No
High-concerned chemical : None
Product name : linear scale
Travel length : 450 500 550 600 650 700 750 800mm
Input voltage : 5VDC
Output signal : TTL
Resolution : 0.005mm/5um
Cable length : 3 meters
Scale overall length : Travel+140mm
Installation holes distance : Travel+124mm
Cross section size : 21.5mmx33.5mm
Application : Mill, Lathe, Grinder, CNC Etc.
