مميزات خاصة

【High precision measurement】:With micrometer level resolution, small measurement errors, and the ability to accurately capture small displacement changes, it meets the stringent requirements of precision machining and high-precision positioning
【Wide range adaptation】:The range covers from a few millimeters to several meters, and can be flexibly selected according to different application scenarios, balancing the needs of short stroke precision measurement and long stroke displacement detection
【Multi scenario universality】:Widely used in fields such as CNC machine tools, automated production lines, 3C electronic manufacturing, automotive parts testing, surveying instruments, etc., it is the core component for achieving intelligent manufacturing and precise control
【Diversified signal output】:Supports multiple output modes and seamlessly integrates with mainstream industrial control equipment such as PLC, CNC systems, servo drives, etc
【Industrial grade durability】:Adopting a metal shell and sealed structure, it has the ability to resist vibration, impact, and electromagnetic interference

وصف

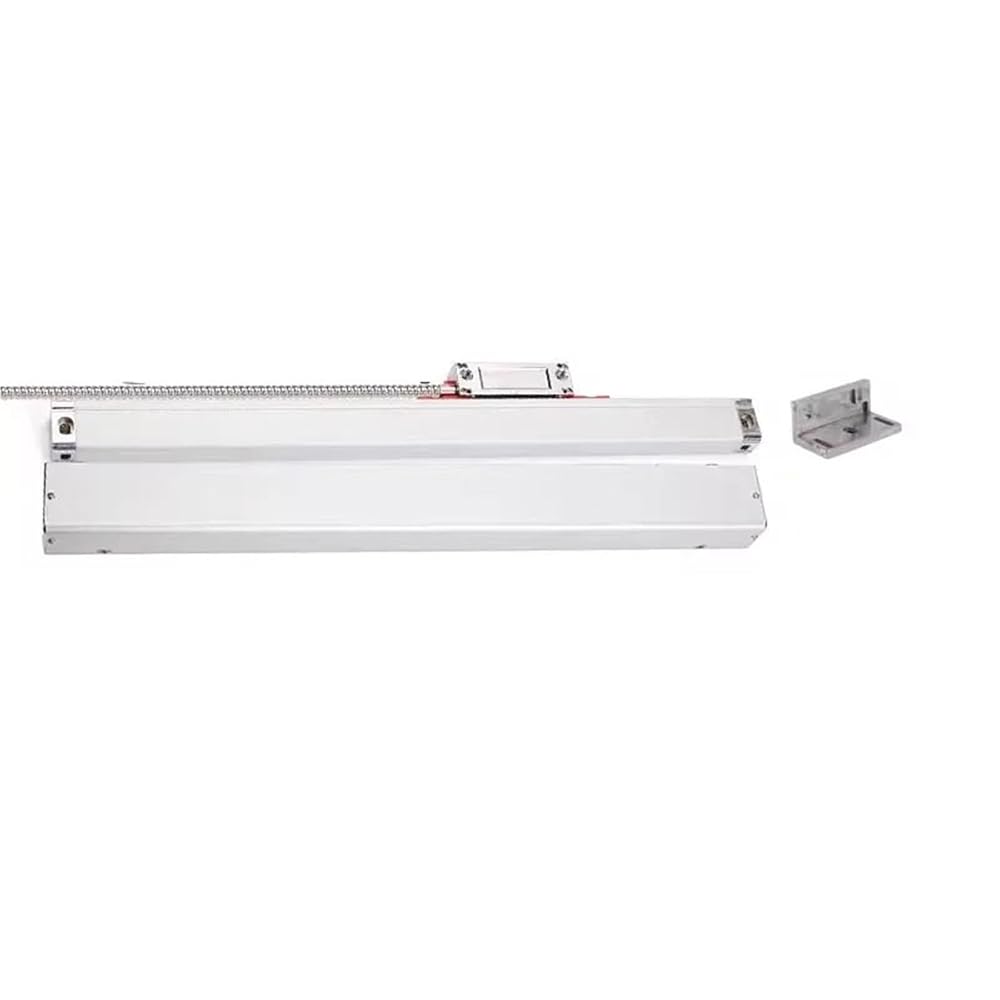

KA300 220-420mm 1micron TTL Linear Scale Encoder, Linear Sensors for Milling Lathe Machine, 1pc
2. Total (overall) length: Travel length + 106mm
3. Plug: DB9
4. Resolution: 0.001mm (1um/1micron)
5. Output signal: TTL signal
6. Input voltage: 5V
7. Grating pitch: 0.004mm
8. Cable length: 3 Meter / 118 inch
9. Scale width*height size: 21*34mm
10. KA-300 grating ruler is a kind of grating ruler which is widely used. It has reasonable structure,the shape design is beautiful, good rigidity, can meet the majority of general machine tool users use, use longDegree in 70~1020mm.
11. Moving speed: high speed ruler 120 m/min(customize), Ordinary ruler 60m/min
12. Power supply: +5V + 5%, 80mA
13. Working temperature: 0~45 degree
Battery Included : No
High-concerned chemical : None
Model Number : KA300
Resolution : 1um / 0.001mm
Voltage : 5V
Output signal : TTL
Cable length : 3 meter
Accuracy : +-3 to 6um
