مميزات خاصة

【High precision measurement】:With micrometer level resolution, small measurement errors, and the ability to accurately capture small displacement changes, it meets the stringent requirements of precision machining and high-precision positioning
【Wide range adaptation】:The range covers from a few millimeters to several meters, and can be flexibly selected according to different application scenarios, balancing the needs of short stroke precision measurement and long stroke displacement detection
【Multi scenario universality】:Widely used in fields such as CNC machine tools, automated production lines, 3C electronic manufacturing, automotive parts testing, surveying instruments, etc., it is the core component for achieving intelligent manufacturing and precise control
【Diversified signal output】:Supports multiple output modes and seamlessly integrates with mainstream industrial control equipment such as PLC, CNC systems, servo drives, etc
【Industrial grade durability】:Adopting a metal shell and sealed structure, it has the ability to resist vibration, impact, and electromagnetic interference

وصف

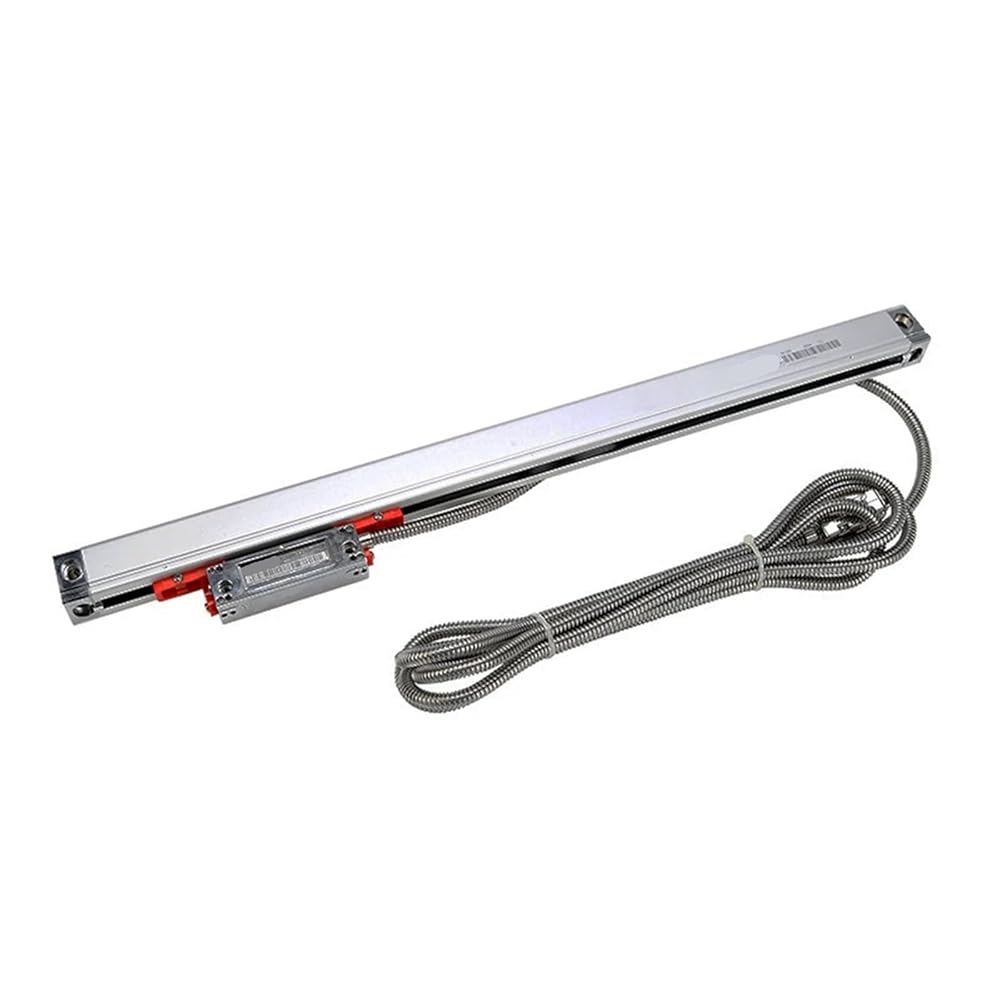

KA300 0.005mm Optical Grating Ruler Sensor Linear Sensors, for DRO Lathe Milling Machine TTL 70m-420mm, 1pc
Linear Ruler Parameter
1. Travel (measuring) length: 0-1020mm / 0-40 inch
2. Total (overall) length: Travel length + 106mm
3. Plug: DB9
4. Resolution: 0.005mm
5. Input voltage: 5V
6. Grating pitch: 0.02mm (50LP/min)
7. Cable length: 3 Meter (about 9 feet)
8. Normal size: About 25*34
The Signal of Linear scale
Pin 2 Black 0V
Pin 6 Green A
Pin 7 Red 5V
Pin 8 White B
High-concerned chemical : None
Electronic : No
Type : Linear Scale
Model Number : KA300
DIY Supplies : Electrical
Resolution : 5um/0.005mm
Application : Mill, Lathe, Grinder, CNC etc.
Max of Measuring speed : 60m/min
Input voltage : 5VDC
Cross Section Dimension : 25mm* 34.5mm
Scale overall length : Travel+106mm
Operating temperature : 0-50°c
Installation holes distance : Travel+90mm
Total Length : Travel+106mm
Interface Typ : 20um
Cable length : 3 meters
