مميزات خاصة

【High precision measurement】:With micrometer level resolution, small measurement errors, and the ability to accurately capture small displacement changes, it meets the stringent requirements of precision machining and high-precision positioning
【Wide range adaptation】:The range covers from a few millimeters to several meters, and can be flexibly selected according to different application scenarios, balancing the needs of short stroke precision measurement and long stroke displacement detection
【Multi scenario universality】:Widely used in fields such as CNC machine tools, automated production lines, 3C electronic manufacturing, automotive parts testing, surveying instruments, etc., it is the core component for achieving intelligent manufacturing and precise control
【Diversified signal output】:Supports multiple output modes and seamlessly integrates with mainstream industrial control equipment such as PLC, CNC systems, servo drives, etc
【Industrial grade durability】:Adopting a metal shell and sealed structure, it has the ability to resist vibration, impact, and electromagnetic interference

وصف

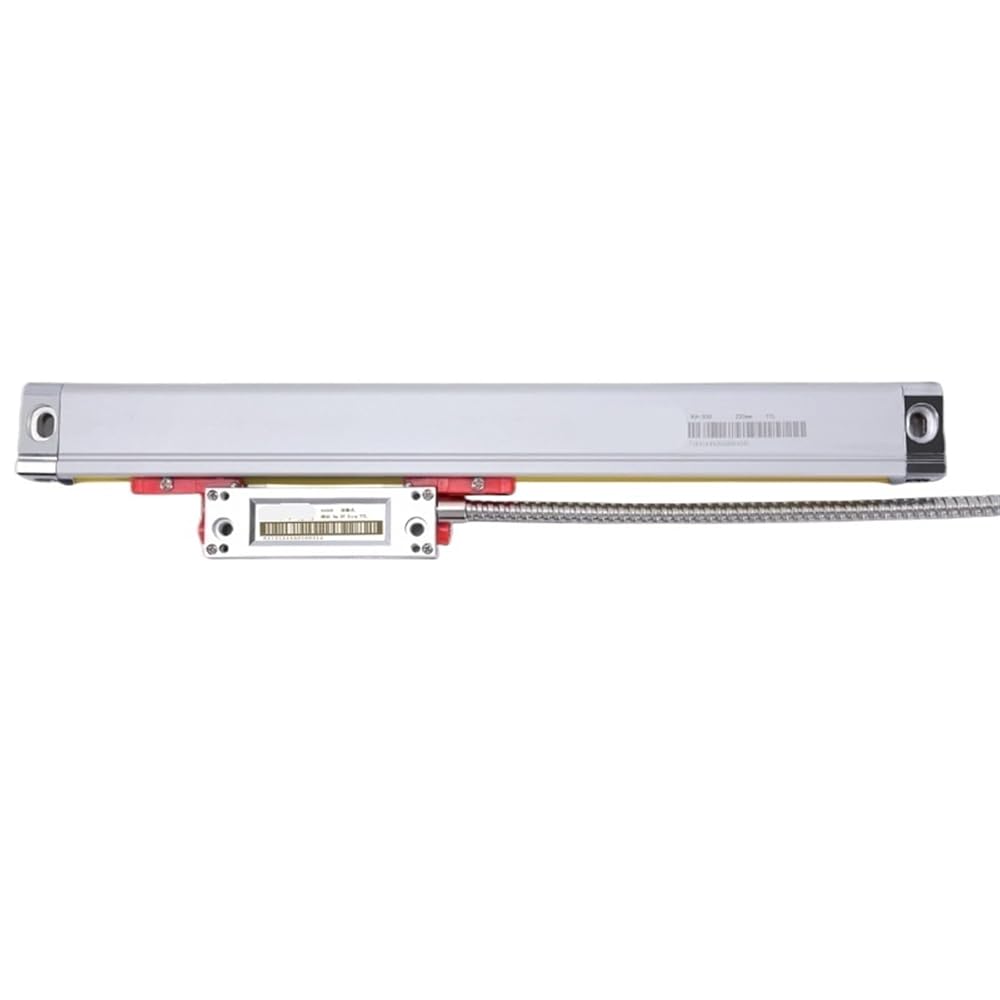

DRO Slim Linear Scale, 1um TTL Lathe Mill Machine 70-420mm 25x34mm Encoder Grating Ruler Sensor, 1pc
Model: KA300
Available measurement: 70mm to 1020mm
Installation holes distance:measurement +90mm
Total length: measurement +106mm
Dimensions Cross section dimensions: 25mmx34.5mm
Input voltage: 5VDC
Output signal: TTL
Resolution: 1um/0.001mm
Cable length: 3 meters
Battery Included : No
High-concerned chemical : None
Model Number : KA300
Product name : linear scale
Travel length : 70mm-420mm
Input voltage : 5VDC
Output signal : TTL
Resolution : 0.001mm/1um
Cable length : 3 meters
Scale overall length : Travel+106mm
Installation holes distance : Travel+90mm
Cross section size : 25mm x 34.5mm
Application : Mill, Lathe, Grinder, CNC Etc.
