مميزات خاصة

【High precision measurement】:With micrometer level resolution, small measurement errors, and the ability to accurately capture small displacement changes, it meets the stringent requirements of precision machining and high-precision positioning
【Wide range adaptation】:The range covers from a few millimeters to several meters, and can be flexibly selected according to different application scenarios, balancing the needs of short stroke precision measurement and long stroke displacement detection
【Multi scenario universality】:Widely used in fields such as CNC machine tools, automated production lines, 3C electronic manufacturing, automotive parts testing, surveying instruments, etc., it is the core component for achieving intelligent manufacturing and precise control
【Diversified signal output】:Supports multiple output modes and seamlessly integrates with mainstream industrial control equipment such as PLC, CNC systems, servo drives, etc
【Industrial grade durability】:Adopting a metal shell and sealed structure, it has the ability to resist vibration, impact, and electromagnetic interference

وصف

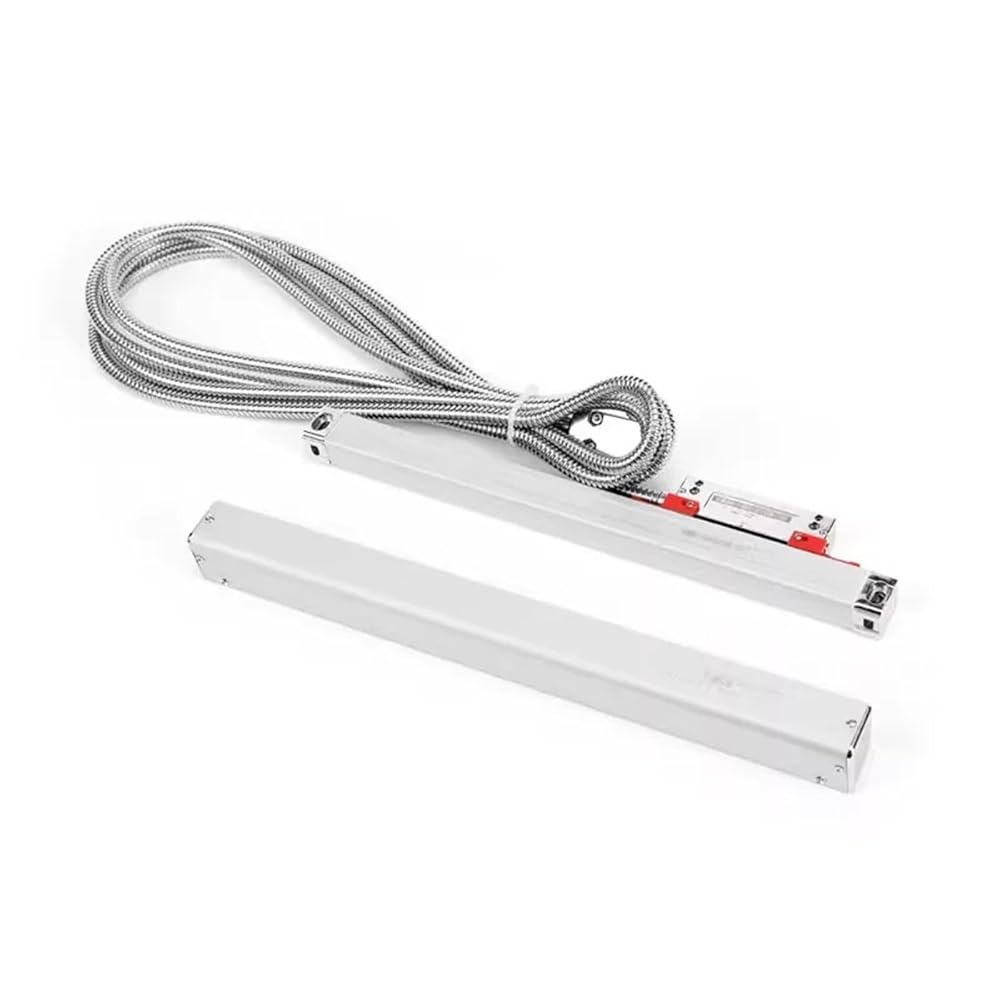

KA500 70/470mm Linear Scale, 1microm Slim Linear Encoder Grating Glass Scale Ruler, 1pc
Resolution :1 micron / 0.001mm
Signal : TTL square wave / EIA-442 (option cost extra)
Voltage:5V DC
Cable length:3meter
Battery Included : No
High-concerned chemical : None
Model Number : KA500
width*height dimension : 18*20mm
Output signal : TTL square wave
Connector : 9DB pin
Supply Voltage : 5VDC
Resolution : 1um / 0.001mm
singal cable length : 3 meter
Application : milling machine , lathe machine ,etc measuring machine
