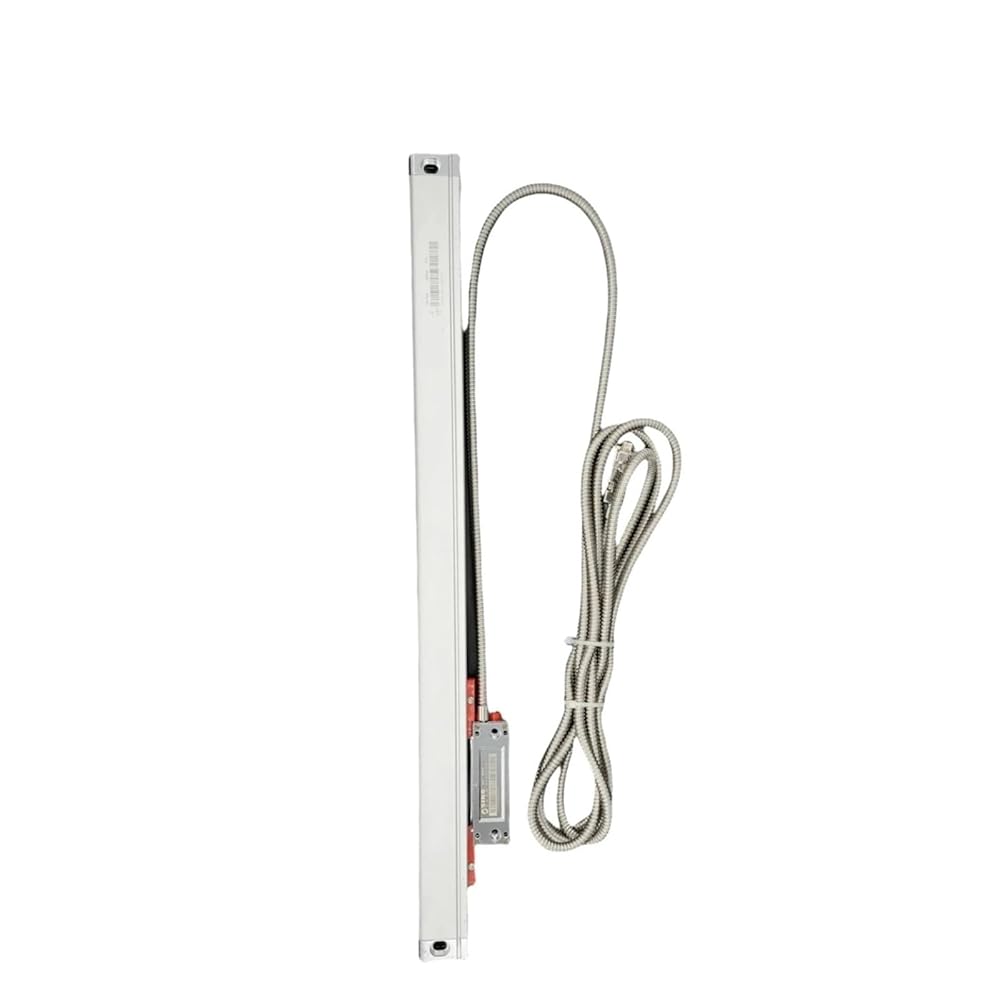

DRO Linear Scale Sensors, 5um TTL Lathe Mill Machine KA300 70mm-420mm Grating Ruler Optical Encoder, 1pc
Model: KA300
Available measurement: 70mm to 420mm
Total length: measurement+106mm
Size cross section size: 25mmx34.5mm
Input voltage: 5VDC
Output signal: TTL
Resolution: 5um/0.005mm
Cable length: 3meters
Specifications:
Model: KA300
Scale cable: 3 meters
Resolution: 5um
Scale available travel length: 70mm-420mm
Total Length: Measurement + 106mm
Output Signal: TTL
Features:
**Precision and Versatility**
The High Precision Milling Lathe Grinder DRO Linear Glass Scale is a state-of-the-art tool designed for professionals who demand the highest level of accuracy in their machining processes. With a resolution of 5um/0.005mm, this scale ensures precise measurements, making it ideal for a wide range of applications, from turning lathes to milling machines and grinders. The scale's overall length, including the travel and mounting bracket, is 106mm longer than the measurement range, providing ample space for installation and adjustment.
Battery Included : No
High-concerned chemical : None
Model Number : KA300
Product name : linear scale
Travel length : 70mm 120mm 170mm 220mm 270mm 320mm 370mm 420mm
Input voltage : 5VDC
Output signal : TTL
Resolution : 0.005mm/5um
Cable length : 3 meters
Scale overall length : Travel+106mm
Installation holes distance : Travel+90mm
Cross section size : 25mm*34.5mm
Application : Mill, Lathe, Grinder, CNC Etc.
