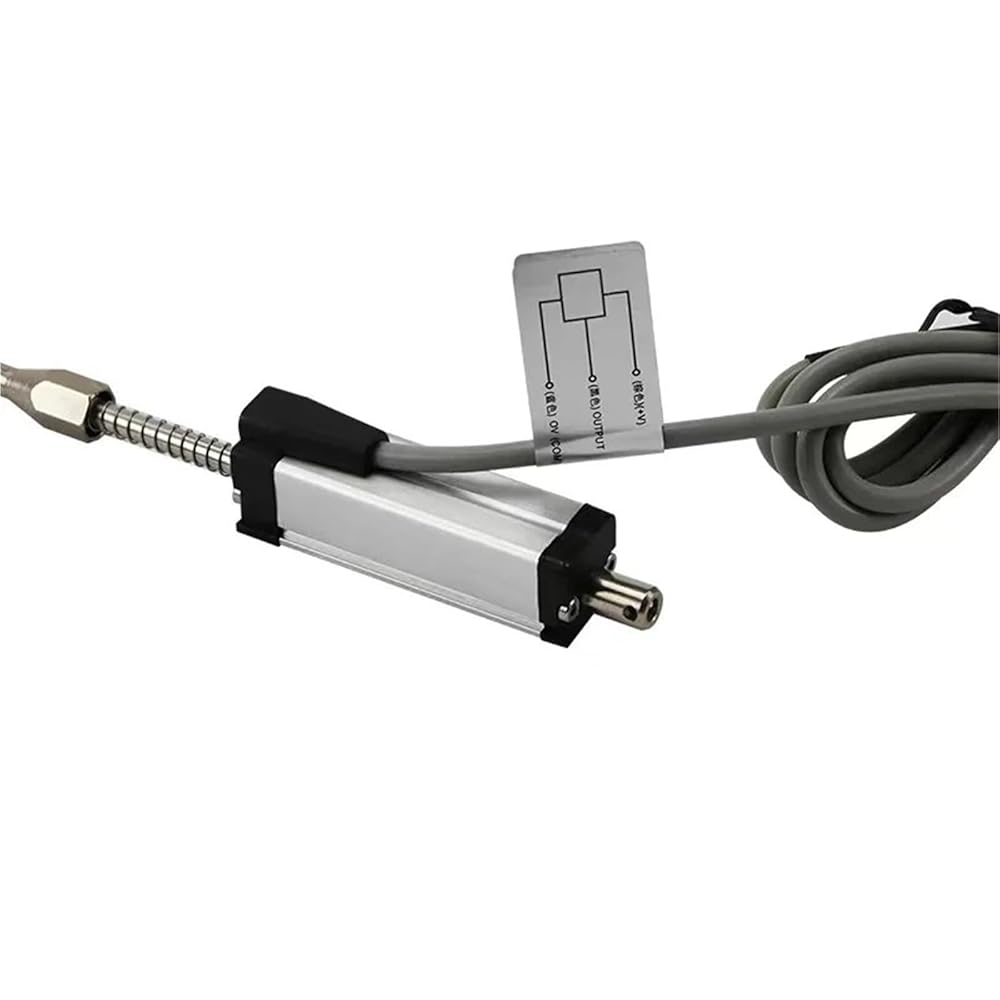

KTR 4-20mA 5-100mm Linear Position Sensor, Spring Self-Return Displacement Transducer Accuracy, 1pc(25mm-Built in Spring) in Saudi Arabia

KTR 4-20mA 5-100mm Linear Position Sensor, Spring Self-Return Displacement Transducer Accuracy, 1pc(10mm-Built in Spring)

SAR 698
Brand
LOXNVUY
Category
Sensors
Weight
0.6 kg
Color10mm-Built in Spring
– 1 +

Special Features

  • 【High precision measurement】:With micrometer level resolution, small measurement errors, and the ability to accurately capture small displacement changes, it meets the stringent requirements of precision machining and high-precision positioning
  • 【Wide range adaptation】:The range covers from a few millimeters to several meters, and can be flexibly selected according to different application scenarios, balancing the needs of short stroke precision measurement and long stroke displacement detection
  • 【Multi scenario universality】:Widely used in fields such as CNC machine tools, automated production lines, 3C electronic manufacturing, automotive parts testing, surveying instruments, etc., it is the core component for achieving intelligent manufacturing and precise control
  • 【Diversified signal output】:Supports multiple output modes and seamlessly integrates with mainstream industrial control equipment such as PLC, CNC systems, servo drives, etc
  • 【Industrial grade durability】:Adopting a metal shell and sealed structure, it has the ability to resist vibration, impact, and electromagnetic interference

Description

KTR 4-20mA 5-100mm Linear Position Sensor, Spring Self-return Displacement Transducer Accuracy, 1pc
Function:
Automatic locking screw machine, paper packaging machinery, printing
equipment, automatic plate feeding machine and cement block thickness, etc.
Measure Stroke: 5-100mm(150mm available also)
Output Module: 2K/5K (Default option)
Other output signals will have to add a transmitter to convert the corresponding signal
4-20mA: A2 A3
V1:0-5v V2:0-10v
RS485
Inside Spring: Built-in Spring
Outside Spring: Probe Head /Roller head
Shell is for anode, Can anti-corrosion. With automatic electrical grounding function.
Feature:
1.Volume Smaller
2.Usage Life ls Longer, Times Could Reach Thirty Million
3.Sensor with Back Spring
4.It is suitable for the equipment without installation and alignment of the push Rod
5.Din Standard Contact Point
6.Double Bearing Typebar
7.Don't Affect with An External impact And Vibration
8.Cable Type Connection
High-concerned chemical : None
Electronic : No
Type : KTR
Model Number : 4-20mA
DIY Supplies : Electrical
Output : A2,A3
