مميزات خاصة

【High precision measurement】:With micrometer level resolution, small measurement errors, and the ability to accurately capture small displacement changes, it meets the stringent requirements of precision machining and high-precision positioning
【Wide range adaptation】:The range covers from a few millimeters to several meters, and can be flexibly selected according to different application scenarios, balancing the needs of short stroke precision measurement and long stroke displacement detection
【Multi scenario universality】:Widely used in fields such as CNC machine tools, automated production lines, 3C electronic manufacturing, automotive parts testing, surveying instruments, etc., it is the core component for achieving intelligent manufacturing and precise control
【Diversified signal output】:Supports multiple output modes and seamlessly integrates with mainstream industrial control equipment such as PLC, CNC systems, servo drives, etc
【Industrial grade durability】:Adopting a metal shell and sealed structure, it has the ability to resist vibration, impact, and electromagnetic interference

وصف

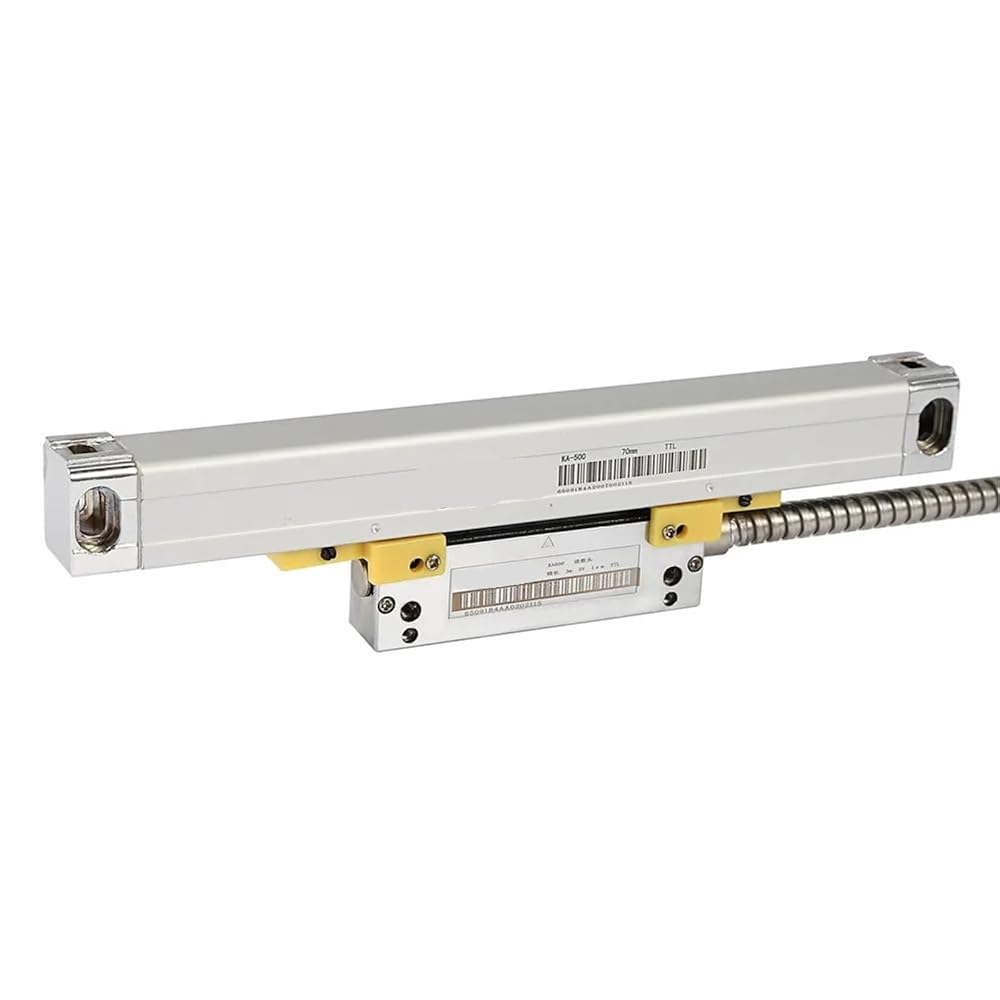

KA500 70/520mm Slim Scale, Linear Sensors 0.005mm Small Thin Linear Encoder, 1pc
Available Measrus Length: 70mm-520mm
Cross Section: 18mm X 20mm
Accuracy: +/- 3, 5, 10 (20 degree, 680 F 1000mm)
Max of Measuring speed: 60m/min
Reference point: one unit per 50mm
Protection level: IP55
Resolution: 5um(0.005mm)
Output signal: TTL
Cable standard: 3 meters
Connetor: 9 Pins
Scale wiring diagram
Scale drawing & Size
Battery Included : No
High-concerned chemical : None
Model Number : Sino KA-500
Procut name : KA500 linear scale
Travel length : 70mm-520mm
Input voltage : 5VDC
Output signal : TTL
Resolution : 0.005mm/5um
Cross section size : 18mmx20mm
Cable length : 3 meters
Scale overall length : Travel+110mm
Installation holes distance : Travel+100mm
