【High precision measurement】:With micrometer level resolution, small measurement errors, and the ability to accurately capture small displacement changes, it meets the stringent requirements of precision machining and high-precision positioning
【Wide range adaptation】:The range covers from a few millimeters to several meters, and can be flexibly selected according to different application scenarios, balancing the needs of short stroke precision measurement and long stroke displacement detection
【Multi scenario universality】:Widely used in fields such as CNC machine tools, automated production lines, 3C electronic manufacturing, automotive parts testing, surveying instruments, etc., it is the core component for achieving intelligent manufacturing and precise control
【Diversified signal output】:Supports multiple output modes and seamlessly integrates with mainstream industrial control equipment such as PLC, CNC systems, servo drives, etc
【Industrial grade durability】:Adopting a metal shell and sealed structure, it has the ability to resist vibration, impact, and electromagnetic interference

وصف

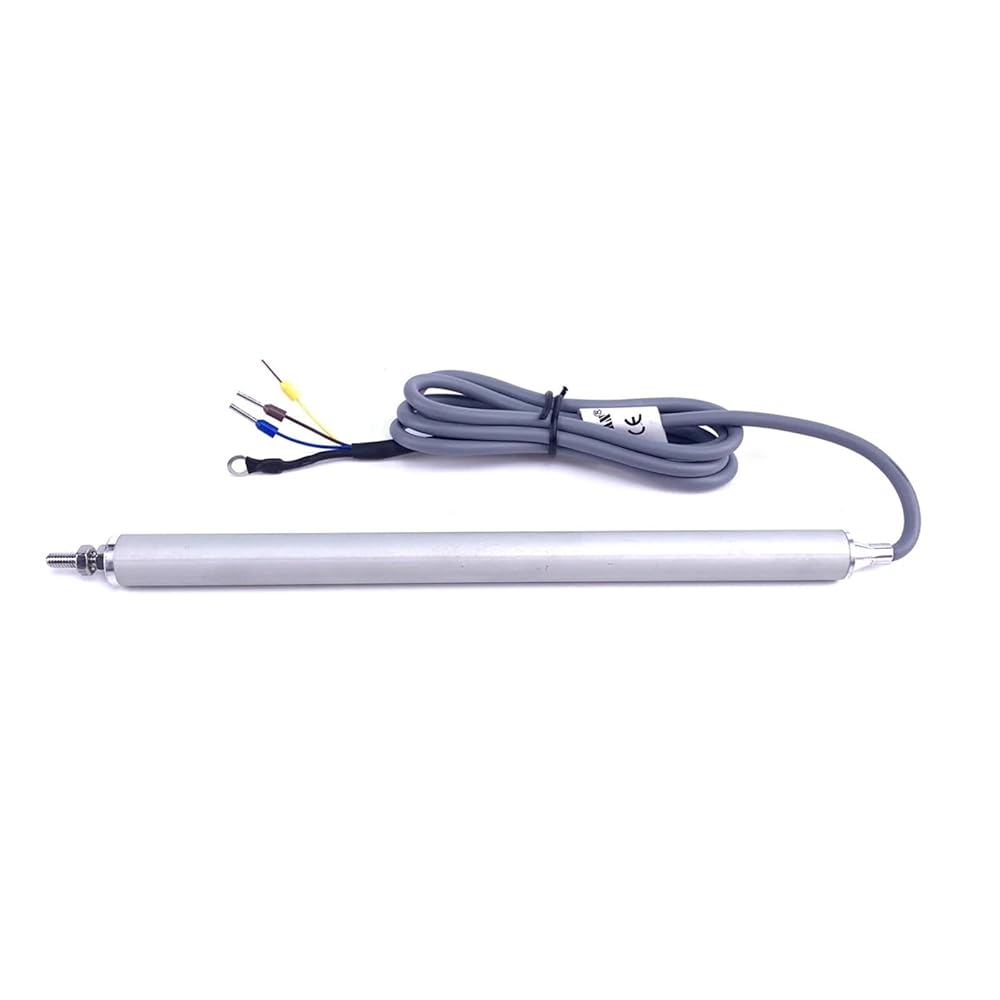

KPM12 25-300mm Rod Linear Potentiometer Displacement Transducer, Resistance Sensor, 1pc
Applications
KPM12 is a rod type, Suitable for short range and swinging moments, such like: robots, brick machines, ceramic machines, sluice gate, footwear machines and so on.
Theory : Resistance Sensor
Model Number : KPM12
Material : Metal
Type : vibration sensor
Output : Analog Sensor
Use : Position Sensor
Effective Stroke Length : 25-300mm
Resistance : 5Kohm
Power Supply : 12-24VDC
Temperature : -40~+120
Precision : ±0.1%
Current : 1mA
Max Motion Speed : 5m/s
Resolution : Infinite
Diameter : 12mm
