مميزات خاصة

【Product Structure】: Heat-treated and electroplated for high hardness, enhancing the coupling's durability and ensuring long-term stable performance.
【Simple Installation】: The shaft coupling securely fastens the shaft to a flat surface and allows easy installation of additional accessories onto the shaft.
【Inner Hole H7】: Standard inner hole tolerance for a strong, secure lock.
【Encoder-Specific Design】: Supports forward, reverse, and dual-direction mounting with complementary convex/concave structures for diverse machine configurations.
【Primary Applications】: Suitable for connecting servo motors, stepper motors, encoders, and similar components.

وصف

Standard or Nonstandard : Standard
Flexible or Rigid : Flexible
Model Number : D23L32 series
Material : Aluminium
Structure : Universal
Origin : China
Certification : CE,RoHS

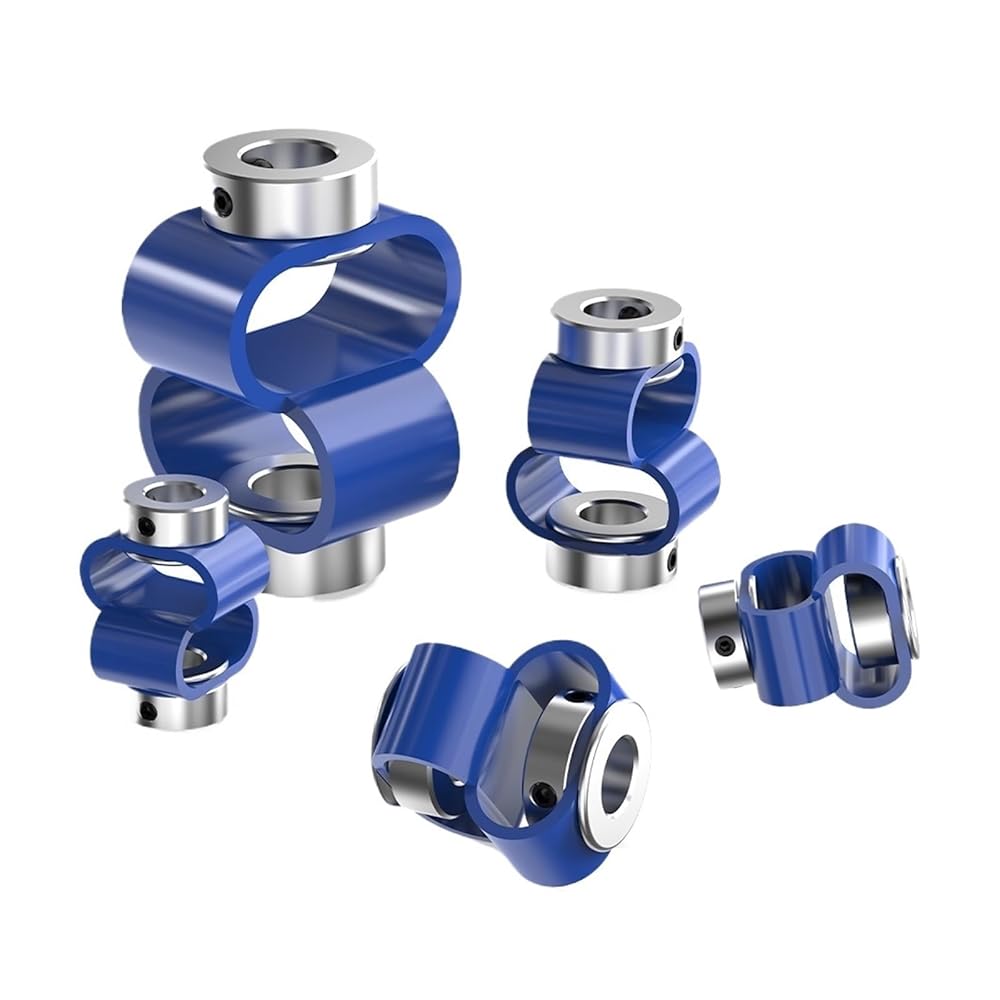

Model : Eight-shaped Elastic Coupling
Type : Eight-shaped
Coupling diameter : 16mm
Coupling length : 32mm
Commodity application : Machinery and Automation
Min Bore-Max Bore : 3-8mm
Mounting screws : M3
Screw tightening force : 1.2 N.m
Rated torque : 0.15 N.m
Max torque : 0.3 N.m
Max speed : 3000r/min
Allowable eccentricity : 2mm
allowable deflection : 6°
