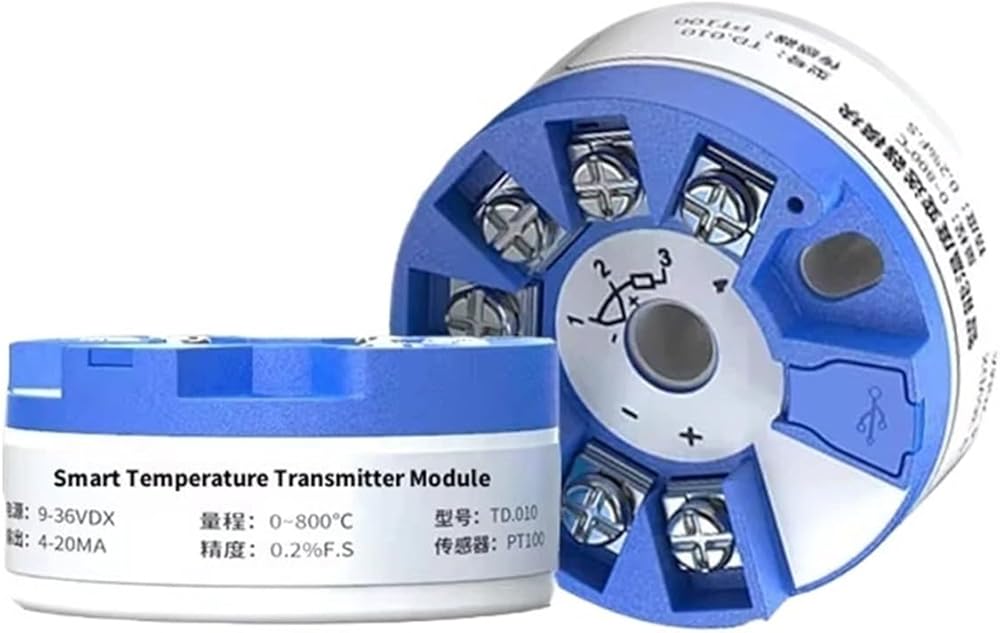

Support 2-wire, 3-wire, 4-wire RTD PT100/Cu100/CU50 input.
Support all the thermocouple signal input, type K, J, T, S, N, R, etc.
Standard head-mounted package.
Refined frosted external shell, flame-retardant material.
High performance in withstanding shock, vibration, external interference, etc.
In compatible with all the PLC, temperature controller, meter, etc.
Industrial grade operating temperature range: -40 to +85
Technical Parameters
Signal input: Thermocouple or 2-wire RTD, 3-wire RTD, 4-wire RTD.
Output: 2-wire 4-20mA current.
Output current limit: 20.3mA
Power supply: 12-35VDC, 0.2mA excitation current.
Measuring Accuracy: 0.5% TC input, 0.2% RTD input.
Temperature Drift: 25ppm/ F.S.
Excitation current: 0.2±0.01mA
Load capacity: 250or 500 -Protection circuit: Reverse polarity connection protection.
Operating temperature: -30-+80 -Storage temperature:
40-+120 -Material: PA66 -Installation:M4x2 screw, standard head-mounted.
Dimension: 44x33x21mm (LxWxH) Max. Input Range and Input Sensor Type
Theory : Temperature Transmitter
Display Size : 1.9 Inches & Under
Origin : China
Max Measuring Temperature : 120°C & Above
Usage : Industrial
Output : 4-20mA
Input : Thermocouple or PT100/Cu100/Cu50 Programmable
