مميزات خاصة

Roughness gauge, offers the capability to measure Multiple surface roughness parameters, including Ra, Rz, Rq, Rt, Rp, Rv, R3z, R3y, Rz(JIS), Rs, Rsk, Rku, Rsm, and Rmr
Surface Roughness Tester is equipped with a highly sophisticated inductance sensor that offers exceptional precision. Maximum measuring range 160μm and can achieve a remarkable precision of 0.001μm
With large data memory capacity, it can store raw data and corresponding waveforms. Meanwhile, USB interface allows external data transfer and connectivity
Powered by rechargeable lithium battery or external power adapter. Its digital convenience, durability and high accuracy make it a reliable tool for users seeking precise and effective surface quality assessment in various industries

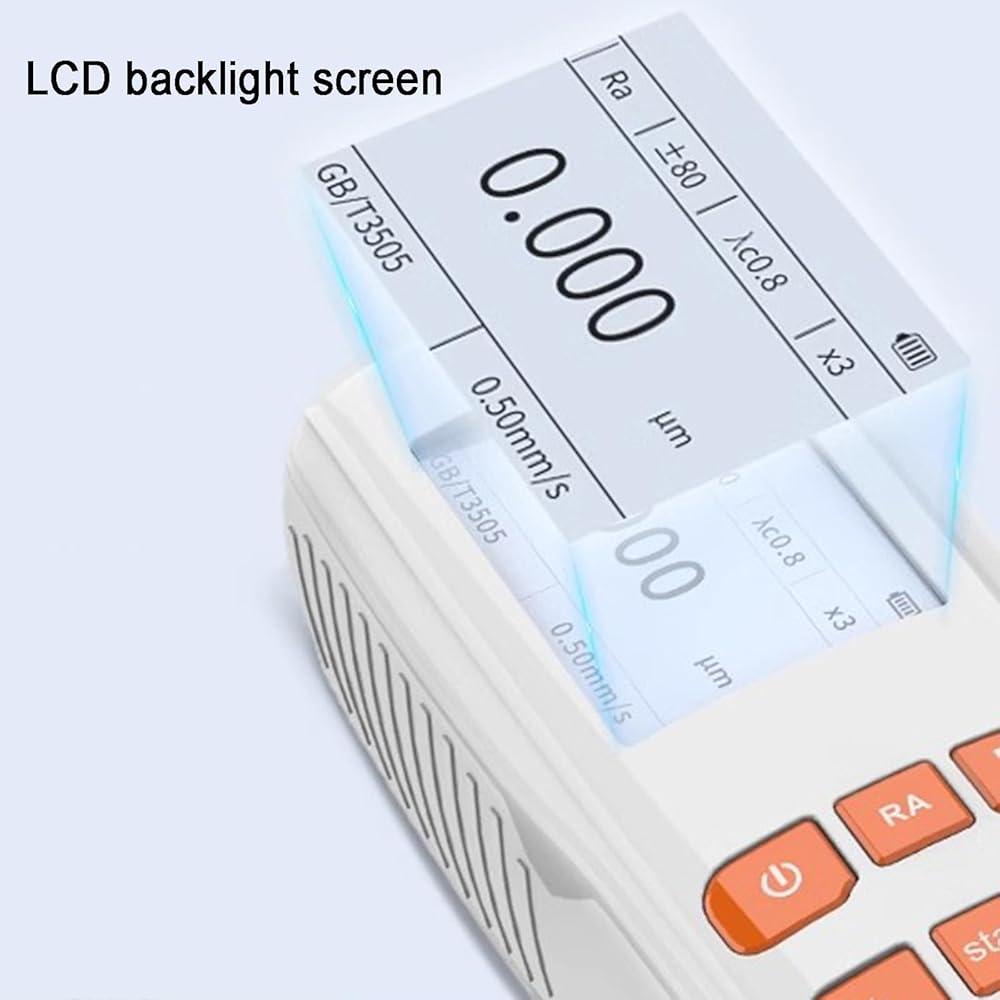

Exclusive DSP technology processes and calculates measurement results efficiently, providing accurate and reliable data. The results are displayed on the LCD, making it easy for users to read and interpret the information

وصف

The roughness measuring head uses high precision inductance sensor, and the measurement value is stable and accurate

Specification:
Measurement parameters: Ra, Rz, Rq, Rt, Rp, Rv, R3z, R3y, Rz(JIS), Rs, Rsk, Rku, Rsm, and Rmr
Measuring range: Z axis (vertical) 160um, X axis (horizontal) 17.5mm (0.71inch)
Measurement accuracy: 0.001μm
Sensor type: inductive
Graphics: support rate curve, roughness, original profile, filtered waveform
Stylus material: diamond, 90 cone angle, tip radius 5um
Guide: carbide, sliding direction radius 40mm
Power supply: 800mAh lithium battery

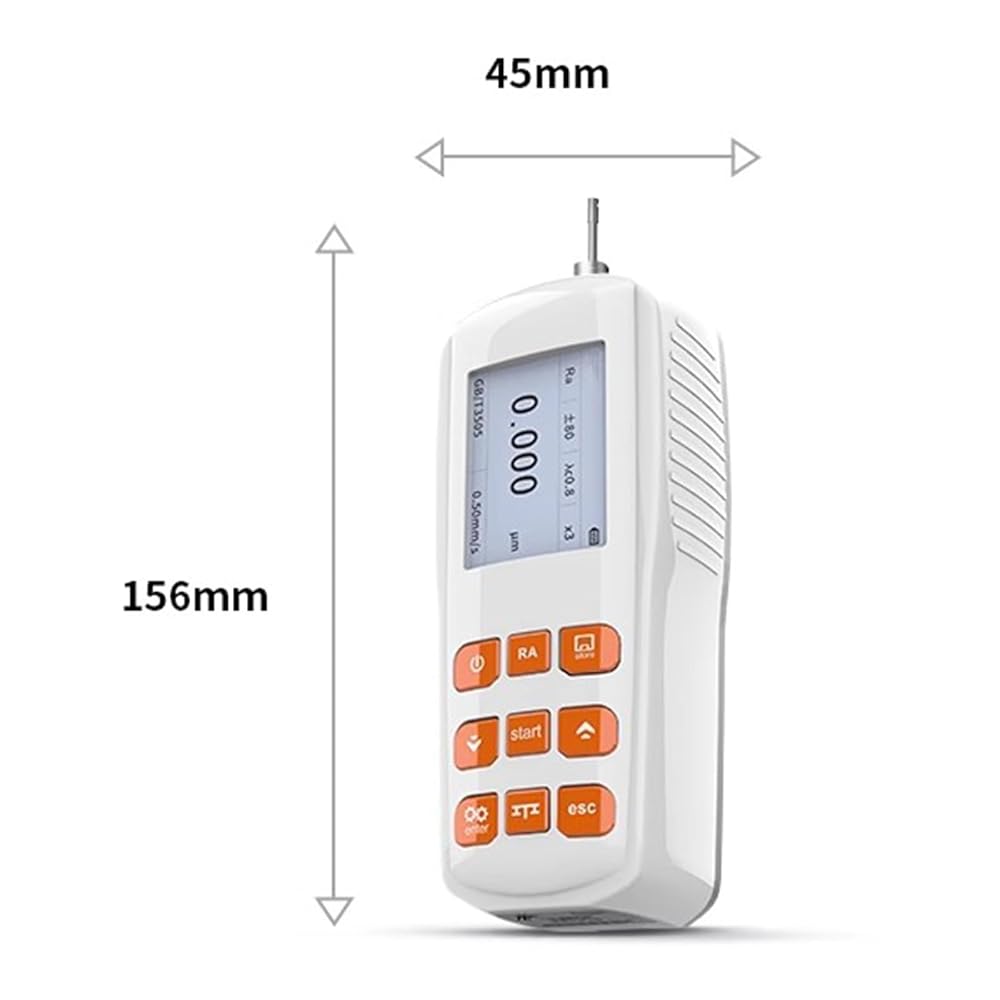

Overall dimensions: 156*61*45mm

Products include:
1*Surface Roughness Tester
