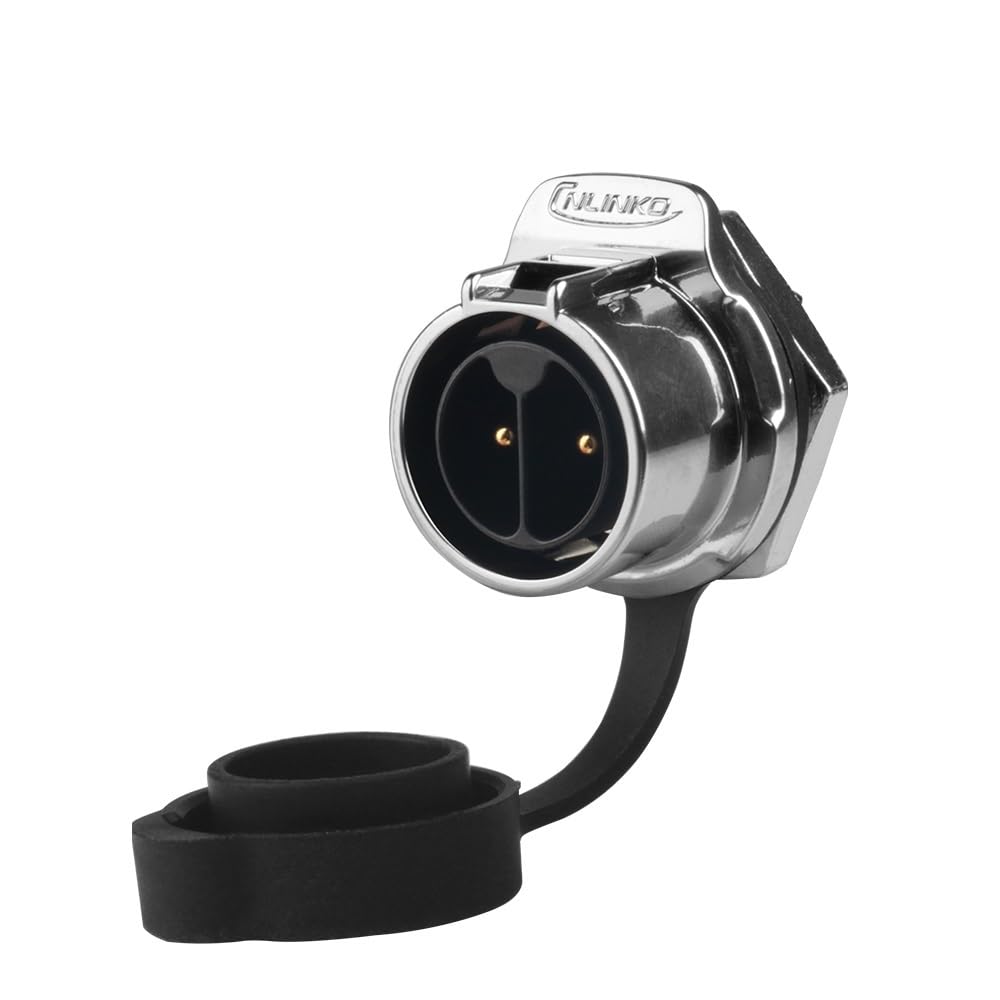

IP68 M20 Waterproof 2/3 Pin 20A Screw Locking Lock Line Connector LP20 Electric Equipment Power Cable Connector
Features: 2/3 Pin Design
The 2/3 pin design offers flexibility in wiring configurations, suitable for various electrical systems.
Versatile Application
This connector is versatile, suitable for a wide range of electric equipment, enhancing its applicability in different industries.
20A High Current Capacity
With a high current capacity of 20A, this connector can handle heavy-duty electrical equipment power distribution seamlessly.
Screw Locking Mechanism
Equipped with a screw locking mechanism, this connector provides a secure and reliable connection, preventing accidental disconnection.
IP68 Waterproof Rating
The IP68 M20 connector ensures complete protection against dust and water, making it ideal for outdoor and harsh environments.
==========
Hign-concerned Chemical : None
Model Number : LP-20 Screw Locking Connector
Voltage :
Origin : Mainland
Certification : ,UL,weee
Wire Gauge : 14-12 AWG
Current Rating : 20A
Operating Voltage(AC.V.rms) : 500V
Withstandard Voltage(AC.V)1Min : 2000V
Temperature Rating : -25~+80
Assembly Style : Screw Locking
Shell & Insulated Parts : High Performance Engineer Plastic
Contact : Copper Alloy(gold plated)
Insulation resistance Min. : 500M
Life cycle(Min.) : 500 times
Diameter range : O.D 10-12mm
Cable specification : 2.5~4.0mm²
Waterproof level : IP68
