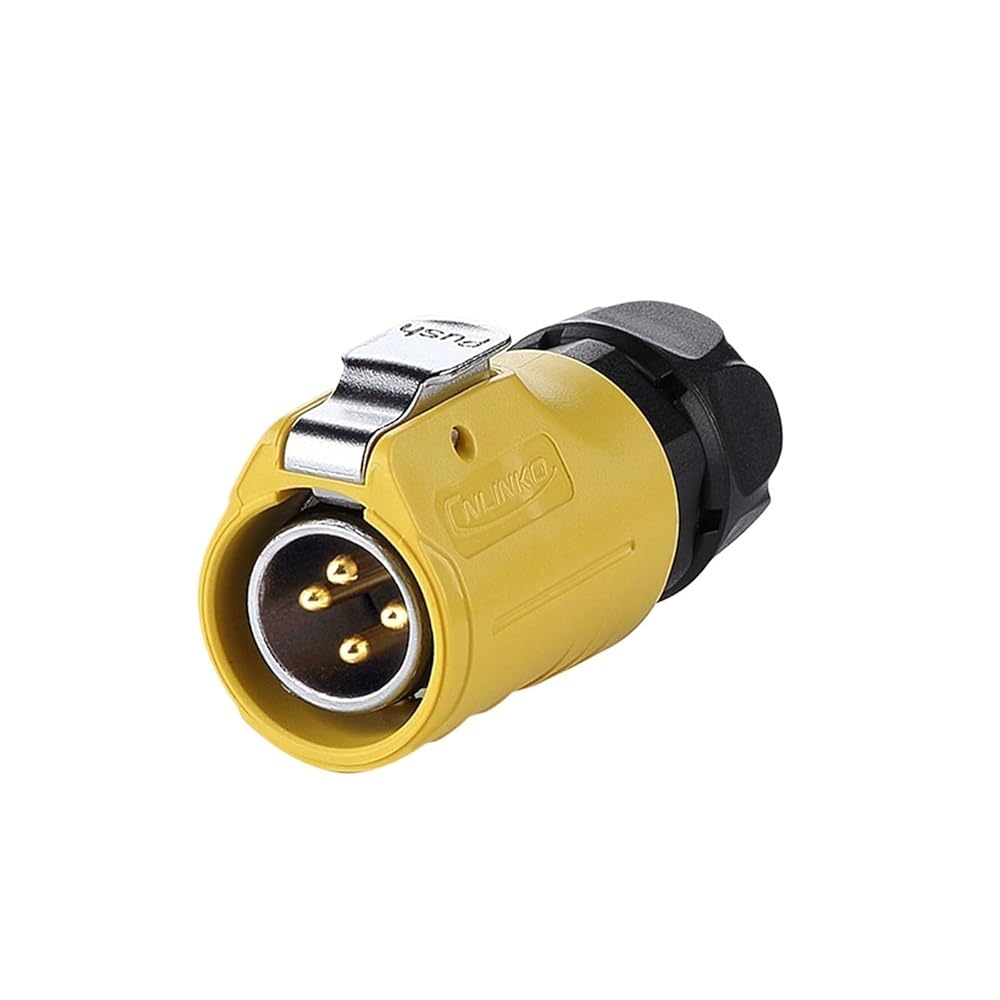

M20 Industrial Connector 2 3 4 5 7 9 12 Pin High Voltage Waterproof Wire Connector LP20 Power and Signal Cable Connectors
Feature:
1.With multi-core design to fit with different industrial needs
2.Alloy metal socket is with fully electromagnetic and radio frequency interference protection
3.With gold-palted contact,stronger corrosion resistance and conductivity
4.PBT materials shell,stable electrical performance,pressure-resisting,high temperature resistance,anti-explosion,anti-corrosive
5.2/3/4 pin for power connector,5/7/9/12 pin for signal connector,power and signal can be compatible match 6.Protection level up to IP68 when mated
7.Current rating:5A/10A/20A
==========
Hign-concerned Chemical : None
Model Number : LP20 Series
Diameter range(2-7pin) : 10.0mm-12mm
Rated current(A) : 5A~20A
Operating voltage(AC.Vrms) : 250V~500V
Contact resistance(Max.) : 1~5m omega
Withstanding voltage(AC.V)1 minute : 1500V~2000V
Insulation resistance(Min.) : 500 m omega
Protection class : IP68
Durability(Min.) : 500times
Type : Connector
Assembly wire : Soldering
Application 1 : Lighting
Application 2 : Power
Application 3 : Audio & Video
Diameter range(9-12pin) : 5.0-6.5mm
Cable specification(2-4pin) : 2.5~4.0mm²/14-12AWG
Cable specification(5-7pin) : 1.0~1.5mm²/ 18-16AWG
Cable specification(9-12pin) : 0.34~0.5mm²/22-20AWG
