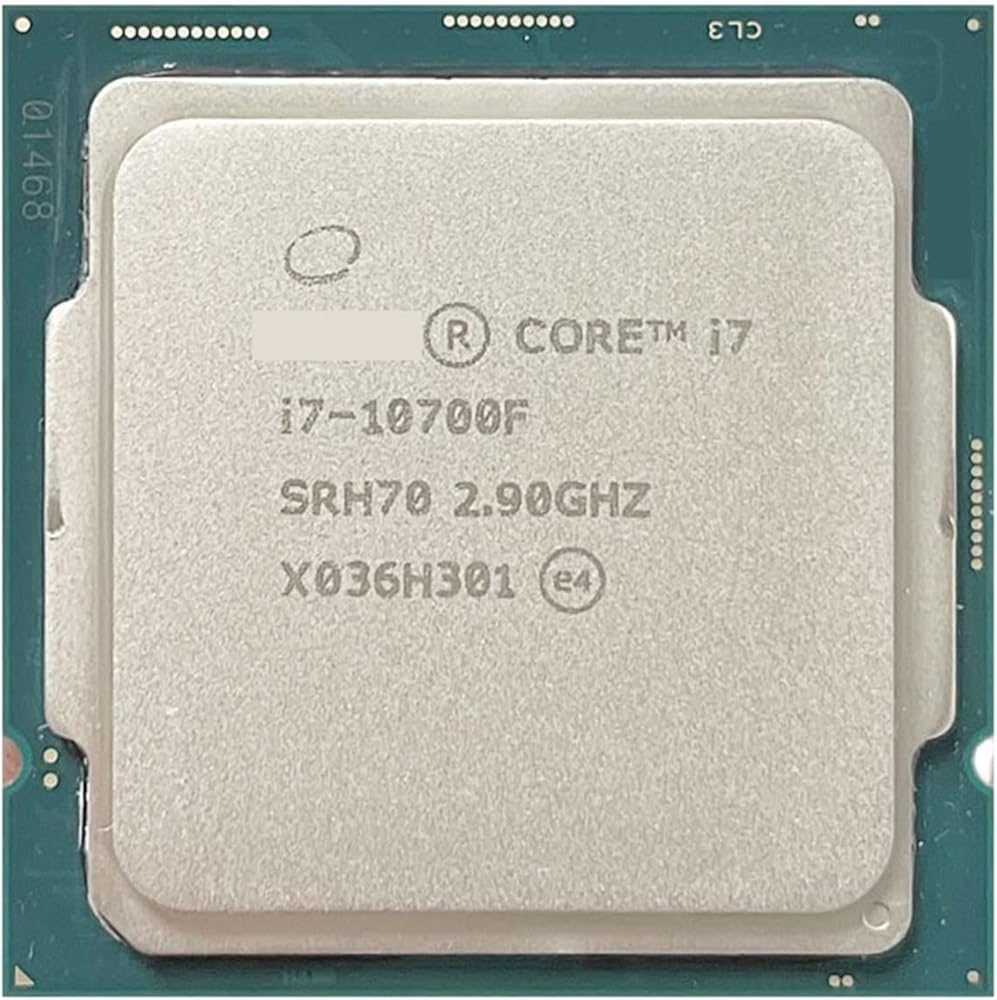

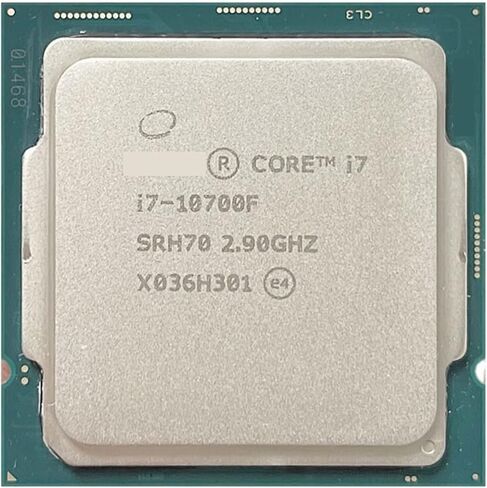

c i7-10700F specifications
General information
Type
CPU / Microprocessor
Market segment
Desktop
Family
CPU part numbers
CM8070104282329 is an OEM/tray microprocessor
BX8070110700F is a boxed processor (English version)
BXC8070110700F is a boxed processor (Chinese version)
Frequency ?
2900 MHz
Maximum turbo frequency
4800 MHz (1 c)
4600 MHz (all cores)
Low power frequency
800 MHz
Clock multiplier ?
29
Socket 1200
S-spec numbers
Architecture / Microarchitecture
Microarchitecture
Comet Lake
Processor c ?
Comet Lake-S
c stepping ?
Q0 (SRH70)
Manufacturing process
0.014 micron
Data width
64 bit
The number of CPU cores
8
The number of threads
16
Floating Point Unit
Integrated
Level 1 cache size ?
8 x 32 KB 8-way set associative instruction caches
8 x 32 KB 8-way set associative data caches
Level 2 cache size ?
8 x 256 KB 4-way set associative caches
Level 3 cache size
16 MB 16-way set associative shared cache
Physical memory
128 GB
Multiprocessing
Uniprocessor
Extensions and Technologies
MMX instructions
SSE / Streaming SIMD Extensions
SSE2 / Streaming SIMD Extensions 2
SSE3 / Streaming SIMD Extensions 3
SSSE3 / Supplemental Streaming SIMD Extensions 3
SSE4 / SSE4.1 + SSE4.2 / Streaming SIMD Extensions 4 ?
AES / Advanced Encryption Standard instructions
AVX / Advanced Vector Extensions
AVX2 / Advanced Vector Extensions 2.0
BMI / BMI1 + BMI2 / Bit Manipulation instructions
F16C / 16-bit Floating-Point conversion instructions
FMA3 / 3-operand Fused Multiply-Add instructions
HT / Hyper-Threading technology ?
VT-x / Virtualization technology ?
VT-d / Virtualization for directed I/O
TBT 3.0 / Turbo Boost technology 3.0 ?
Security Features
NX / XD / Execute disable bit ?
MPX / Memory Protection Extensions
SGX / Software Guard Extensions
SMAP / Supervisor Mode Access
SMEP / Secure Mode Execution
Low power features
c C1/C1E, C3, C6, C7, C8, C9 and C10 states
Package C3, C6, C7, C8, C9 and C10 states
Enhanced / technology ?
Integrated peripherals / components
Integrated graphics
None
Memory controller
The number of controllers: 1
Memory channels (per controller): 2
Memory channels (total): 2
Channel width (bits): 64
Supported memory: DDR4-2933
DIMMs per channel: 2
Maximum memory bandwidth (GB/s): 46.9
Other peripherals
Direct Media Interface 3.0 (4 lanes)
PCI Express 3.0 interface (16 lanes)
Electrical / Thermal parameters
Minimum/Maximum operating temperature ?
0°C (case) - 71.3°C (case)
100°C (junction)
Thermal Design Power ?
65 Watt
Notes on c i7-10700F
The maximum operating frequency in Turbo Boost 2.0 mode is 4.7 GHz
Optane memory is supported
The processor has the following security, data protection and/or software features: Boot Guard, Identity Protection technology, OS Guard and Secure Key.
