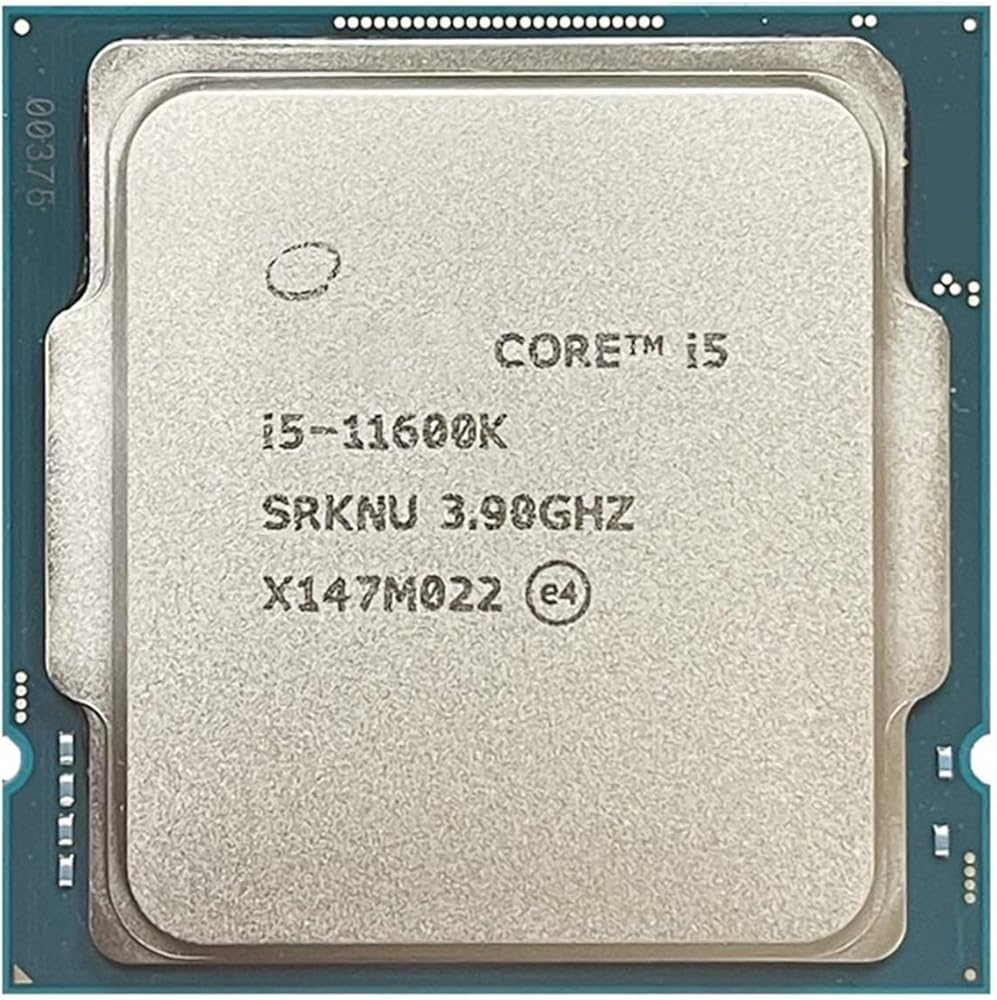

c i5-11600K specifications
General information
Type
CPU / Microprocessor
Market segment
Desktop
Family
CPU part numbers
CM8070804491414is an OEM/tray microprocessor
BX8070811600Kis a boxed processor (English version)
BXC8070811600Kis a boxed processor (Chinese version)
Frequency?
3900 MHz
Maximum turbo frequency
4900 MHz (1 c)
4600 MHz (all cores)
Low power frequency
800 MHz
Clock multiplier?
39
Socket 1200
S-spec numbers
Architecture / Microarchitecture
Microarchitecture
Rocket Lake
Processor c?
Rocket Lake-S
Manufacturing process
0.014 micron
Data width
64 bit
The number of CPU cores
6
The number of threads
12
Floating Point Unit
Integrated
Level 1 cache size?
6 x 32 KB 8-way set associative instruction caches
6 x 48 KB 12-way set associative data caches
Level 2 cache size?
6 x 512 KB 8-way set associative caches
Level 3 cache size
12 MB 16-way set associative inclusive shared cache
Physical memory
128 GB
Multiprocessing
Uniprocessor
Extensions and Technologies
MMX instructions
SSE / Streaming SIMD Extensions
SSE2 / Streaming SIMD Extensions 2
SSE3 / Streaming SIMD Extensions 3
SSSE3 / Supplemental Streaming SIMD Extensions 3
SSE4 / SSE4.1 + SSE4.2 / Streaming SIMD Extensions 4?
AES / Advanced Encryption Standard instructions
AVX / Advanced Vector Extensions
AVX2 / Advanced Vector Extensions 2.0
AVX-512 / Advanced Vector Extensions 512
BMI / BMI1 + BMI2 / Bit Manipulation instructions
Deep Learning Boost
F16C / 16-bit Floating-Point conversion instructions
FMA3 / 3-operand Fused Multiply-Add instructions
Gaussian Neural Accelerator 2.0
SHA / Secure Hash Algorithm extensions
HT / Hyper-Threading technology?
VT-x / Virtualization technology?
VT-d / Virtualization for directed I/O
TBT 2.0 / Turbo Boost technology 2.0?
Security Features
NX / XD / Execute disable bit?
MPX / Memory Protection Extensions
TXT / Trusted Execution technology
SMAP / Supervisor Mode Access
SMEP / Secure Mode Execution
UMIP / User Mode Instruction
Low power features
c C1/C1E, C3, C6, C7, C8, C9 and C10 states
Package C3, C6, C7, C8, C9 and C10 states
Display Power Saving Technology
Graphics c Power Saving Technologies
Enhanced / technology?
Integrated peripherals / components
Display controller
3 displays
DisplayPort 1.4a / Embedded DisplayPort 1.4b / HDMI 2.0b
Integrated graphics
Execution units: 32
Base frequency (MHz): 350
Maximum frequency (MHz): 1300
Memory controller
The number of controllers: 1
Memory channels (per controller): 2
Memory channels (total): 2
Channel width (bits): 64
Supported memory: DDR4-2933, DDR4-3200
DIMMs per channel: 2
Maximum memory bandwidth (GB/s): 51.2
Other peripherals
Direct Media Interface 3.0 (8 lanes)
PCI Express 4.0 interface (16 lanes for discrete graphics, 4 lanes for storage)
Electrical / Thermal parameters
Minimum/Maximum operating temperature?
0°C (case) - 72.1°C (case)
100°C (junction)
Thermal Design Power?
125 Watt
Notes on c i5-11600K
The processor has unlocked clock multiplier
Configurable TDP-down feature is supported. The CPU operates at 3.6 GHz and has 95 Watt TDP in TDP-down mode
Optane memory is supported
DDR4-3200 memory is not supported on platforms, based on I 400-series chipsets
The processor has the following security, data protection and/or software features: Boot Guard, Identity Protection technology, OS Guard, Secure Key and vPro technology.
The CPU is compatible with DirectX 12.1, OpenGL 4.5 and OpenCL 3.0 APIs.
The graphics unit has the following software features enabled: Quick Sync Video, Clear Video technology, Clear Video HD technology and InTru 3D technology.
