Spindle Sanders

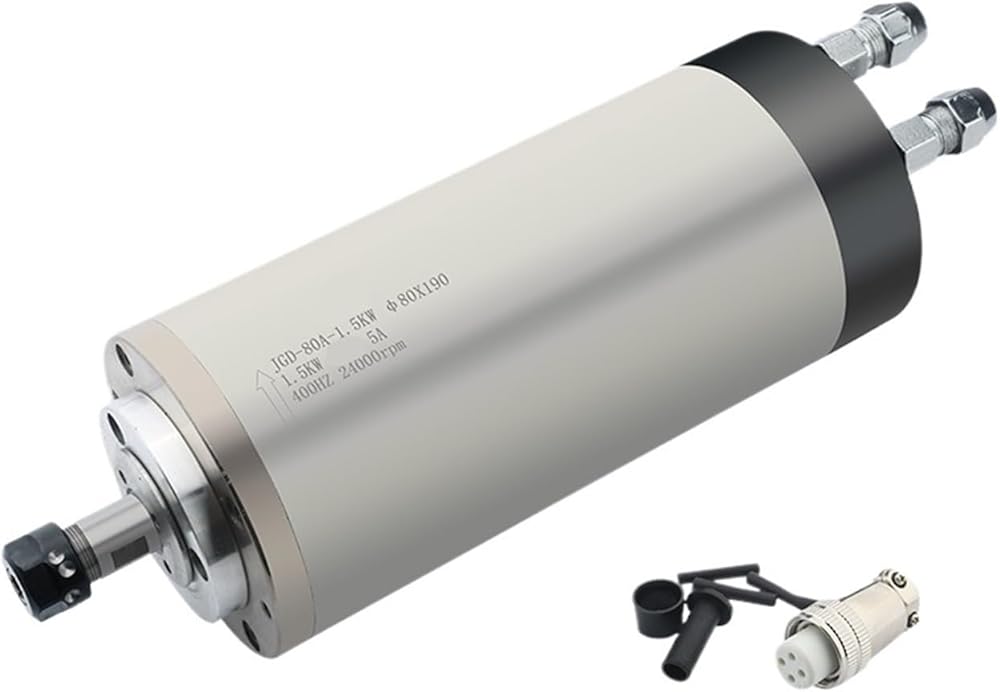

Size: 80x190mm (middle body diameter: 80mm x length: 190mm)
Speed regulation method: Use a three-phase output inverter to adjust the frequency of the inverter to change the spindle speed.
Cooling method: water cooling
Power interface: An optional H20-4-pin waterproof aviation is available. Connect the aviation plugs marked "1," "2," "3," and "4." Connect "1," "2," and "3" to the inverter (U, V, W), and connect "4" to the inverter ground.
Power: 1.5kw
Voltage: 220V
Current: 5A
Frequency: 0-400Hz
Speed: 0-24000rpm
Runout: less than 0.01mm
Diameter (mm): 80
4 fully sealed angular contact bearings
Chuck: ER11
Clamping tool diameter: 17mm, 6.5mm, 6.35mm, 6mm, 5.5mm, 5mm, 4.5mm, 4mm, 3.5mm, 3.175mm, 3mm, 2.5mm, 2mm, 1.5mm, 1mm (standard 6mm)
Water-cooled ER11 chuck
Grease lubrication
