Spindle Sanders
Basic parameters:
Dimensions: 92.5x110x328.5mm
Speed regulation method: Through the three-phase inverter output, adjust the inverter frequency to change the spindle speed.
Cooling method: air cooling

Power: 40kw
Voltage: 220v 380v
Current: 15A
Frequency: 0-300Hz
Speed: 0-18000rpm
Runout: less than 0.01mm
Bearing type: 4 bearings, 2X7007C P4 DT and 2X7002C P4, angular contact bearings.
Chuck: ER25
Clamping knife diameter: 1mm, 2mm, 3mm, 3175mm, 4mm, 5mm, 6mm, 6.35mm, 7mm, 8mm, 9mm, 10mm, 11mm, 12mm, 12.7mm, 13mm, 14mm, 15mm, 16mm

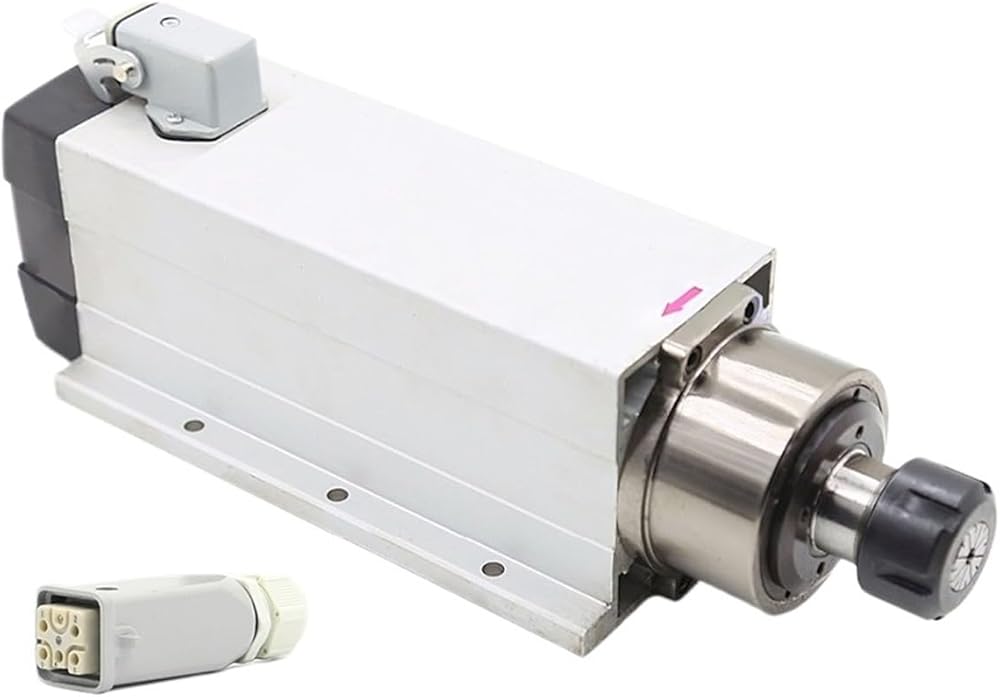

Air-cooled ER25 chuck block
