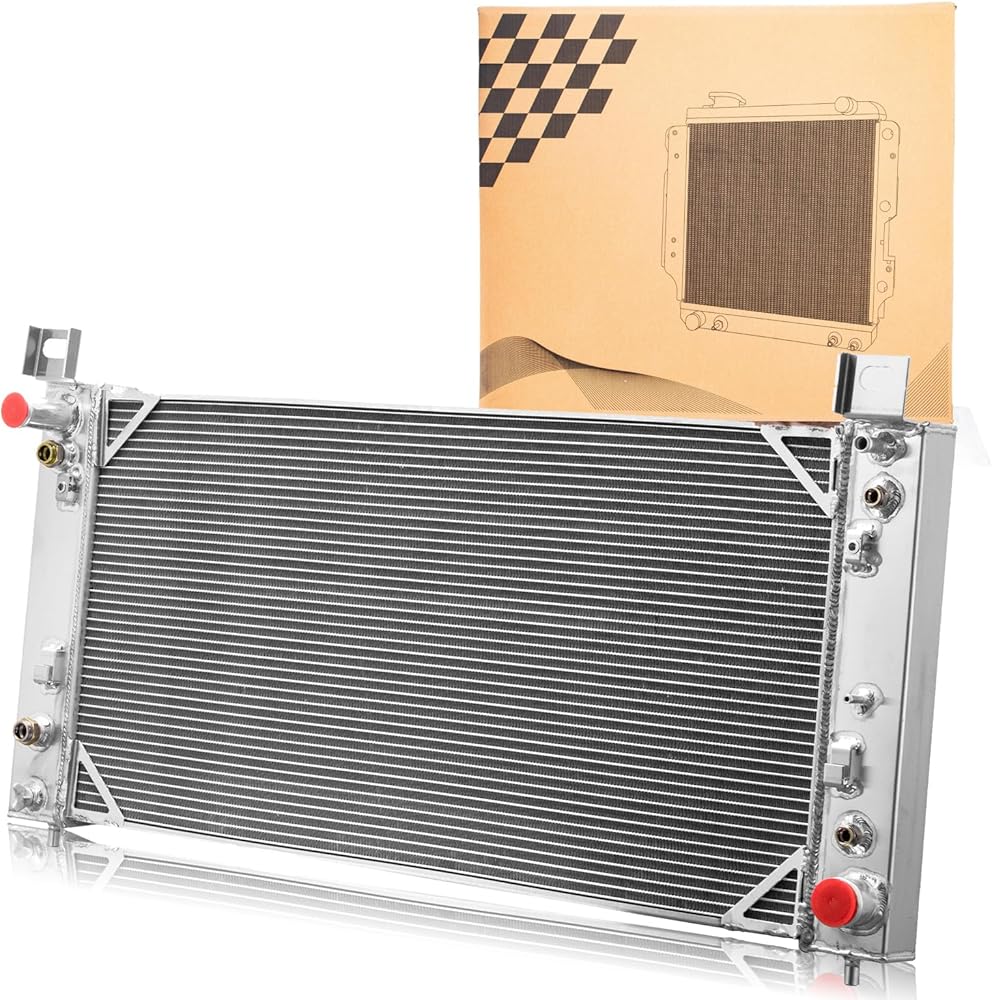

This Radiator Has Transmission Cooler And Engine Oil Cooler
Will Work For Models With Transmission Oil Cooler Only
34" Wide Core - 40" Wide Overall

Radiator Configuration:
High Performance Racing Spec.
4-Row of tubes Core Racing Design
Core Dimensions: 34" W x 17 1/4" H
Overall Dimensions: 40 4/5"W x 21 1/2"H x 5"T
Tank Size: 3 1/4" x 18 1/2"
Inlet Hose Connection: 1 5/16" Driver Side
Outlet Hose Connection: 1 9/16" Passenger Side
Has 1/2" Nipple Top Passenger Side
Has 5/16" Nipple Middle Passenger Side
Engine Oil Cooler :φ26*292*M20*1.5
Transmission Oil Cooler : φ26*292*5/8-18UNF(Z)
Please notice that this item has Engine Oil Cooler and Transmission Oil Cooler, the Core length is 34''

Vehicle Fitment:
This Radiator Compatible with
2003-2009 Hummer H2 6.0L 6.2L V8
2009-2014 Cadillac Escalade ESV
2010-2013 Cadillac Escalade EXT
2001-2007 Chevy Silverado 1500HD / 3500
2004-2013 Chevy Silverado 1500
1999-2004 Chevy Silverado 2500
2004-2010 Chevy Silverado 2500HD
2007-2013 Chevy Silverado 3500HD
2000-2013 Chevy Suburban 1500/2500
2000-2006 Chevy Tahoe
2008-2010 GMC Sierra
2001-2011 GMC Sierra 1500
2006-2007 GMC Sierra 1500HD
1999-2004 GMC Sierra 3500HD
2000-2014 GMC Yukon
2007-2013 GMC Yukon XL1500
2000-2013 GMC Yukon XL2500
(Fits 4.8L/5.3L/6.0L/6.2L V8 Engines)

Description:
1.The Pundimo radiator is constructed from lightweight aluminium, which features a tube and fin design that significantly increases the surface area, thereby enabling the heat to dissipate more efficiently.
2.The augmented capacity of the radiator for coolant results in a more efficient cooling system and enhanced resilience to temperature fluctuations in racing applications.
3.The Pundimo radiator is constructed from aircraft-grade aluminium, which exhibits superior corrosion resistance compared to other prevalent alloys. The brazed core technology guarantees optimal performance and dependability.
4.The Pundimo radiator's higher-density core comprises cooling rows spaced 3/8" apart, thereby providing 25% more rows within the core than is typical of aluminium radiators. The cooling fins, which comprise one inch of the total surface area, are composed of 14 to 16 fins per inch, which equates to approximately 1,500 more cooling fins than is typical of aluminium radiators. This results in a markedly enhanced capacity for dissipating heat.
