Introduction
ESP32-S3-Touch-LCD-7 is a microcontroller development board with 2.4GHz WiFi and BLE 5 support, integrates high-capacity Flash and PSRAM. Onboard 7inch LCD screen can smoothly run GUI programs such as LVGL. Combined with various peripheral interfaces, suitable for the quick development of the HMI and other ESP32-S3 applications

Features
Equipped with 32-bit LX7 dual-core processor, up to 240MHz main frequency
Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna
Built in 512KB of Static RAM and 384KB ROM, with onboard 8MB PSRAM and 16MB Flash

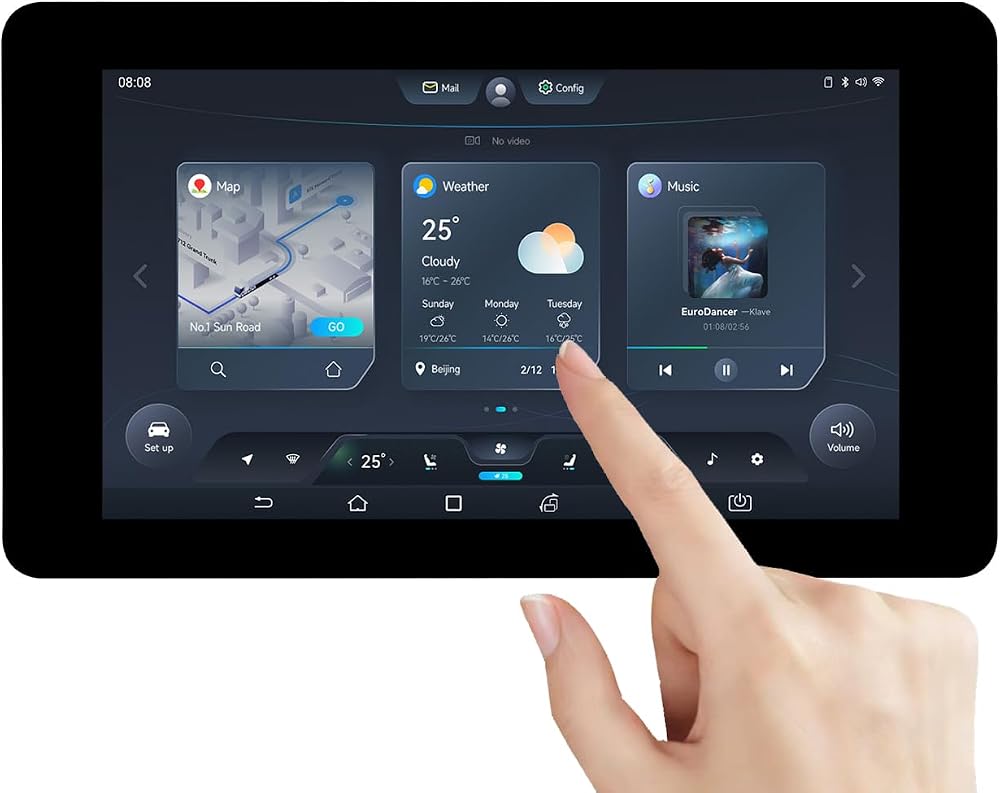

Onboard 7inch LCD display, 800×480 resolution, 65K color
Supports 5-point capacitive touch control via I2C interface, with interrupt support

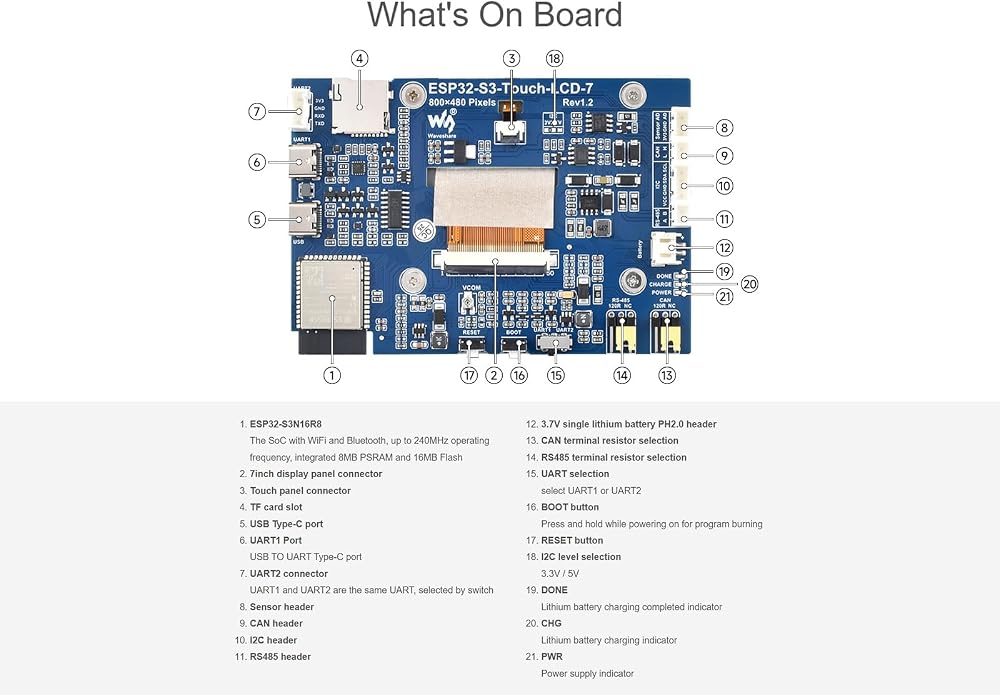

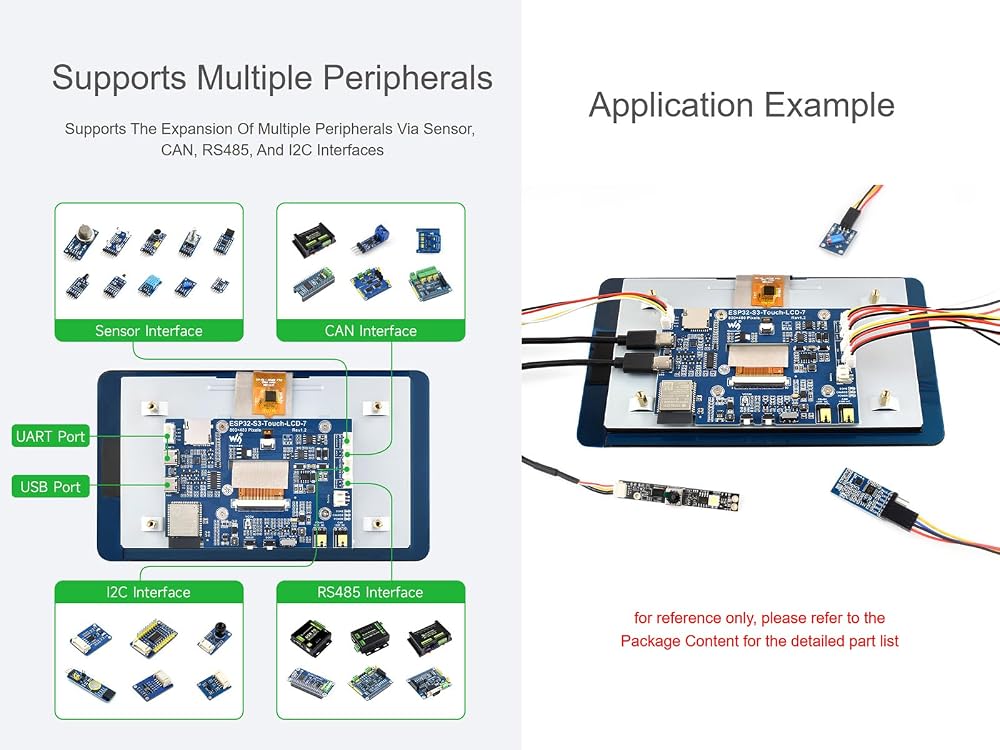

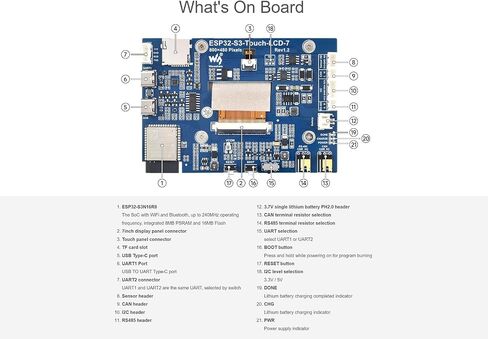

Onboard CAN, RS485, I2C interface and TF card slot, integrates full-speed USB port
Supports flexible clock, module power supply independent setting, and other control to realize low power consumption in different scenarios

Package Content
ESP32-S3-Touch-LCD-7 x1
HY2.0 2P to 2PIN male cable 10cm ×2
HY2.0 3P to 3PIN male cable 10cm ×1
HY2.0 4P to 4PIN male cable 10cm ×2
Screws pack x1

Note: Online Dev Resources and Tutorials to help you easily get started. Please feel free to contact us with any questions.
