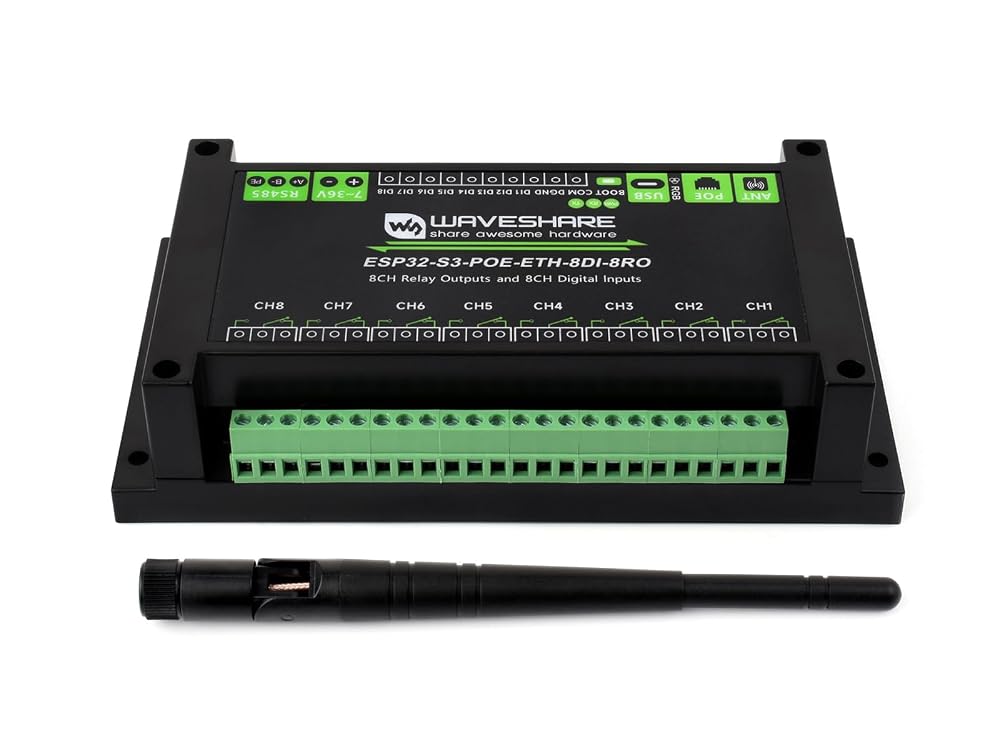

8-Ch ESP32-S3 WiFi Relay Module Industrial Controller, Onboard 8-ch Relays, 8-ch Digital Inputs, Isolated RS485 and PoE ETH Port Interface, Supports RS485 and Bluetooth/WiFi Remote Control

SAR 335
All electronics ship with US style plugs. You may need a voltage converter or a plug adapter.
– 1 +

Special Features

  • Industrial 8-Channel ESP32-S3 WiFi Relay Module, based on ESP32-S3, equipped with 32-bit LX7 dual-core processor, capable of running at 240 MHz, integrated 2.4GHz Wi-Fi and Bluetooth LE dual-mode wireless communication. Supports Arduino IDE

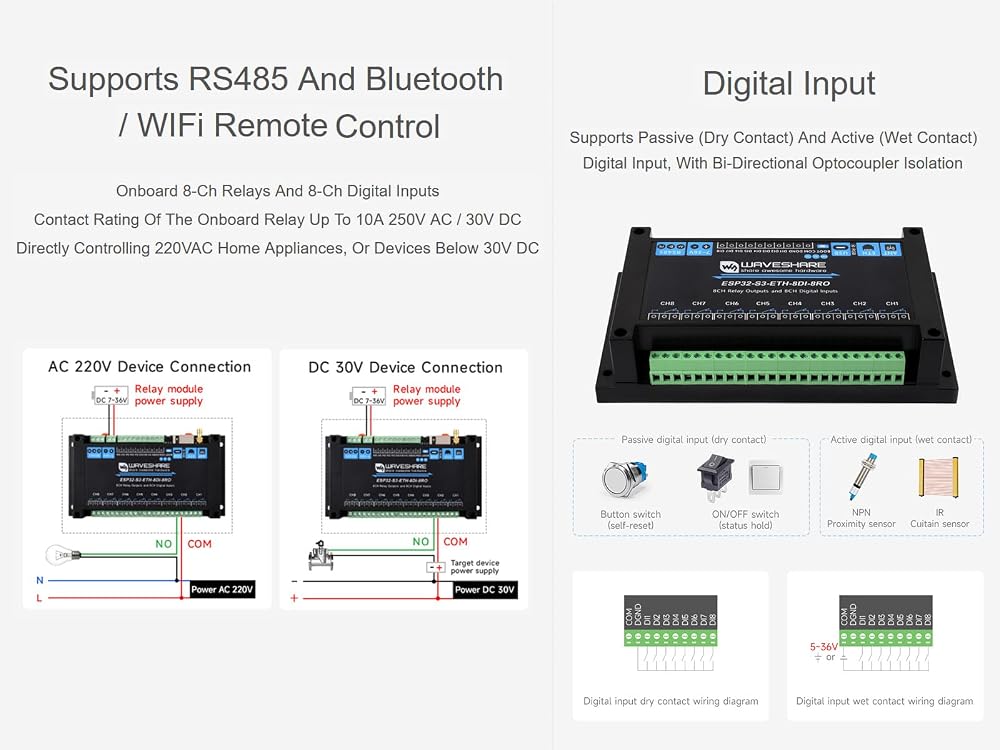

  • Onboard 8-ch relays and 8-ch digital inputs, contact rating of the onboard relay up to 10A 250V AC / 30V DC, directly controlling 220VAC home appliances, or devices below 30V DC, supports RS485 and Bluetooth / WIFi remote control. Supports passive (dry contact) and active (wet contact) digital input, with bi-directional optocoupler isolation
  • Onboard isolated RS485 interface, for connecting to various RS485 Modbus industrial modules or sensors. Onboard optocoupler isolation, digital isolation, unibody power supply isolation etc. multiple isolation protection circuits, multiple protections, more safe and reliable
  • Onboard pin header, allowing access to other devices. Onboard USB Type-C port for power supply, firmware downloading and debugging. Onboard power supply screw terminal. Supports 7~36V wide voltage input. Onboard RTC chip
  • Onboard W5500 Ethernet chip for extending 10/100Mbps network port through SPI interface. Built-in PoE module for PoE capability (compliant with IEEE 802.3af standard). Onboard TF card slot for external TF card storage of images and files. Built-in buzzer, RGB LED, power supply and RS485 TX/RX indicators for monitoring the operating status of the devices

Description

Introduction

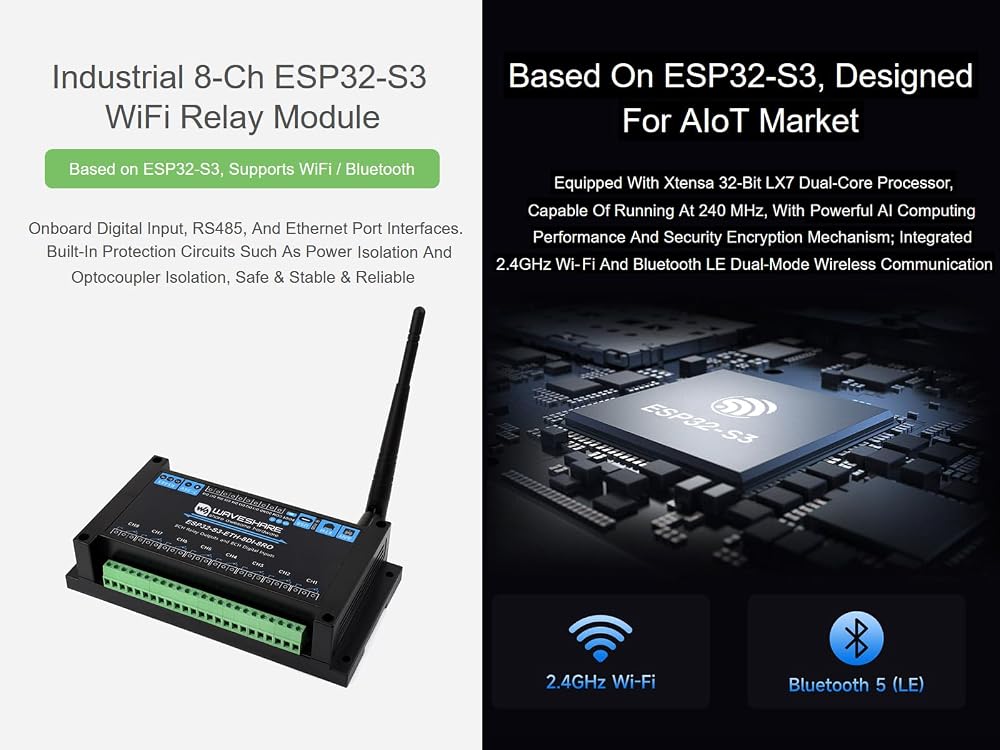

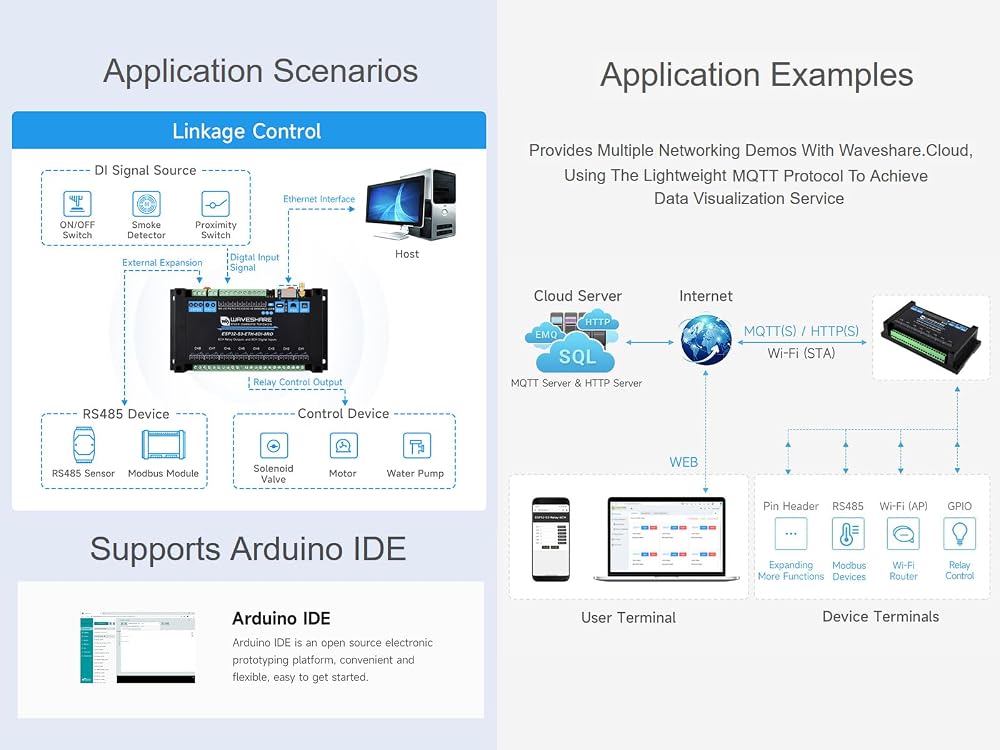

Industrial 8-Ch ESP32-S3 WiFi Relay Module, based on ESP32-S3, supports WiFi / Bluetooth. Onboard Digital input, RS485, and PoE ethernet port interfaces. Built-in multiple isolation protection circuits

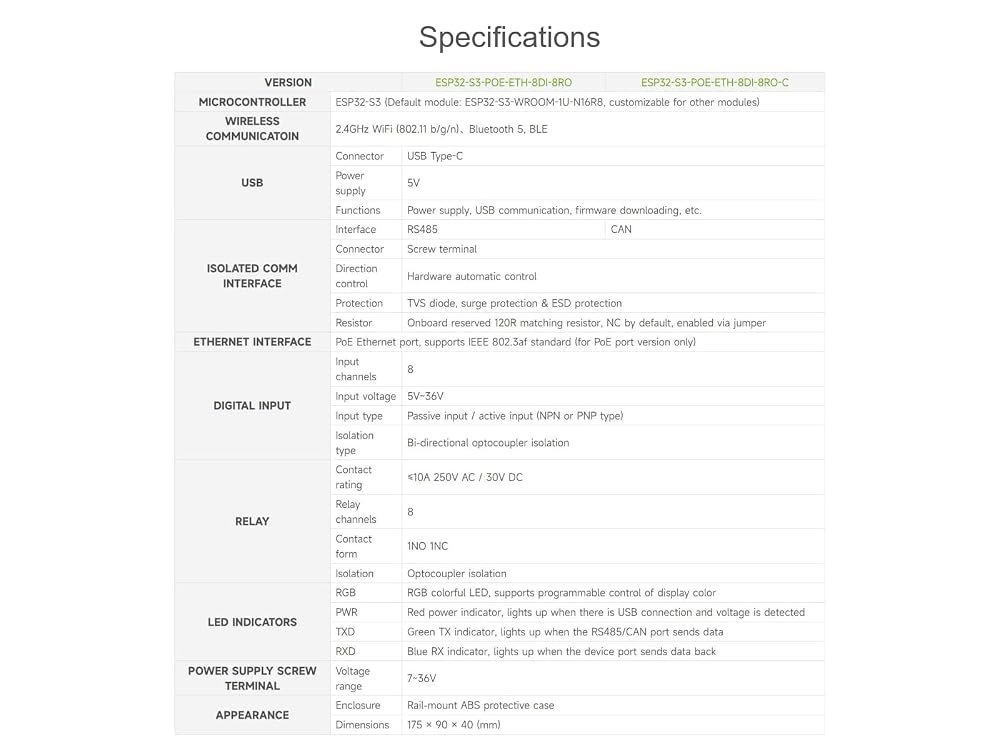

Features

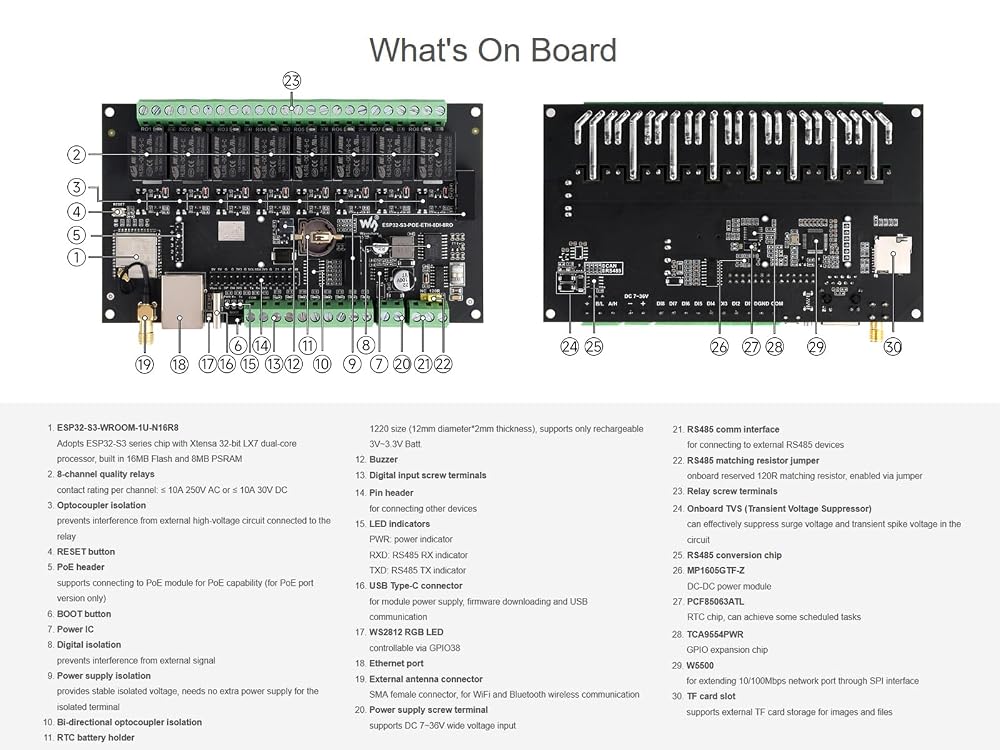

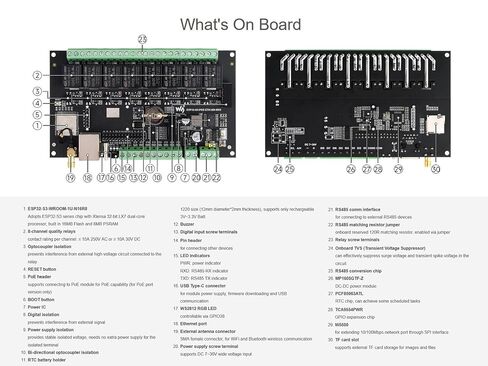

Based on ESP32-S3 microcontroller with Xtensa 32-bit LX7 dual-core processor, capable of running at 240 MHz
Integrated 2.4GHz Wi-Fi and Bluetooth LE dual-mode wireless communication
High quality relay, contact rating: ≤10A 250V AC / 30V DC
Supports passive and active digital input, with bi-directional optocoupler isolation. The relay supports digital input linkage control
Onboard isolated RS485 interface, for connecting to various RS485 Modbus industrial modules or sensors
Onboard pin header, allowing access to other devices
Onboard USB Type-C port for power supply, firmware downloading and debugging
Onboard power supply screw terminal, supports 7~36V wide voltage input
Onboard RTC chip, supports scheduled tasks
Onboard W5500 Ethernet chip for extending 10/100Mbps network port through SPI interface

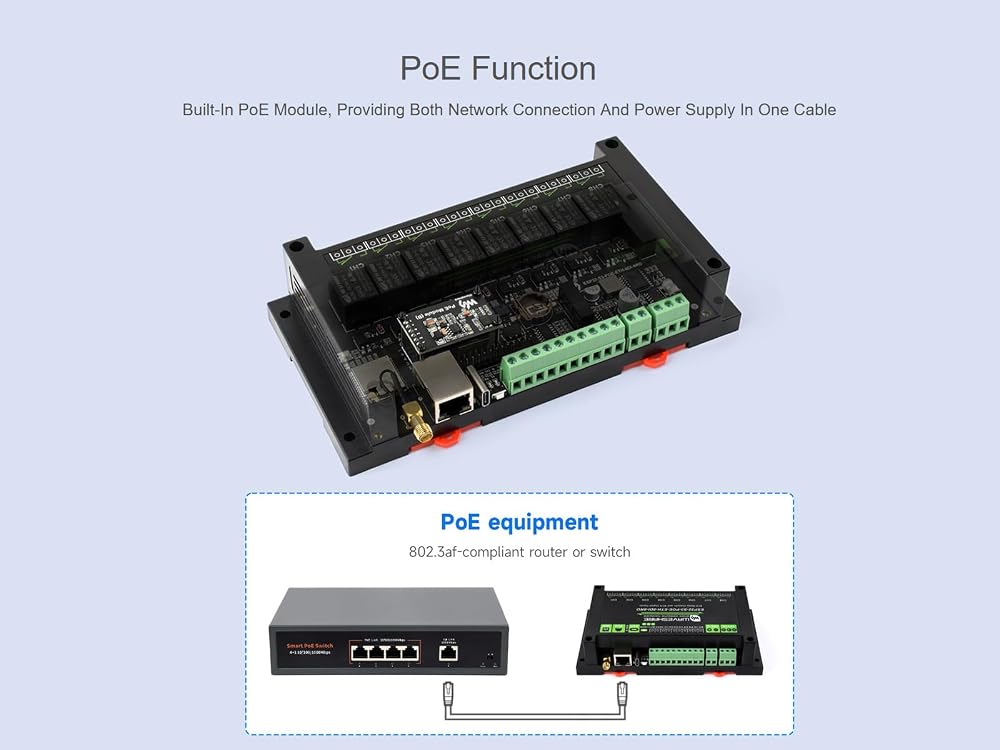

Built-in PoE module for PoE capability, supports IEEE 802.3af standard

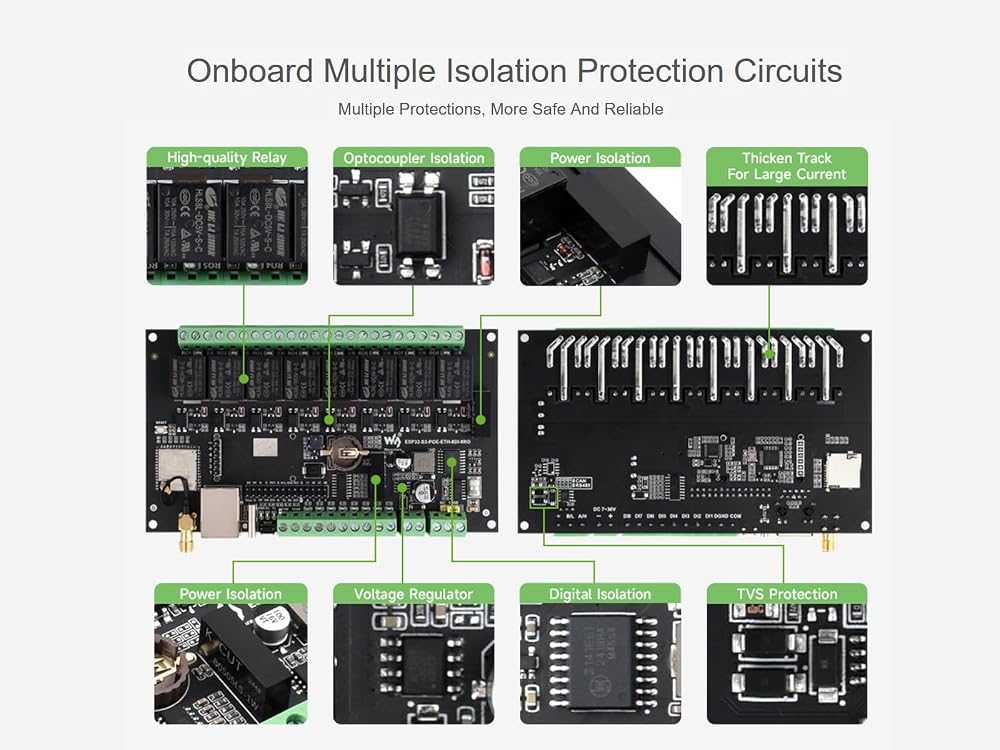

Onboard optocoupler isolation to prevent interference from external high-voltage circuit connected to the relay
Onboard digital isolation to prevent interference from external signal
Onboard unibody power supply isolation, providing stable isolated voltage, no extra power supply required for the isolated terminal
Onboard TF card slot for external TF card storage of images and files
Built-in buzzer, RGB LED, power supply and RS485 TX/RX indicators for monitoring the operating status of the devices

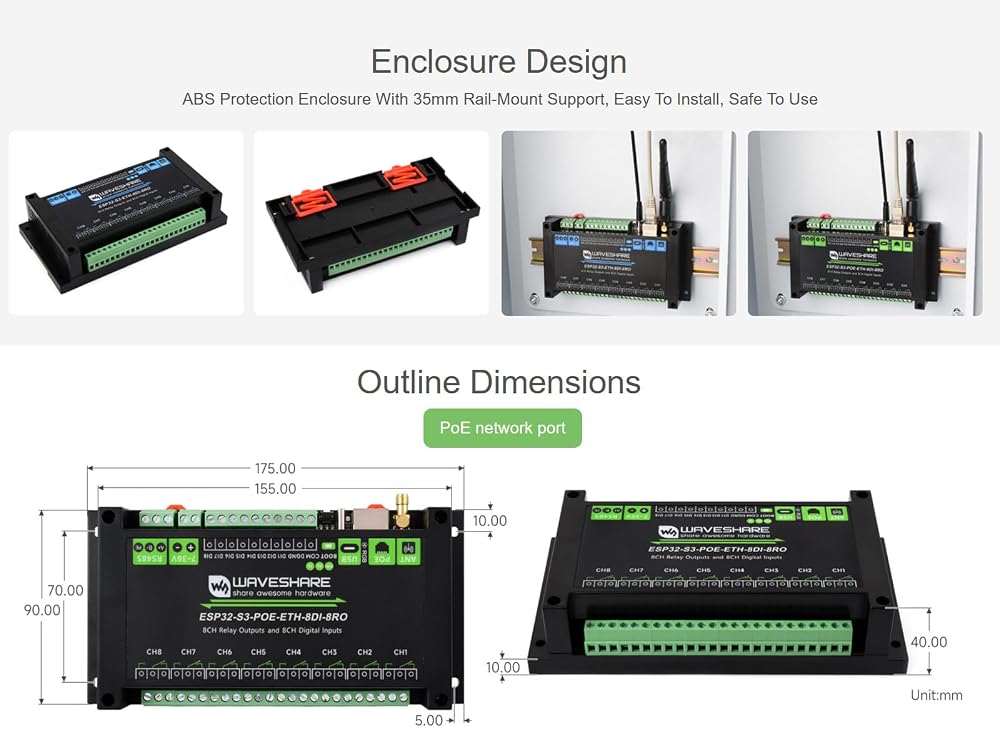

Rail-mounted ABS case, easy to install

Package Content
ESP32-S3-POE-ETH-8DI-8RO × 1
2.4G 4DB SMA antenna × 1
Screwdriver × 1

Note: Online Dev Resources and Tutorials to help you easily get started. Please feel free to contact us with any questions.
