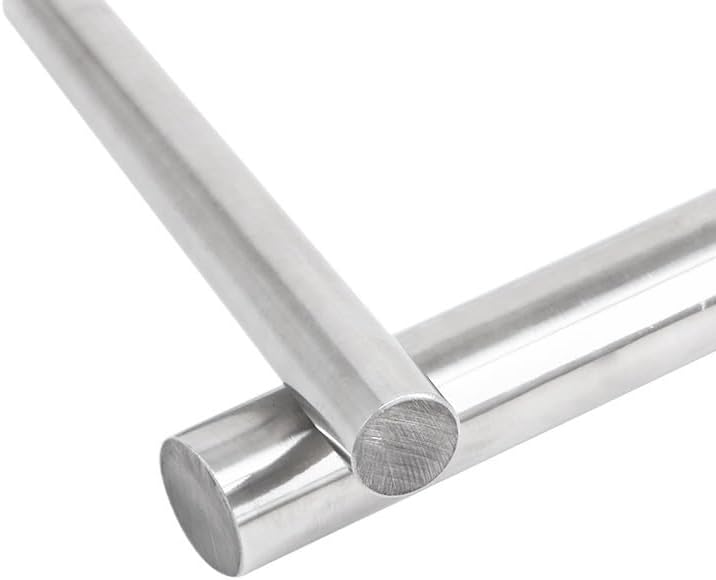

This product is a high-precision chrome-plated linear shaft made from 45# carbon steel. It undergoes a process of hardening, precision grinding, and subsequent hard chrome plating. The chrome layer not only significantly enhances surface hardness and wear resistance but also provides excellent corrosion protection. The shaft is manufactured to tight geometric tolerances, including exceptional straightness and roundness, which are critical for minimizing runout and ensuring consistent, low-friction performance in dynamic applications.
Supplied as a single piece, it serves as a key component in constructing reliable linear motion systems. Its primary functions include acting as a piston rod within pneumatic or hydraulic cylinders (where the chrome plating seals effectively against seals) and serving as a guide shaft or optical axis in various automation equipment, machine tools, and precision instruments. The availability of a wide range of diameters and lengths allows for selection based on specific load, speed, and space constraints.
Product Type:\u200b Chrome Plated Linear Shaft / Piston Rod / Guide Rod
Material:\u200b 45# Carbon Steel
Surface Treatment:\u200b Hard Chrome Plating
Chrome Plating Thickness:\u200b 0.02 - 0.03 mm
Surface Roughness (Ra):\u200b 0.3 - 0.5 μm
Straightness:\u200b ≤ 0.15 mm / 1000 mm
Roundness:\u200b ≤ 0.01 mm
Diaeter Range:\u200b 4, 5, 6, 7, 8, 10, 12 ... up to 35 mm
Length Range:\u200b 100 mm to 500 mm
Quantity:\u200b 1 piece
Primary Application:\u200b Cylinder piston rod, linear guide shaft, automation equipment components
