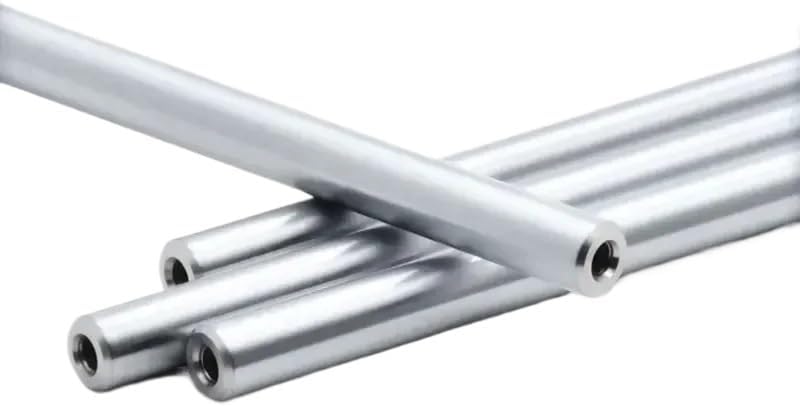

These professional hard chrome plated linear shafts feature precision ground surfaces and pre-tapped threaded ends, designed for high-precision linear motion systems. The industrial-grade hard chrome plating provides HRC60+ surface hardness, offering exceptional wear resistance and corrosion protection in demanding environments. Each shaft diameter is optimized with specific thread sizes: 6mm OD (M3 threads), 8mm OD (M4/M5), 10mm OD (M4/M5/M6), 12mm OD (M4/M5/M6/M8), 16mm OD (M4/M5/M6/M8), and 20mm OD (M6/M8). The threaded ends with 8-16mm depth allow for easy installation and precise alignment in linear guides, CNC equipment, 3D printers, and automation systems. With lengths available from 100mm to 550mm, these shafts accommodate various application requirements while maintaining straightness within 0.02mm per meter. for industrial automation, precision machinery, and any application requiring reliable linear motion with easy mounting solutions.
Technical Specifications:
Material: High Carbon Steel with Hard Chrome Plating
Surface Hardness: HRC60+
Outer Diameters: 6mm, 8mm, 10mm, 12mm, 16mm, 20mm
End Threads: M3, M4, M5, M6, M8 (varies by OD)
Thread Depth: 8-16mm
Length Range: 100-550mm
Straightness: ≤0.02mm/m
Features: Wear , corrosion , pre-tapped ends
Applications: Linear guides, CNC machines, 3D printers, automation equipment
Package: 2 pieces per set
