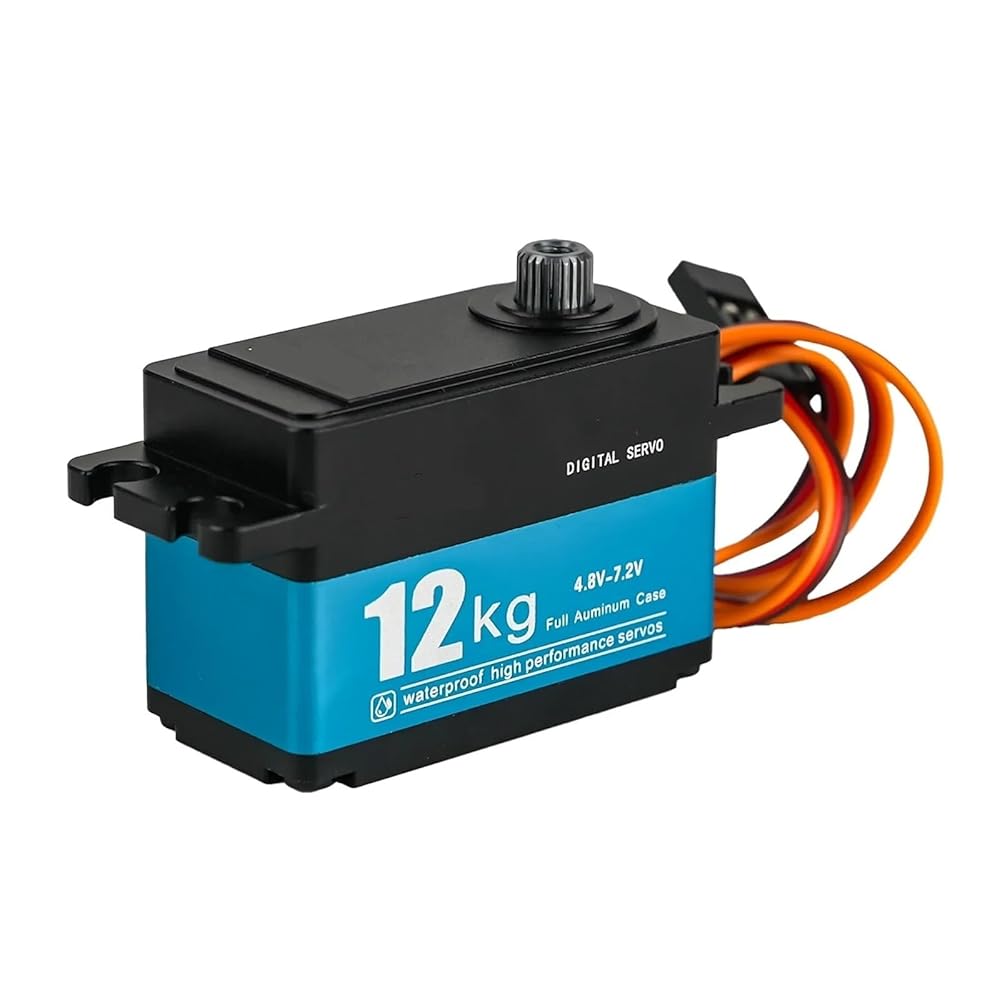

Steering Gear
Dimensions: 40.820.228.7mm
Weight: 60g ±5%

Limit angle: 180°

Speaker gear spline: 25T, diameter: 5.9mm
Speaker type: plastic, POM

Connecting wire: 320mm±5mm

specifications
Operating voltage: 4.8V to 7.2V
Idle current: mA

Operating current: 210mA, 260mA
Peak stall torque: 11.5kg.cm, 14.5kg.cm
Locked rotor current: 2000mA±10%, 2700mA±10%
Operating voltage range: 4.8-7.2V

Dimensions: 40.8*20.2*28.7mm

Model: FZ6623
