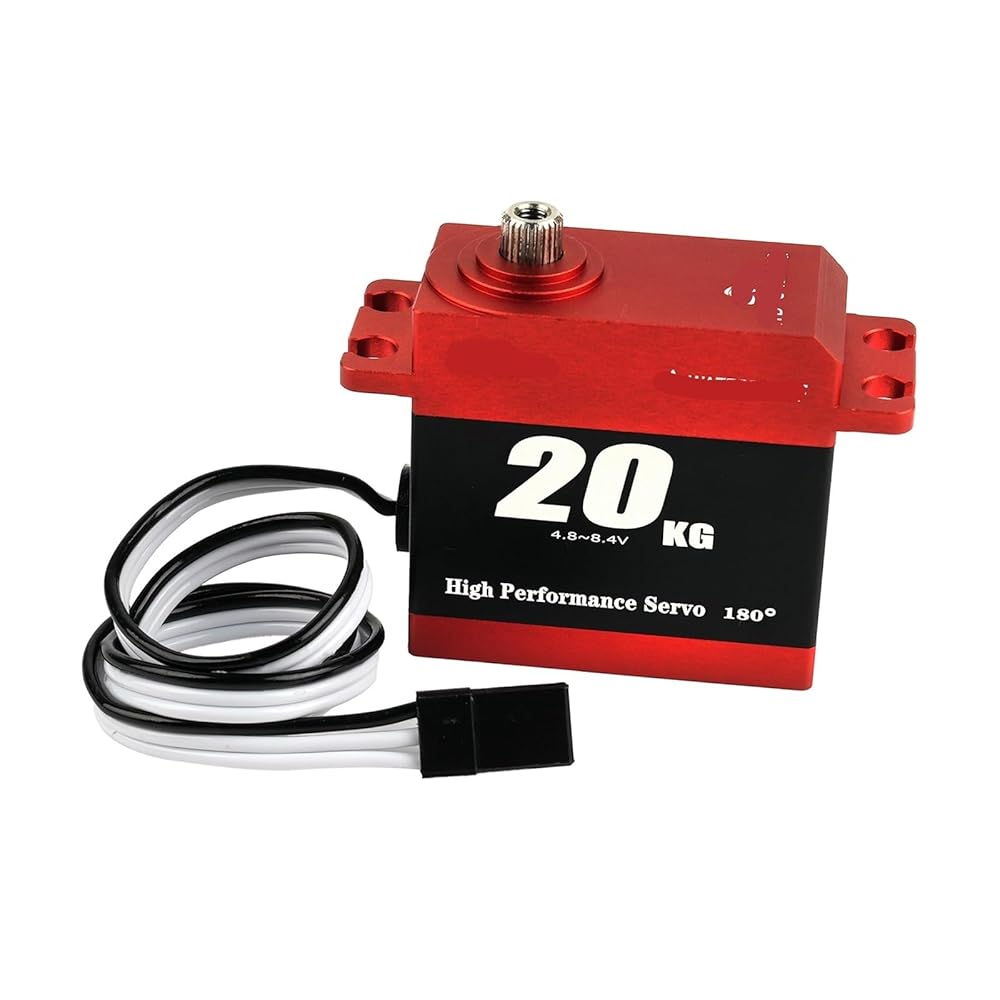

Steering Gear
Weight: 80g±5%
Gear Type: 5 Metal
Limit angle: 360°

Horn gear spline: 25T: 5.9mm4.0mm

Case: Aluminum alloy
Connecting wire: 320mm±5mm

4. specifications Operating voltage: 4.8V 8.4V

No-load speed: 0.14 seconds/60 degrees 0.10 seconds/60 degrees
Operating current: 230mA 410mA
Peak stall torque: 20.5kg.cm 23.8kg.cm
Locked rotor current: 2900mA±10% 4680mA±10%
Operating voltage range: 4.8-8.4V

Size: 40*20*39.6mm

Model: TD-9420MG
