مميزات خاصة

Industrial 5 Ports Gigabit switch, Onboard switch chip, 5-port 10/100/1000M non-blocking switch architecture. Supply voltage: 5~36V. Main chip: RTL8367N.
Full-duplex 10/100/1000M support for each port (the half-duplex 100M connection is only supported on 10/100M mode). Full/Half-duplex operations with IEEE 802.3x flow control and back pressure support. Allow forwarding 9216 bytes huge data packet on linear speed.

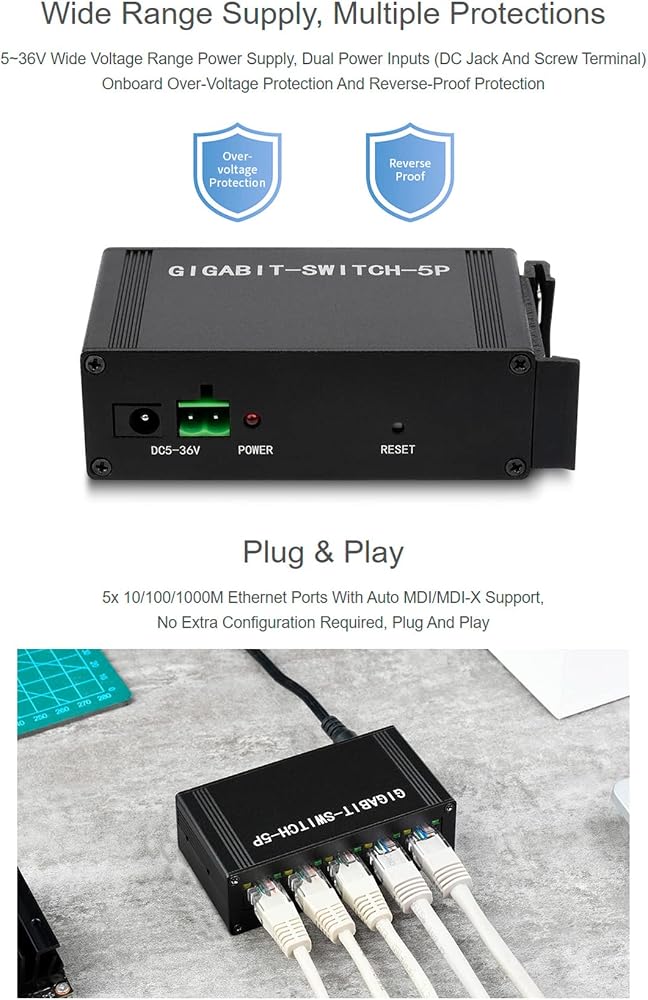

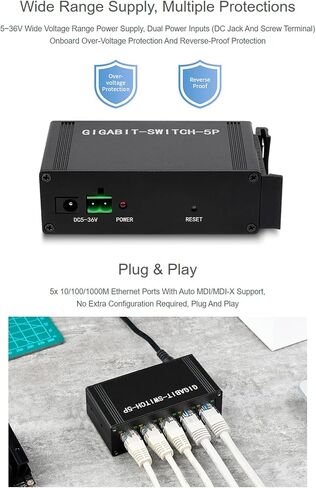

Wide range supply, Multiple protections: 5~36V wide voltage range power supply, dual power inputs (DC jack and screw terminal) onboard over-voltage protection and reverse-proof protection , effectively preventing damages caused by other high voltage power supply.
DIN rail mount support,compatible with 25mm standard rail. Plug & Play:5x 10/100/1000M Ethernet ports with Auto MDI/MDI-X support, no extra configuration required, plug and play.

وصف

Features

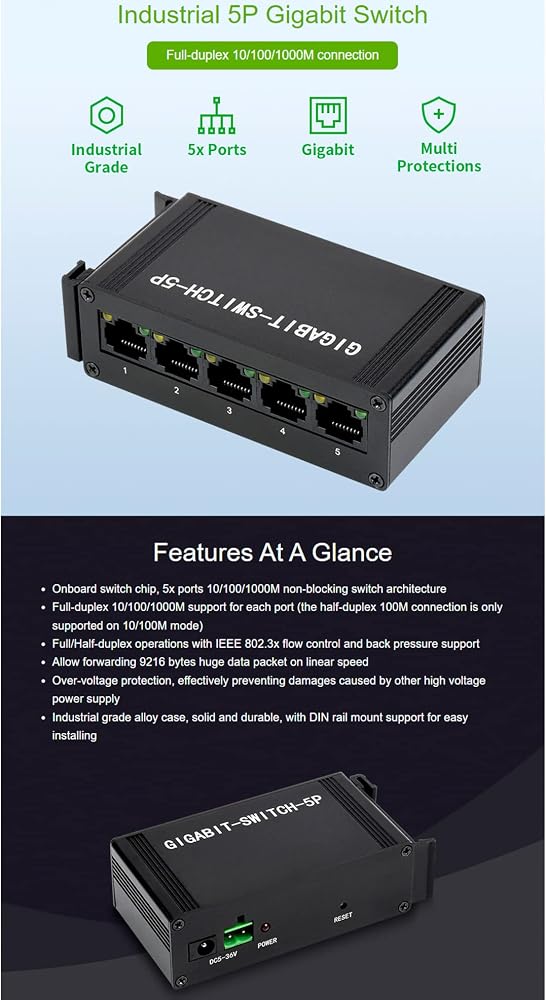

Onboard switch chip, 5x ports 10/100/1000M non-blocking switch architecture
Full-duplex 10/100/1000M support for each port (the half-duplex 100M connection is only supported on 10/100M mode)
Full/Half-duplex operations with IEEE 802.3x flow control and back pressure support
Allow forwarding 9216 bytes huge data packet on linear speed
Over-voltage protection, effectively preventing damages caused by other high voltage power supply

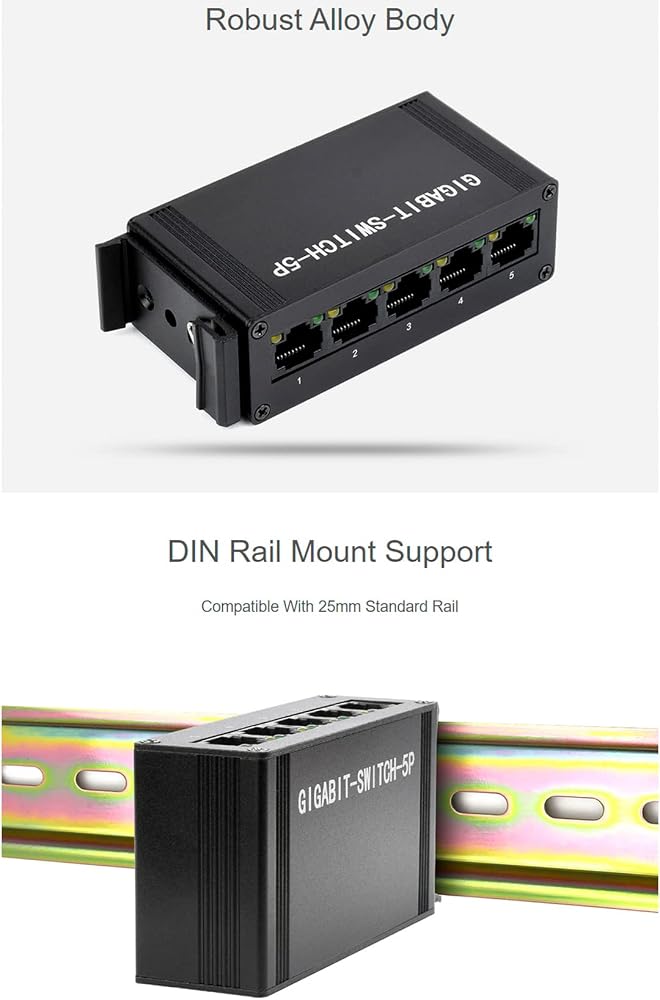

Industrial grade alloy case, solid and durable, with DIN rail mount support for easy installing

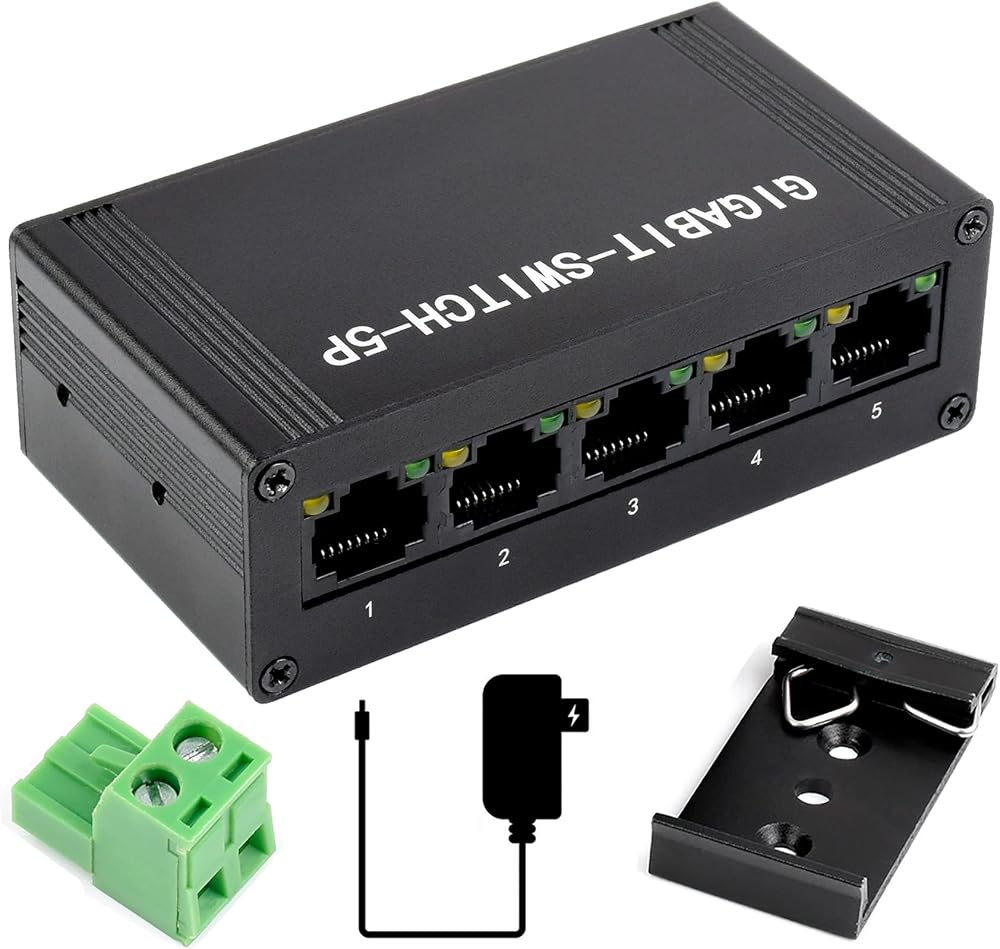

Package Content
Gigabit-Switch-5P x1
Power supply screw terminal x1
12V 1A power adapter x1
