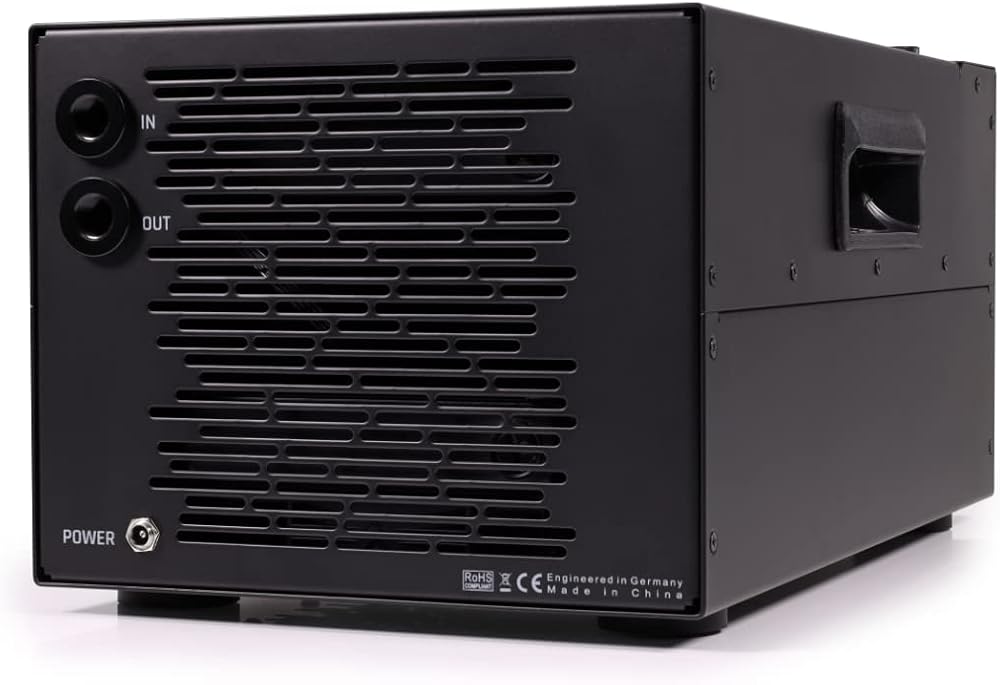

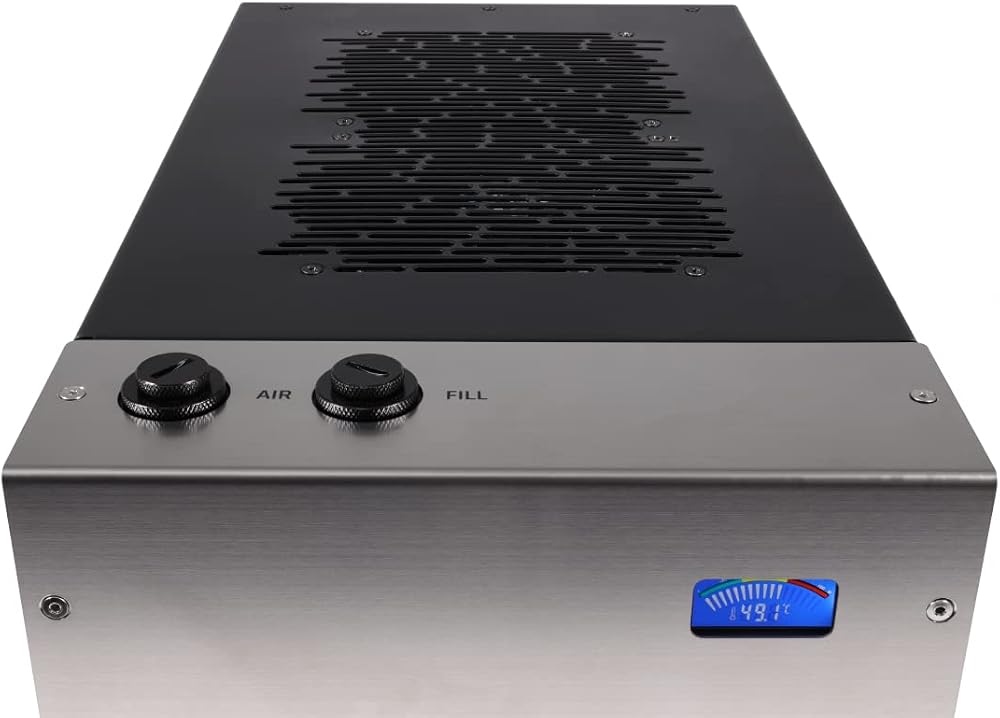

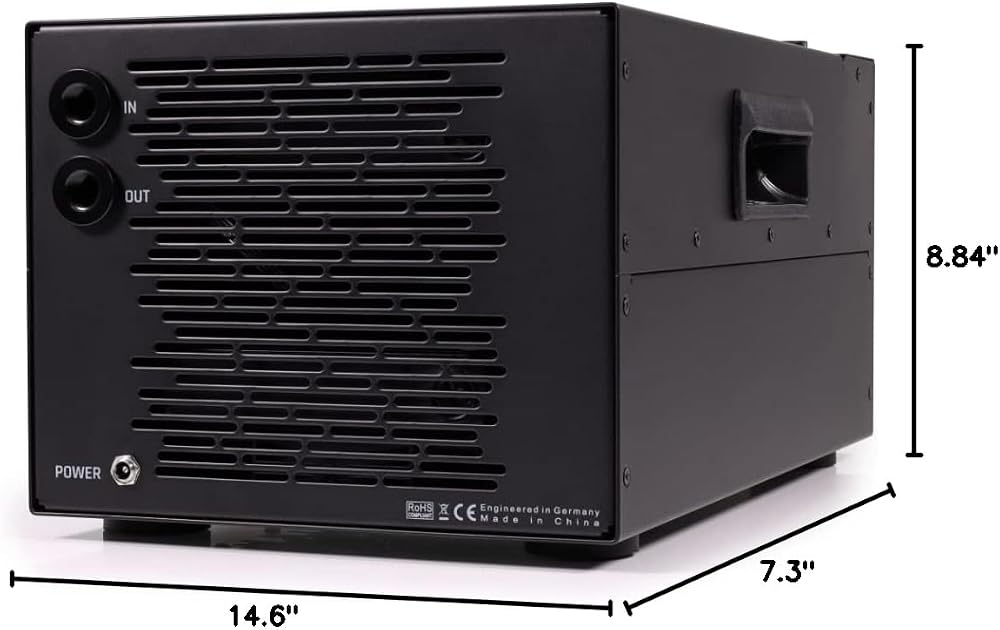

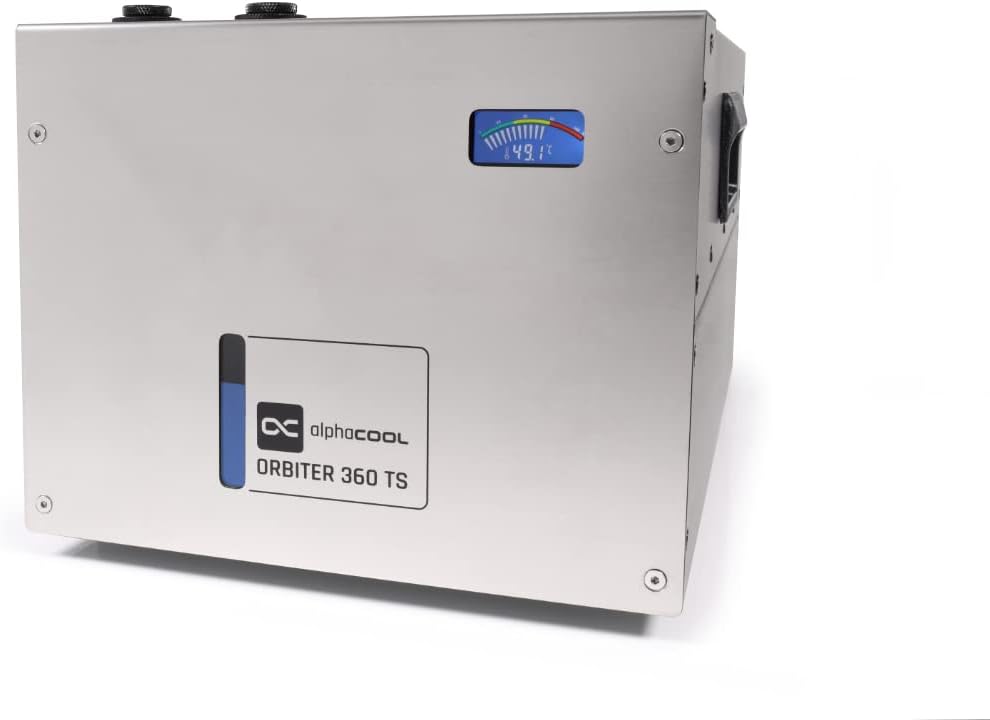

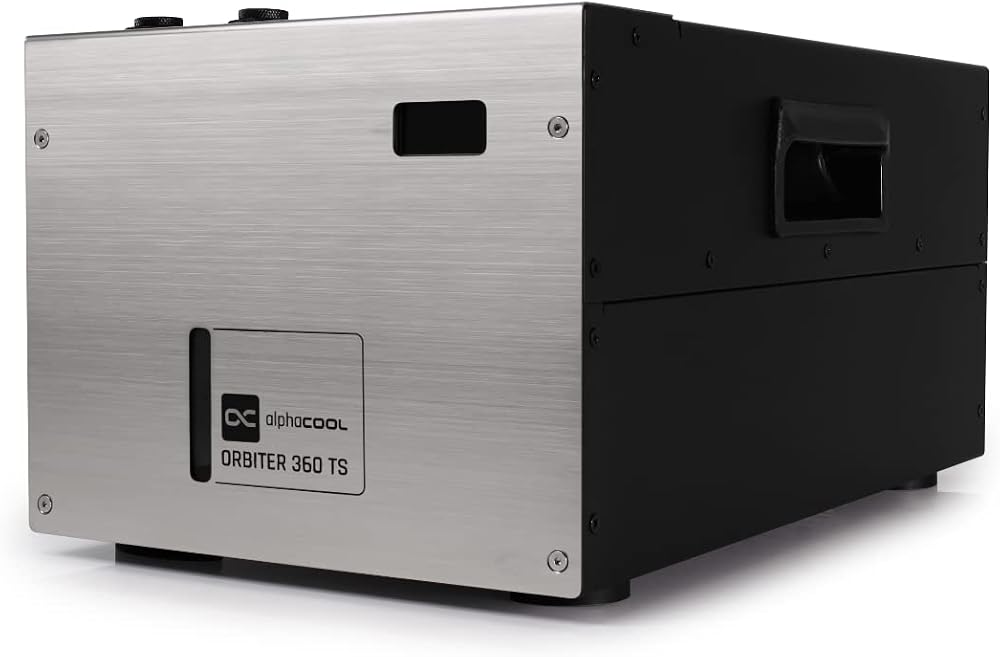

The Alphacool ES Orbiter 360 TS is an external cooling system designed for industrial use. It is compact and powerful. Cooling is provided by two HPE-30 NexXxoS full copper radiators with a total cooling surface of 360mm. The ES Orbiter 360 TS can dissipate waste heat of up to 1500 watts. Powerful cooling! The radiators are 30mm thick and are used in the HPE version with a compacted structure of the cooling channels. This means more coolant flows through the radiator and the cooling performance is significantly improved. The three in-house Core 120mm fans with a long life expectancy ensure optimal ventilation of the radiators. The fans and the pump are controlled and monitored by the ES Guardian Powerfan Hub. The temperature can be checked on the front of the Orbiter using the color display. Compact design The ES Orbiter is kept simple and has two recessed handles that make it easier to lift. The Alphacool ice compartment serves as an expansion tank and contains a powerful third-generation VPP755 pump. Thanks to the pump, almost any circuit can be operated reliably. Technical data ES Orbiter Dimensions (L x W x H): 378.80 x 224.46 x 185.30mm Radiator: Material copper Hose: Material TPV (EPDM) Radiator Fins Per Inch: 18 Max. cooling capacity: 1500W Tension: 12V DC Total power consumption: 17.7W Permitted water pressure: 0.8 bar Fillport: 1x G1/4" Water connections: 2x G1/4" Air balance: 1x G1/4" Permitted operating temperature (PC water cooling): 60 degrees C Permitted operating temperature (industrial applications): 75 degrees C Expansion tank: volume 445ml Pump: Flow 340l/h Pump: max. delivery head 3.125m Fan: Rated speed 2500 rpm Display: Multi-colored, optionally in C or Fahrenheit Model: 11932
