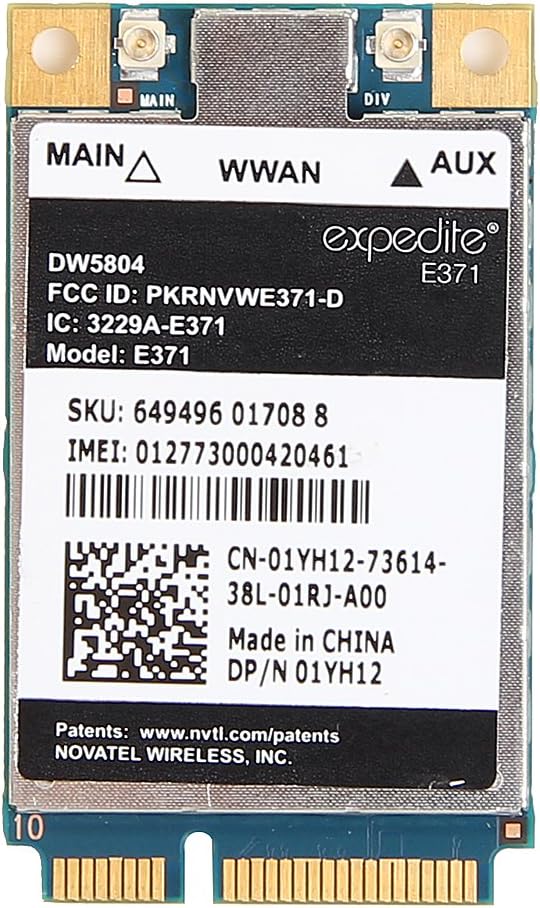

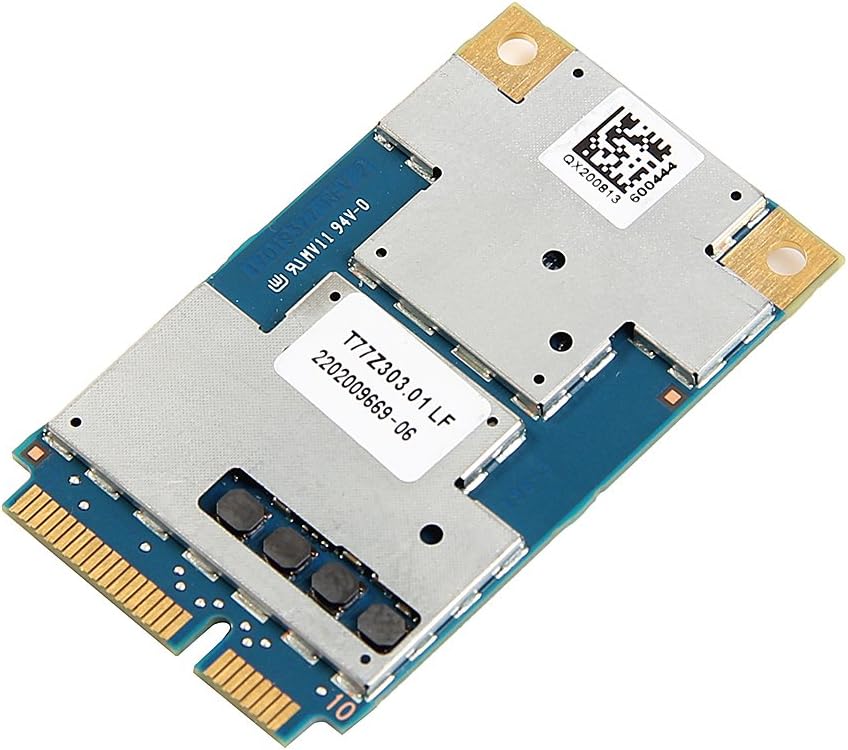

Dell Wireless DW5804/E371 4G (LTE-3G) PCI-E WWAN Card for DELL DP/N 01YH12

Novatel Expedite wireless wwan E371 DW5804 for DELL DP/N 01YH12: Novatel Wireless' ExpediteE371 PCI Express Mini Card is an embedded module that can be integrated into laptops and other devices for 3G/4G mobile data applications. Powered by the Qualcomm MDM9200 chipset, the Expedite E371 offers high performance to the user on LTE 700 MHz and AWS bands with global fallback to HSPA+/UMTS

The small Expedite E371 module leverages the LTE and HSPA+/UMTS networks. Switching between networks enables your customers to work, play,and stay connected anytime, anywhere worldwide

Technology/Bands
LTE AWS, 700 MHz (B17) (with MIMO)
HSPA+/UMTS 850/AWS/1900/2100 MHz
GPRS 850/900/1800/1900 MHz

Data Speeds
100 Mbps Download
50 Mbps Upload

Advanced Technologies
2 x 2 MIMO - Enables industry leading data speeds
Receiver Equalization - improves
performance in noisy and highly mobile environments
Receiver Diversity - improves performance at cell edges and in buildings
Dimensions and Weight
PCI Express Mini Card Form Factor - F2
Size - 51 x 30 x 4.4 mm (H x W x D)
Weight - 11 g
Host Interface
PCI Express Mini Card
Antenna - 50 0hm compatible
Power consumption
Voltage 3.0-3.6 v
Optimized for low current drain
Environmental
Spec compliant*
Operating temperature: -30ºC to 65ºC(-4ºF to 140ºF)
Storage temperature: -40ºC to 85ºC (-40ºF to 185ºF)

Supported OS: Windows 10 64 bit, Windows 8.1, Windows 7, Windows Vista, Windows XP
